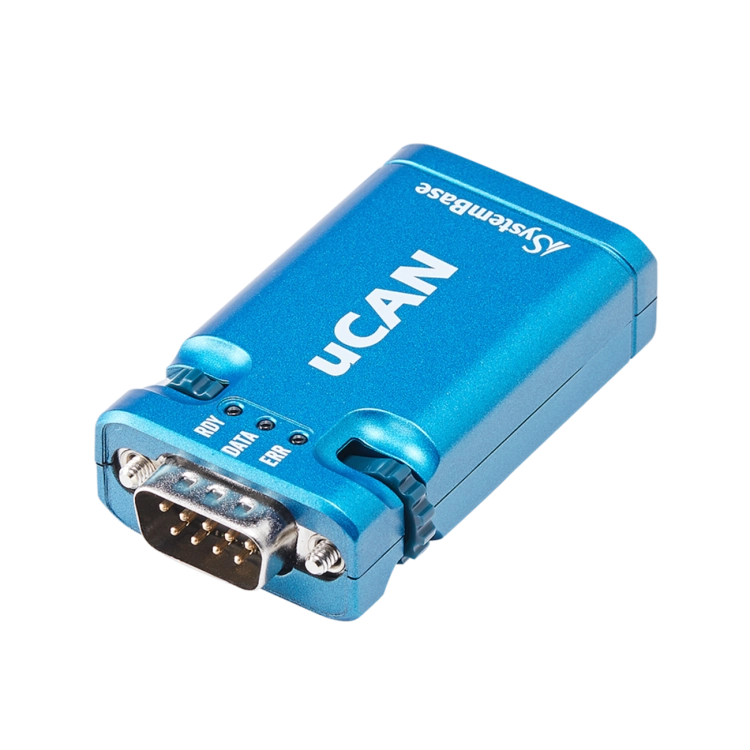

uCAN V3.0 is a converter that connects to a CAN bus via USB to transmit and receive CAN frames. Through CANView, an integrated Windows application with a GUI environment, users can easily configure and test the device. uCAN V3.0 is a USB to CAN converter that can be used without complex configuration, making it suitable for control, monitoring, and data communication with connected devices.
CANView, a GUI-based Windows utility program provided by SystemBase, is a multi-function utility that can be used for configuring, testing, and monitoring uCAN V3.0. Users can connect the product and easily change settings with just a few clicks. It can also be used for testing by transmitting user-defined data to check connection and operation with other CAN devices.
In addition, received data can be monitored and saved for future data analysis.
SystemBase provides CommandLibrary for advanced users or developers who want to utilize CAN, allowing them to access specific advanced functions.
By using uCAN V3.0 with user-specific functions, users can apply customized operations such as data transmission and reception, saving, loading, booting, and factory reset within their own specialized applications.

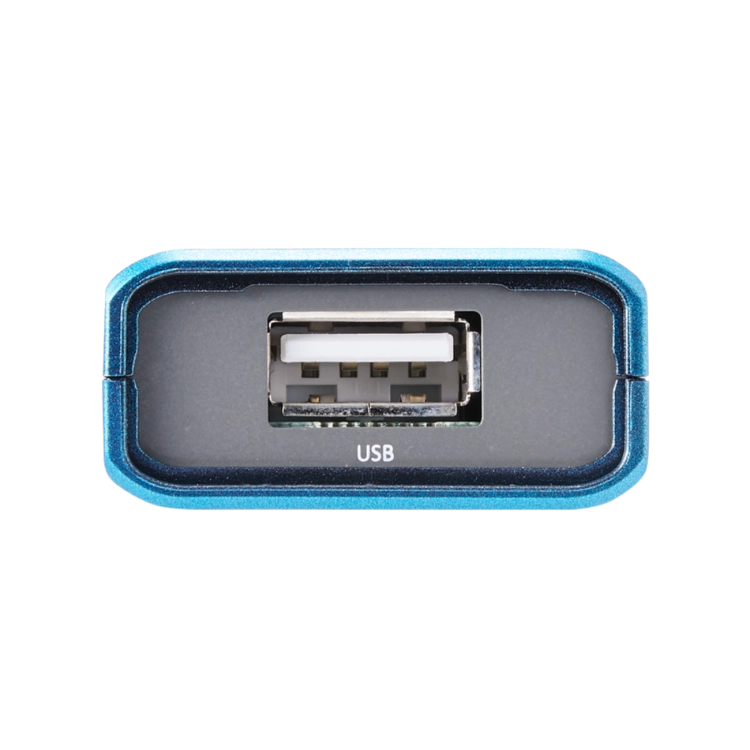

| Interface | USB Type A |
| Cable Length / Diameter | 1200mm / Φ4.8mm |
| Specifications | USB Specification Rev 2.0, High-Speed |

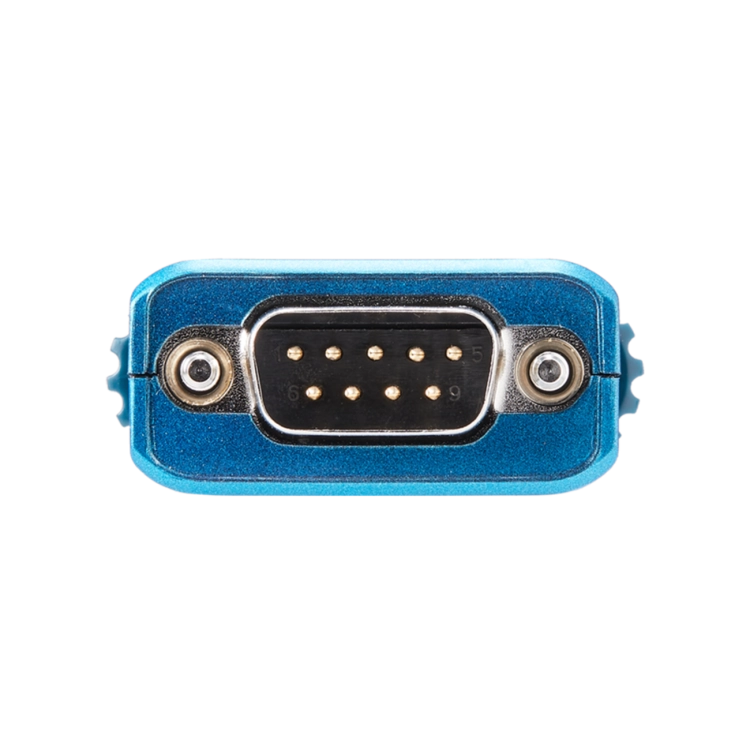

| Interface | DB9 Male |
| Number of Ports | 1 Port |
| CAN Communication Standard | CAN 2.0A & 2.0B |
| Maximum Communication Distance | 1km |
| Maximum Communication Speed | 1Mbps |
| Signal | CAN_H, CAN_L, VDD, GND |
| Utility | CAN View |
| Operating System | Windows 7 or later Windows Server 2008 or later |
| LED | RDY, DATA, ERR |
| Power | USB VBUS (DC 5V 500mA), Power Consumption: 0.6W |
| Dimensions | 64.3(L) x 34.9(W) x 16.5(H) mm |
| Weight | 26.1g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5~95% non-condensing |
| Certifications | CE, KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
