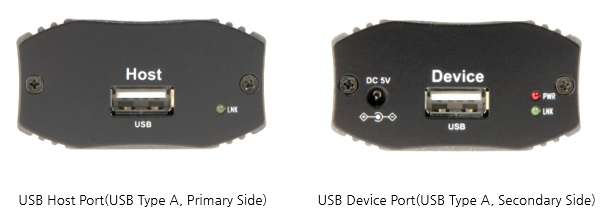

The BASSO-1010UU/ISO is primarily powered through the host-side USB port.
The included DC adapter (5V 1A) is intended to provide stable power to connected USB devices that require relatively high-power consumption, such as USB external hard drives.
When the DC adapter is connected, the internal power switch changes the power supply path from the Host side to the Device side. In this state, the connected USB device is recognized and operates normally.
When the DC adapter is removed, the power supply path switches back from the Device side to the Host side, and during this transition, the USB connection status is temporarily reset. As a result, the Host may recognize the USB device as disconnected. To resume normal operation, reconnect the Host-side USB cable so that the USB device can be recognized again.
The BASSO-1010UU/ISO is designed with an internal power switch to automatically select the appropriate power source according to the power requirements of the connected USB device, ensuring stable operation.
