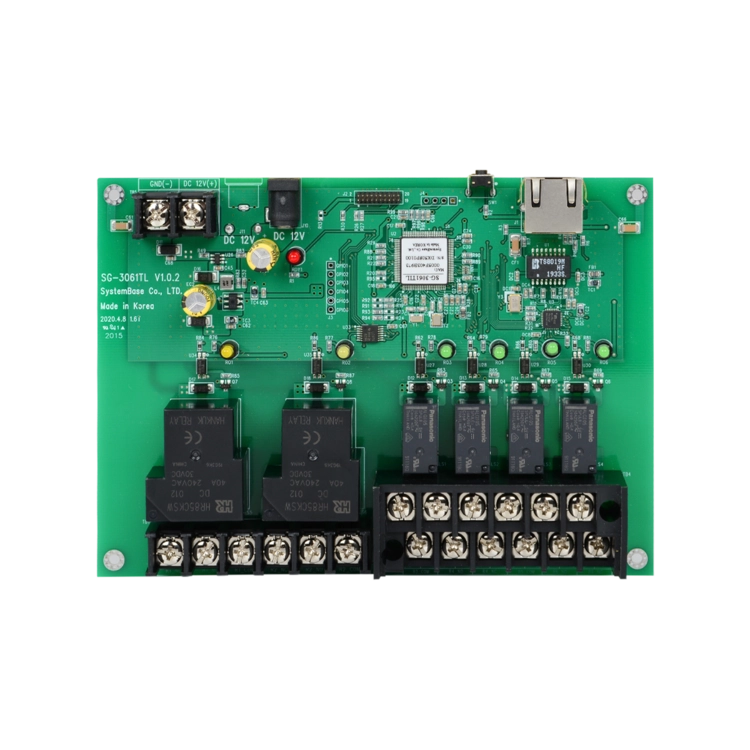

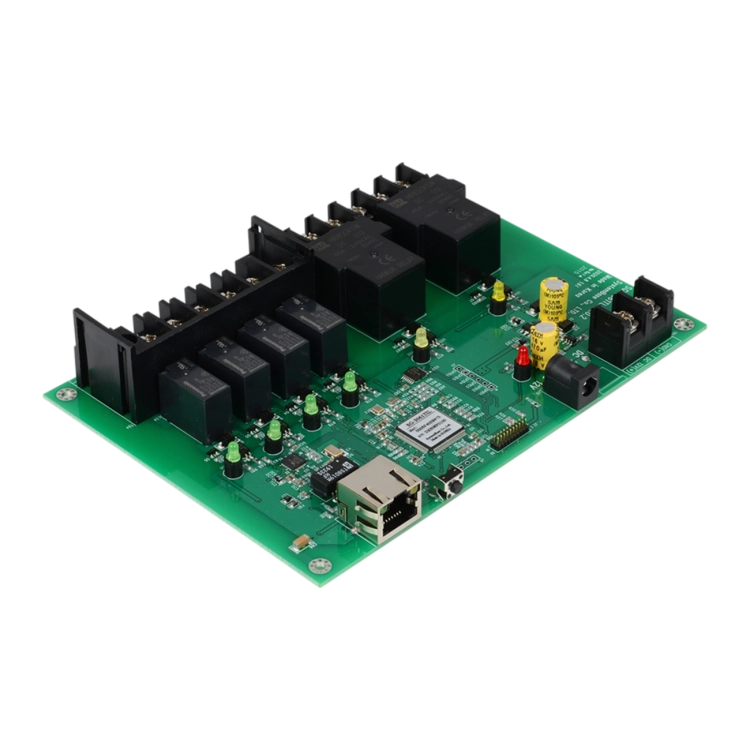

SG-3061TIL is a device server module that allows relay ports to be connected and used anytime, anywhere over a network. Connected through an Ethernet port, SG-3061TIL provides six contact relay ports for controlling external devices, enabling signal transmission and circuit switching functions. It also provides VCP (Virtual Com Port), allowing external devices to be controlled through widely used serial utilities without modifying existing programs. SystemBase SG-3061TIL is a versatile device server module that can be used for control and automation in various internal facilities such as power management in hospitals and factories, access control systems in buildings, and external facilities such as parking lots.
Using SG-3061TIL, remote devices connected over a network can be easily controlled anytime, anywhere.
SG-3061TIL is a compact device server module designed with the characteristics of unstable industrial environments in mind. By applying protection measures against overvoltage and overcurrent and using highly reliable components, it provides both excellent reliability and high performance.
SystemBase provides various free utility programs for use with SG-3061TIL.
COM Port Redirector : A virtual serial port program that enables users to easily create virtual serial ports from anywhere and provides serial communication functions without complex configuration or software changes.
SGConfig™ : Provides functions to configure the network environment of SG products and the operating environment of each serial port.
| Protocol | TCP Server/Client, UDP Server, ICMP, DHCP, HTTP, COM Redirector, Modbus TCP |
| LAN | 1 x 10/100Mbps RJ45 port (Auto-MDIX support) |
| Number of Ports | 6 Relay Ports |
| AC/DC | AC/DC Relay (240VAC/30VDC [NO 40A, NC 30A]) 2CH AC/DC Relay (250VAC/30VDC [NO 5A, NC 3A]) 4CH |
| O/S | RTOS |
| Management Tools / Configuration | Web, SGConfig™ |
| O/S Support | Windows 7 or later, Windows Server 2008 or later |
| LED | RDY(Ready), Relay(AC: Yellow ×2EA, DC: Green ×4EA) |
| Power Input | DC 12V, Power Consumption 5W, outer diameter 5.5mm, inner diameter 2.1mm |

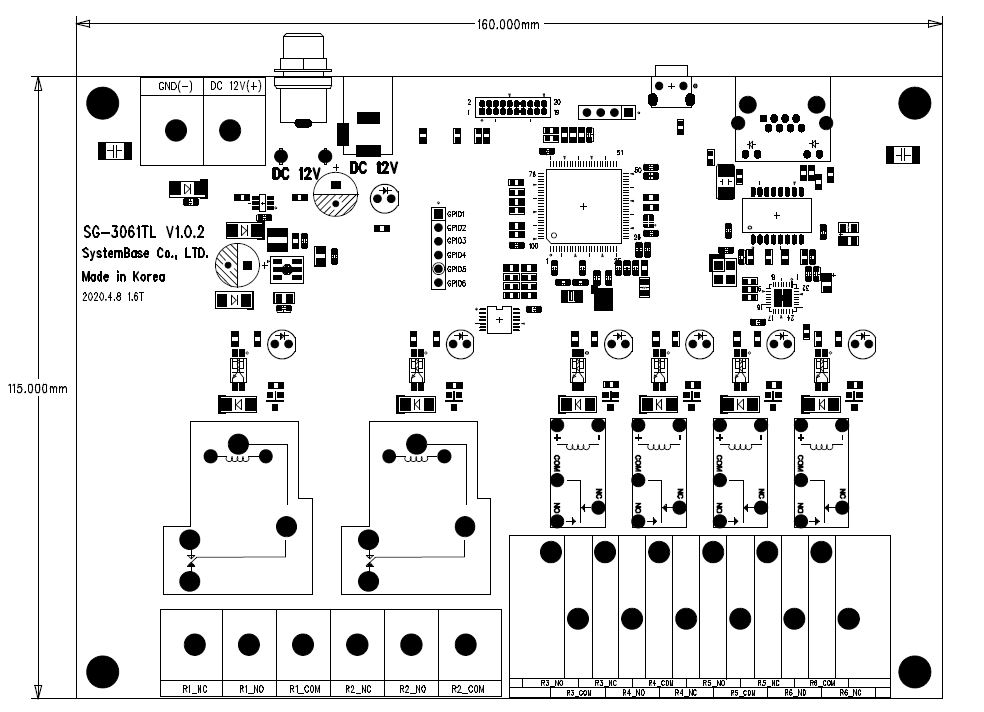

| Dimensions | 160(W) x 115(L) x 29(H) mm |
| Weight | 244g |
| Operating Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
| Humidity | 5 to 95% non-condensing |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
