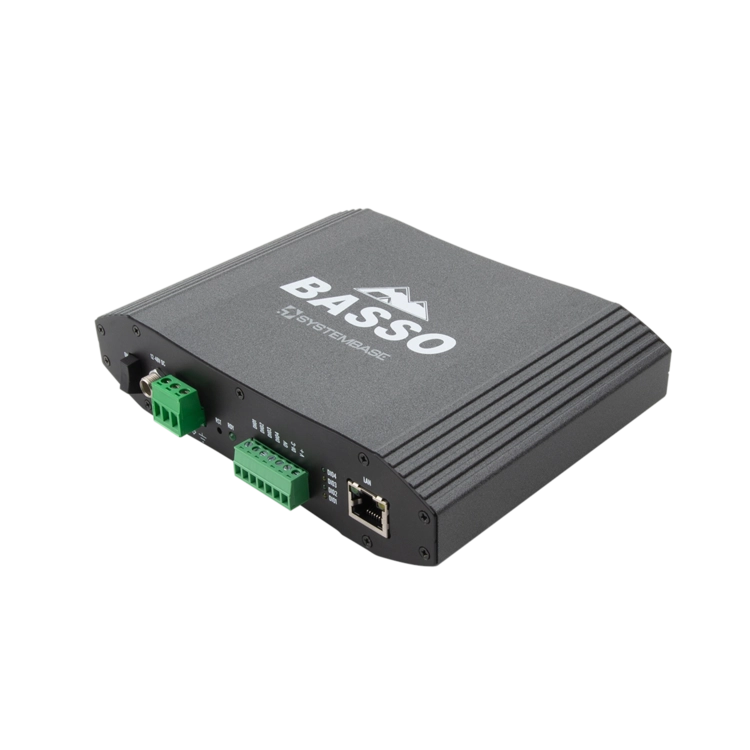

SG-3081TIL is a product that allows users to control power and switching of remote equipment anytime, anywhere through relays via an Ethernet (LAN) port. It also enables users to measure the operating status of contact switches and sensor equipment remotely using Digital Input/Output ports. Through various connections such as status monitoring, signal control, and MODBUS, it is compatible with a wide range of I/O products in network-connected environments, including parking control, power control for factory equipment, building access and barrier gate control, and kiosk power control. External devices can be easily controlled using the Modbus protocol.
The key feature of SG-3081TIL is that relays can be directly controlled or status information can be checked through DIO input/output ports. Relay contacts can be turned ON/OFF by directly applying Digital Input signals, and the current ON/OFF status of the relay can be checked through Digital Output signals.
SystemBase SG-3081TIL provides a COM Redirector program to support remote control, monitoring, and sensor control of devices connected over a network (TCP/IP), allowing connected external devices to be used immediately without modifying existing programs.
Remote equipment connected over a network can be easily controlled anytime, anywhere using SG-3081TIL.
SG-3081TIL is designed with the characteristics of unstable industrial environments in mind. It applies protection measures against overvoltage and overcurrent and uses highly reliable components to provide both excellent reliability and high performance.
SystemBase provides various free utility programs for use with SG-3081TIL.
COM Port Redirector : A virtual serial port program that allows users to easily create virtual serial ports from anywhere and provides serial communication functions without complex configuration or software changes
SGConfig™ : Provides functions to configure the network environment of SG products and the operating environment of each serial port
| LAN Port | 1 x 10/100Mbps RJ-45 Port |
| Network Connection | Static IP, Dynamic IP |
| Protocol | TCP, UDP, ICMP, DHCP, HTTP, IPv4 |
| Number of Ports | 4 Port Relay |

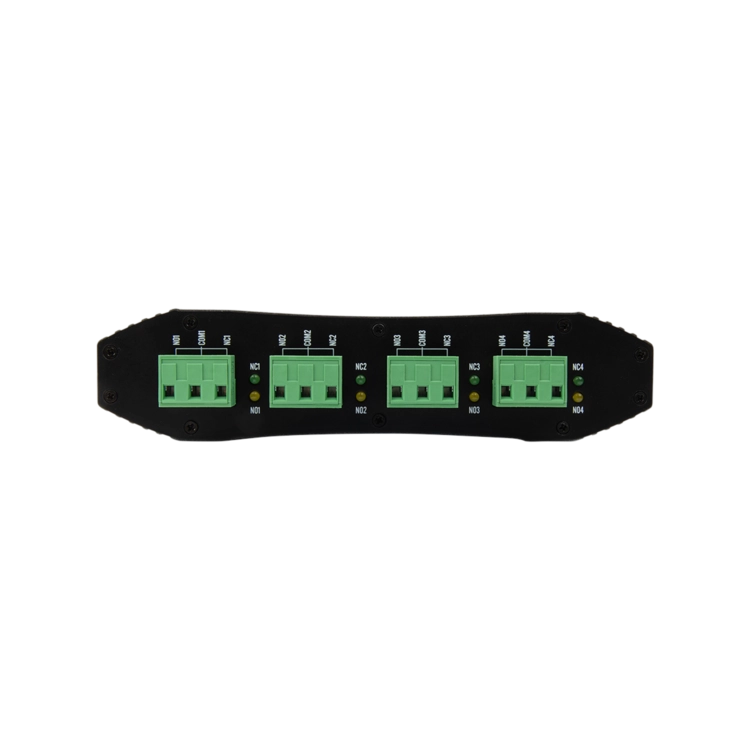

| Relay | AC/DC Relay (NO/NC, 250VAC/30VDC 16A) |
| Relay Life | Over 100,000 operations at rated load (electrical life) |
| Port | 4 Channels (Wet Contact) |
| Mode | DI or Event Counter (1KHz) |
| Input Range | 5 to 24VDC (Terminal Block) |
| Port | 4 Channels (Sink) |
| Mode | DO or Pulse Output (500Hz) |
| Output Current Rating | 500mA per Channel |
| Maximum Voltage | 12 to 24VDC (Terminal Block) |
| ESD | ±15kV ESD(HBM) |
| Standards | KS C 9610-4-2(ESD) KS C 9610-4-4(EFT) KS C 9610-4-5(Surge): 350W |
| Power Input (Option) | 12 to 48V 1A or higher DC Input Power Consumption: Max. 6.0W / Operating: 2.9W / Standby: 1.0W |

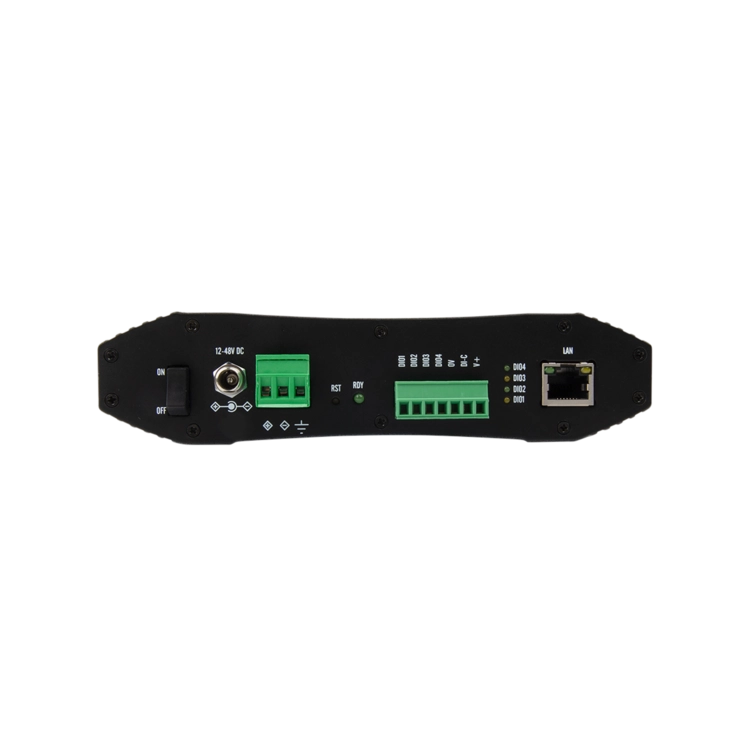

| Power Connector | External: Φ5.5mm, Internal: Φ2.1mm Terminal Block (VCC/GND/FG), non-polarity |

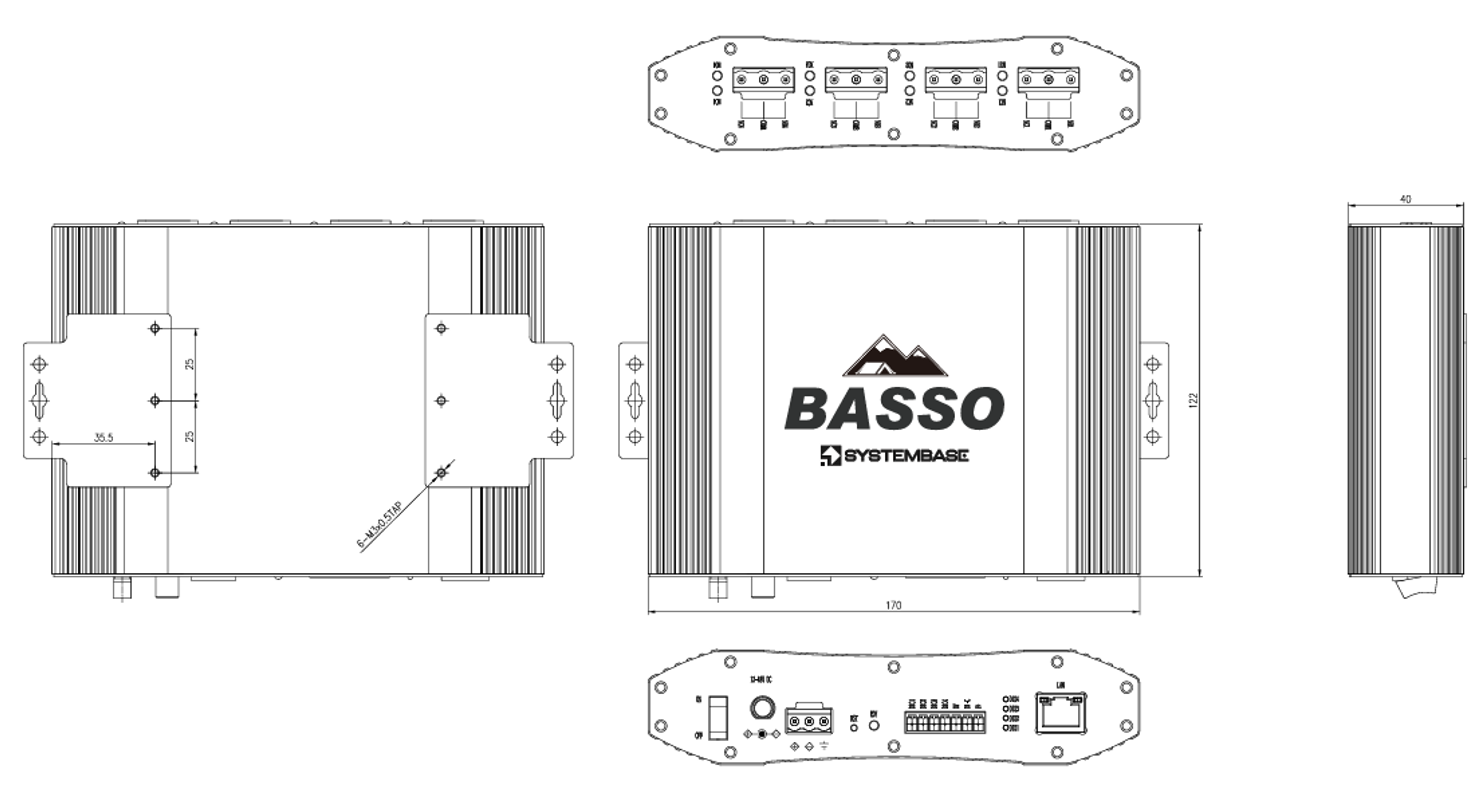

| Dimensions | 170(W) x 122(L) x 40(H)mm |
| Weight | Gross Weight: 940g, Product Weight: 580g |
| LED | RDY(Green), NC(Green), NO(Yellow) |
| MTBF | 181,019hrs |
| Less than 3 seconds | System configuration mode |
| 3 seconds or longer | Factory reset |
| Protocol | VCP(COM Redirector), TCP(Server/Client), UDP, Modbus TCP, ICMP, DHCP, HTTP |
| Management Tool | Web, RelayConfig |
| Configuration | Web, SGConfig, RelayConfig |
| O/S Support | Windows 7 or later |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 90% non-condensing |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
