BASSO-1040DT/DIO is a multifunctional product that converts digital input and output devices used by connecting to contact switches, sensors, measuring instruments, or control devices widely used in industrial sites into RS232/RS422/RS485 communication standards. In industrial sites such as factories, digital input and output devices are used in various areas such as communication with PLCs and the control and measurement of machines and facilities through PLCs. BASSO-1040DT/DIO is a multifunctional device equipped with general-purpose serial standards such as RS232/RS422/RS485 and the Modbus protocol, providing reliable communication functions for various user environments.
Connected to serial devices using RS232, RS422, and RS485 standards, it enables remote sensors and measuring devices to be easily used for communication, control, and monitoring. It can effectively integrate digital input/output devices and serial communication equipment in various industrial automation environments.
Designed with the characteristics of unstable industrial environments in mind, BASSO-1040DT/DIO applies protection functions against electrical shocks such as overvoltage entering through the input/output ports and serial ports. By using highly reliable components, it provides both excellent reliability and high performance.
The product is provided with BASSO-IO Config, a Windows utility program for configuring BASSO-1040DT/DIO. Through the utility, users can easily and conveniently configure serial communication settings and Digital I/O settings, enabling more efficient field application and maintenance.

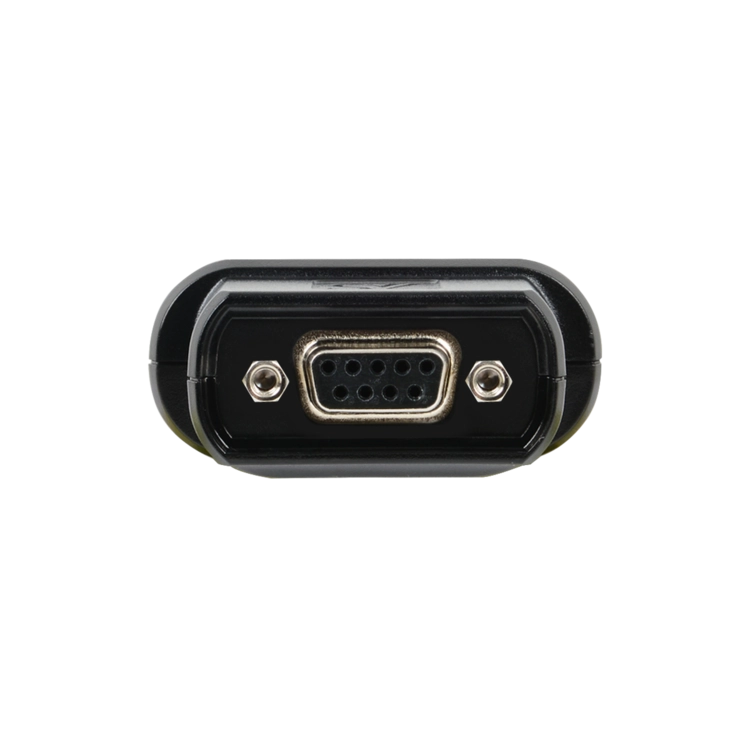

| Interface | RS232, RS422, RS485 |
| Protocol | Modbus Serial |
| Serial Port | DCE (DB9 Female) |

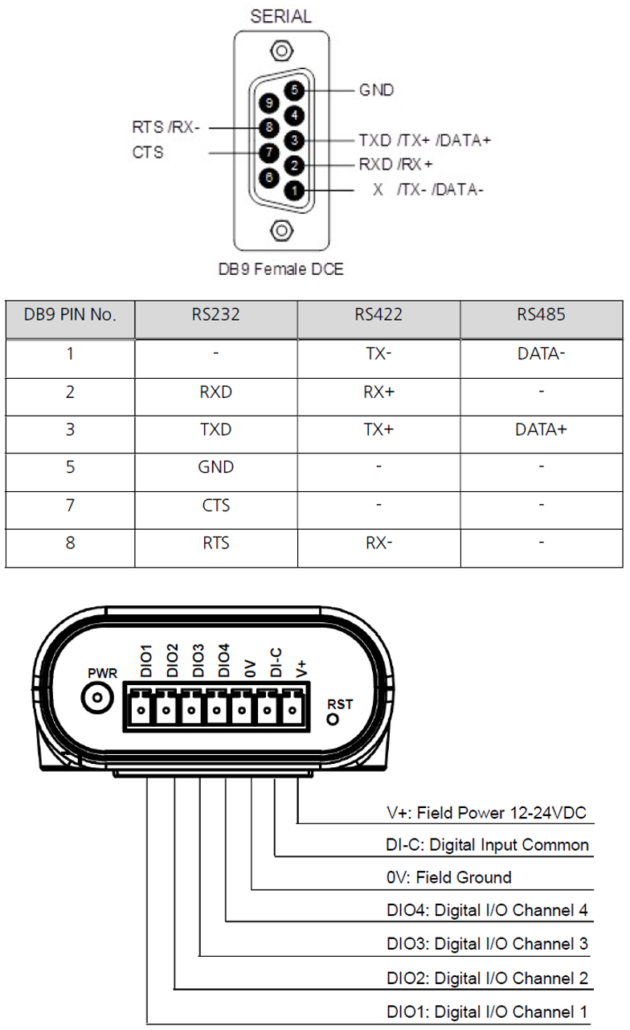

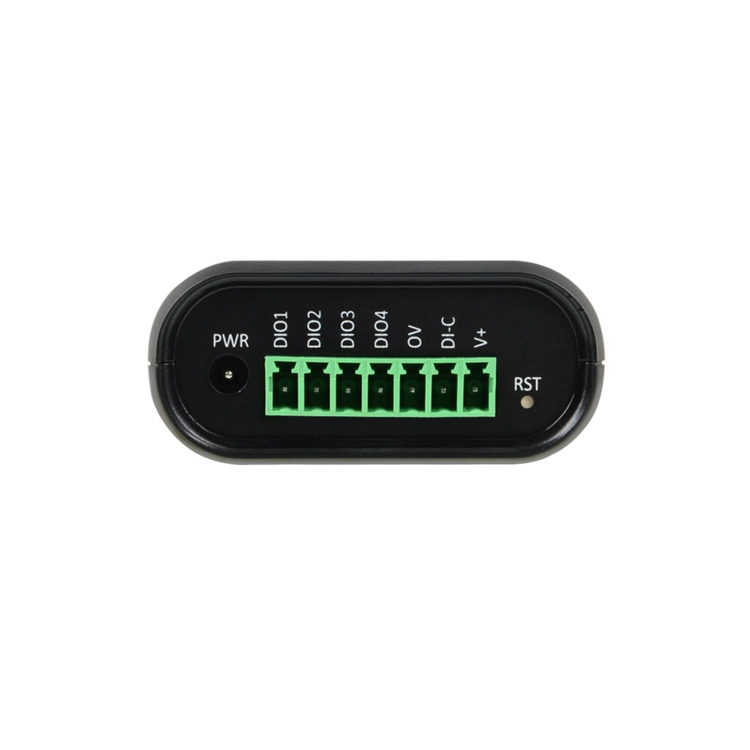

| Signal Lines | RS232 : TXD, RXD, RTS, CTS, GND RS422 : TXD+, TXD-, RXD+, RXD- RS485 : TRXD+, TRXD- |
| Data Bits | 8 |
| Stop Bits | 1, 2 |
| Baud Rate | Up to 921.6Kbps |
| Protection | Up to ±15kV ESD Protection |
| I/O Select | DI 2ch + DO 2ch, DI 4ch, or DO 4ch |
| Digital Input | 4 Channels (Wet Contact) |
| Digital Input Mode | DI or Event Counter (1kHz) |
| Digital Output | 4 Channels (Sink) |
| Digital Output Mode | DO or Pulse Output (500Hz) |
| Output Current Rating | 500mA per Channel |
| Isolation | 1500Vrms for 1 minute |
| Power | 12 ~ 24V (Terminal Block) |
| Power | DC 5V ~ 24V, DC-Jack, Power Consumption: 120mW [DC 5V/1A Adapter, Power Consumption: 120mW, outer diameter 3.47mm, inner diameter 1.35mm,
|

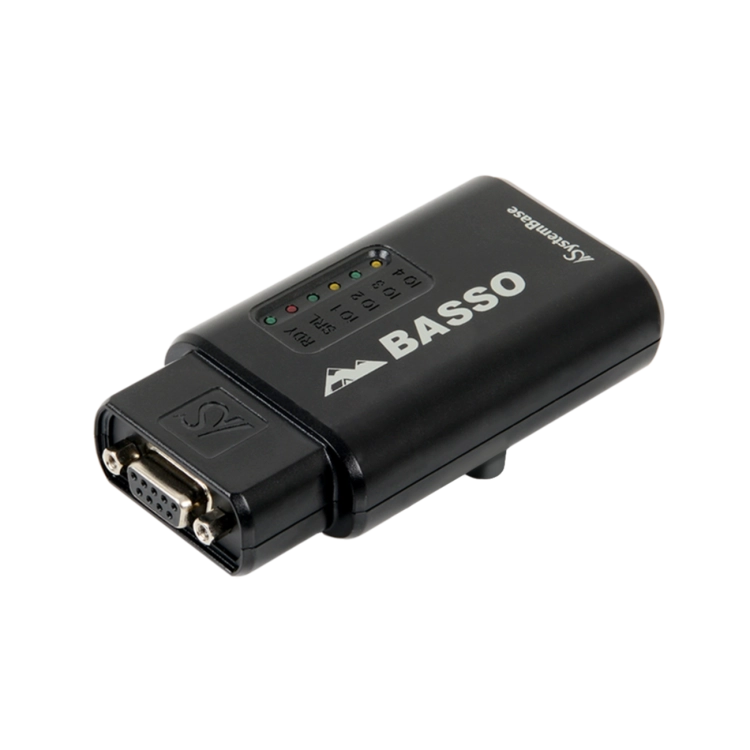

| LED | RDY(Green), SRL(Red), DIO1&3(Green), DIO2&4(Yellow) |

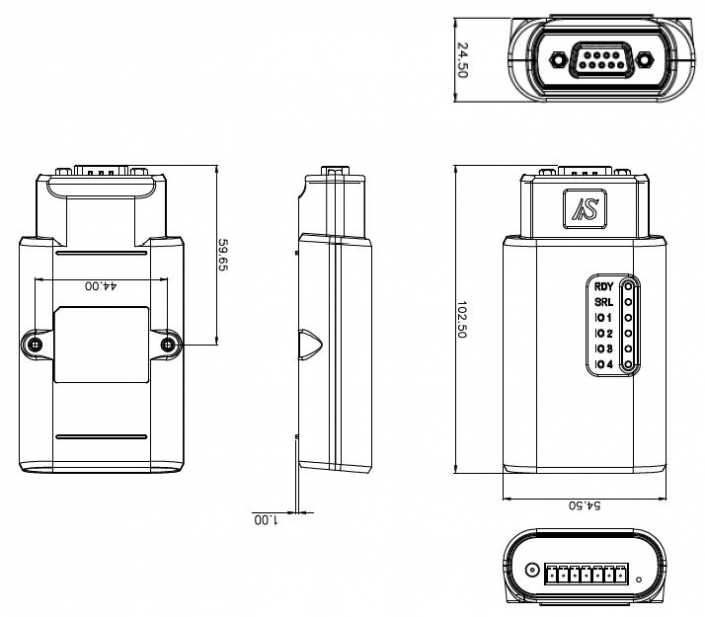

| Dimensions | 102.5(W) × 54.5(L) × 24.5(H) mm |
| Weight | 68g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 90% non-condensing |
| Certifications | KC, CE |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
