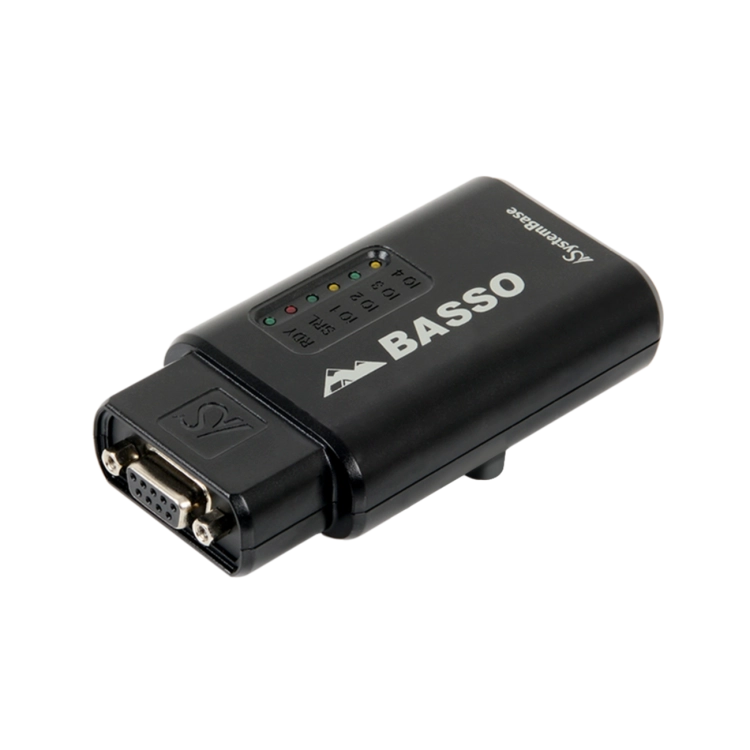

BASSO-1040DT/AI (BASSO-AI) is a multifunctional product that converts real-world data transmitted in the form of voltage and current, such as temperature and pressure sensor data measured in industrial sites, into RS232/RS422/RS485 communication standards. In industrial sites such as factories, various analog data is generated for monitoring, measurement, and control, and is processed in various forms for collection and transmission. BASSO-1040DT/AI is a multifunctional device equipped with general-purpose serial standards such as RS232/RS422/RS485 and the Modbus protocol, providing reliable communication functions for various user environments.
Connected to serial devices using RS232, RS422, and RS485 standards, it enables remote sensors and measuring devices to be easily used for communication, control, and monitoring. It provides a stable communication environment in various industrial environments, including industrial automation, facility monitoring, and data acquisition systems.
Designed with the characteristics of unstable industrial environments in mind, BASSO-1040DT/AI applies protection functions against electrical shocks such as overvoltage entering through the analog input ports and serial ports. By using highly reliable components, it provides both excellent reliability and high performance.
A free utility program is provided for use with BASSO-1040DT/AI.
BASSO-IO Config : A simple Windows configuration utility that provides easy and convenient configuration functions.
| Interface | Selectable RS232, RS422, RS485 (software configuration) |
| Protocol | Modbus Serial |

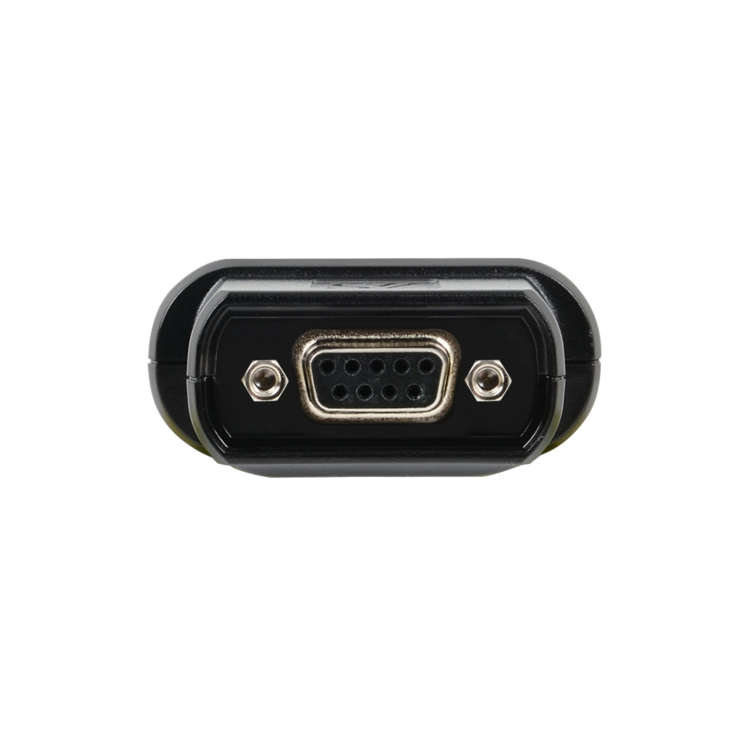

| Serial Port | DCE (DB9 Female) |

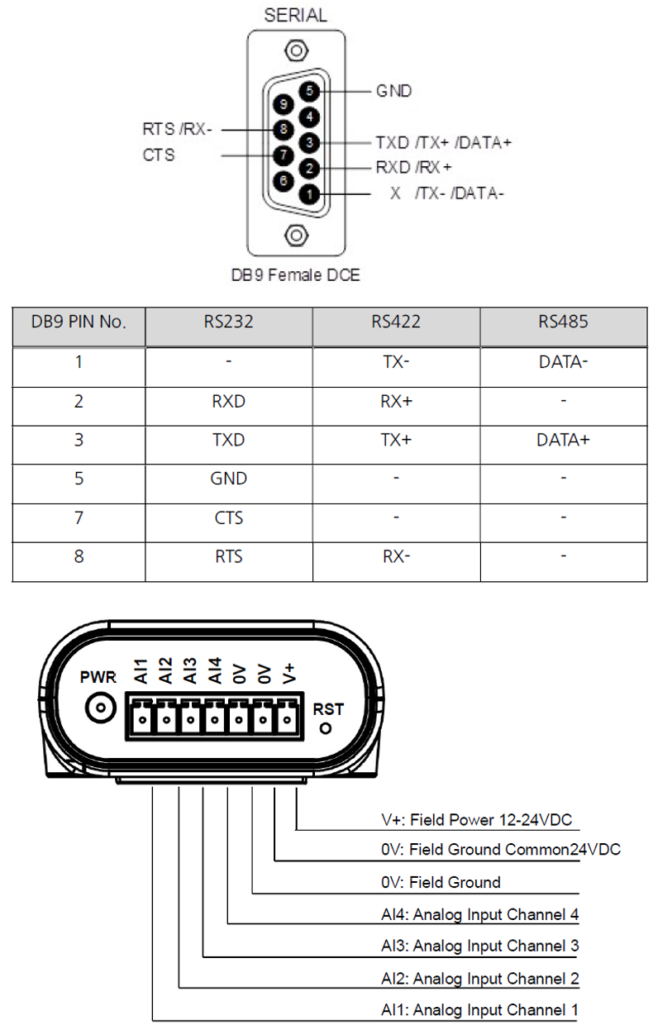

| Signal Lines | RS232 : TXD, RXD, RTS, CTS RS422 : TXD+, TXD-, RXD+, RXD- RS485 : TRXD+, TRXD- |
| Data Bits | 8 |
| Stop Bits | 1, 2 |
| Baud Rate | Up to 921.6Kbps |
| Protection | Up to ±15kV ESD Protection |

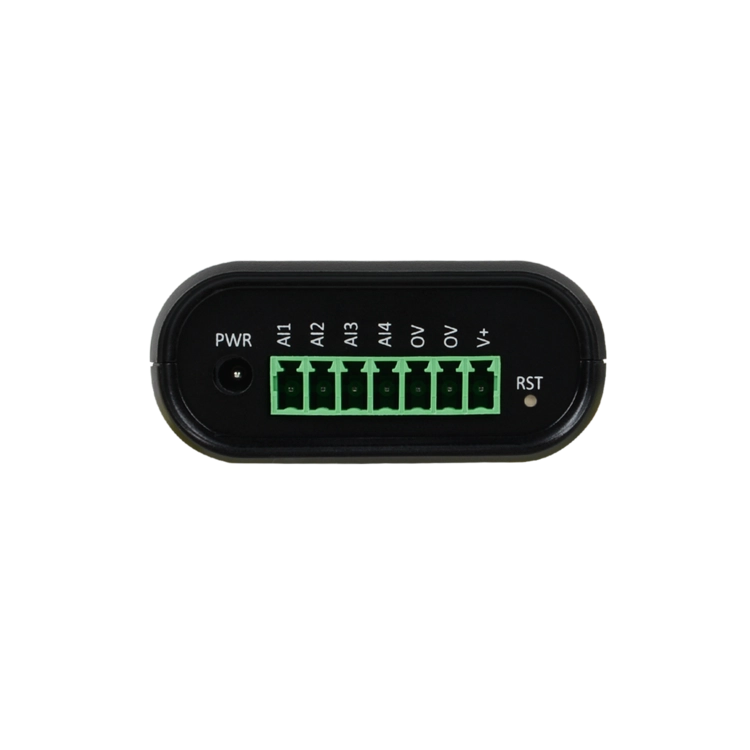

| Analog Input | 4 Channels (Single Ended) |
| Resolution | 16 bits |
| Sampling Rate | 100Hz |
| Analog Input Mode | Selectable 4~20mA or 0~10VDC |
| Input Voltage Range | 0(2) ~ 10V |
| Input Current Range | 0(4) ~ 20mA |
| Power | 12 ~ 24V (Terminal Block) |
| Power | DC 5V ~ 24V, DC-Jack Power Consumption : 120mW |
| LED | RDY(Green), SRL(Red), AI1/3(Green), AI2/4(Yellow) |

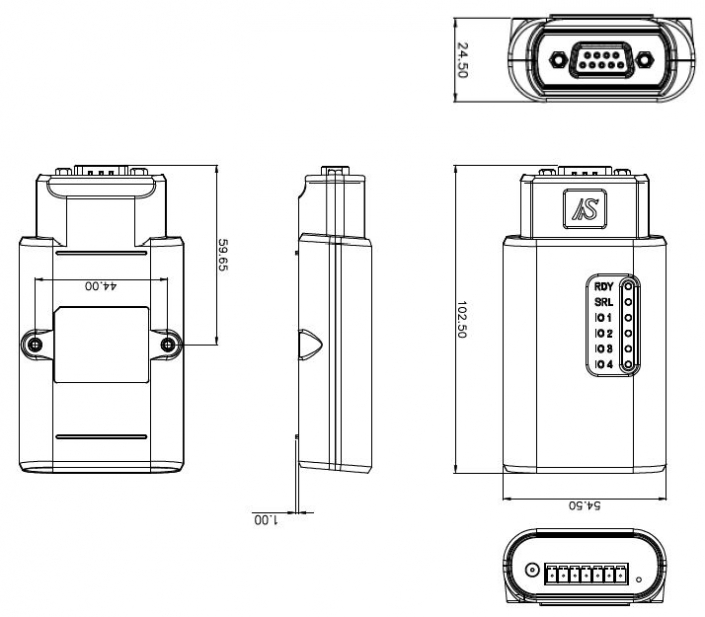

| Dimensions | 102.5(W) x 54.5(L) x 24.5(H) mm |
| Weight | 68g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 90% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
