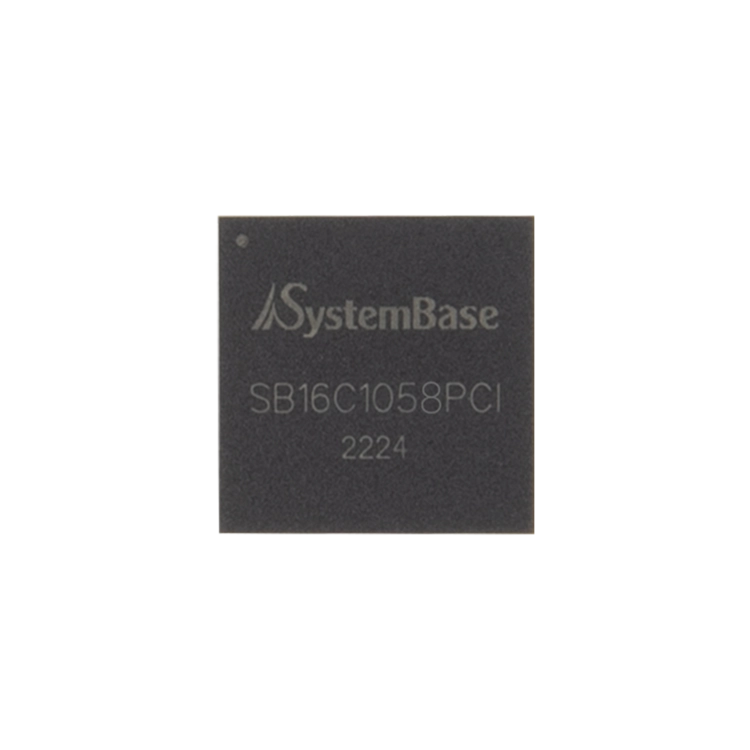

SB16C1058PCI_FBGA176 enables 8 asynchronous serial communication ports over the PCI bus without requiring any external additional logic. It provides an easy, one-chip solution for building 8-port serial multiport cards. SB16C1058PCI_FBGA176 integrates 8 UARTs, each with a 256-byte transmit/receive FIFO, along with a global interrupt and dedicated control pins for RS422/485 Auto Toggling. The 256-byte FIFO reduces CPU overhead and increases data throughput.

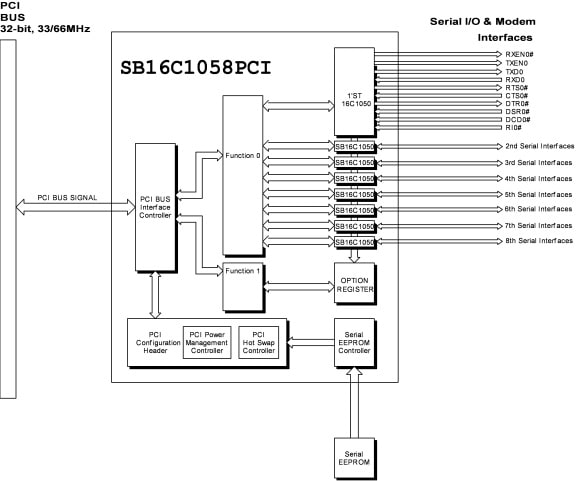

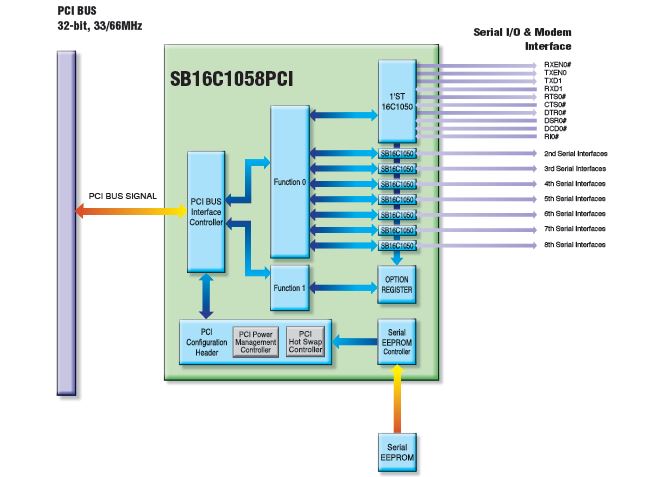

Block Diagram
SB16C1058_FBGA176 has a built-in 256-byte transmit/receive FIFO that reduces software overhead on the CPU, allowing the system to operate more reliably. The device supports two FIFO modes, a 64-byte mode and a 256-byte mode, which can be configured through the FCR (FIFO Control Register) and AFR (Additional Feature Register). The trigger level for the transmit FIFO can also be selected through these registers.
SB16C1058PCI_FBGA176 provides two types of Auto Toggling signals for each UART. These signals reduce the need for additional logic in RS422 and RS485 systems, allowing software engineers to control bus networking without requiring initial setup.

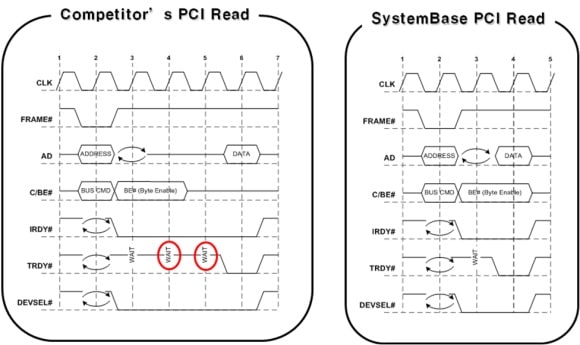

SB16C1058PCI_FBGA176 delivers fast conversion speed between PCI and UART, which directly contributes to overall system performance. The figure below illustrates the zero-wait PCI conversion speed of SB16C1058PCI_FBGA176. While the initial delay in the second stage is unavoidable, SB16C1058PCI_FBGA176 eliminates the two additional wait cycles required by competing products for PCI read cycles. It also achieves the fastest IOW/IOR response time in its class, at 24ns.

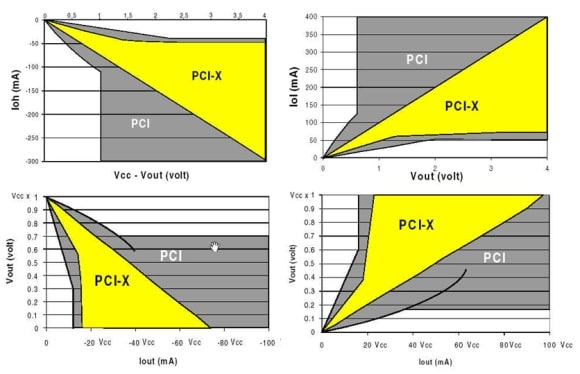

Our PCI core delivers excellent electrical characteristics. SB16C1058PCI_FBGA176 operates on both 33MHz and 66MHz PCI buses and is compatible with both PCI and PCI-X slots.
| Features | Compliant with PCI Local Bus Specification 2.3 Built-in PCI target controller Supports 33/66MHz PCI 32-bit bus Ultra-fast PCI bus operation with 0-wait output / 1-wait input latency Electrically compliant with PCI Local Bus Specification 3.0 (compatible with both PCI and PCI-X buses) Optional registers for efficient UART control and monitoring PCI configuration header data can be loaded from an external serial ROM |
| Features | 8x SB16C1050 UART cores with 256-byte Tx/Rx FIFO Compatible with 16C550 and 16C650 register architecture Hardware Auto Toggle for RS422/RS485 buses Communication speed up to 5.3Mbps (system clock support up to 85MHz) Hardware and software flow control support (Auto-RTS/Auto-CTS and Xon/Xoff) Automatic Xoff retransmission if data continues to be received after Xoff has been sent Xon-any function that resumes communication upon receiving any character |

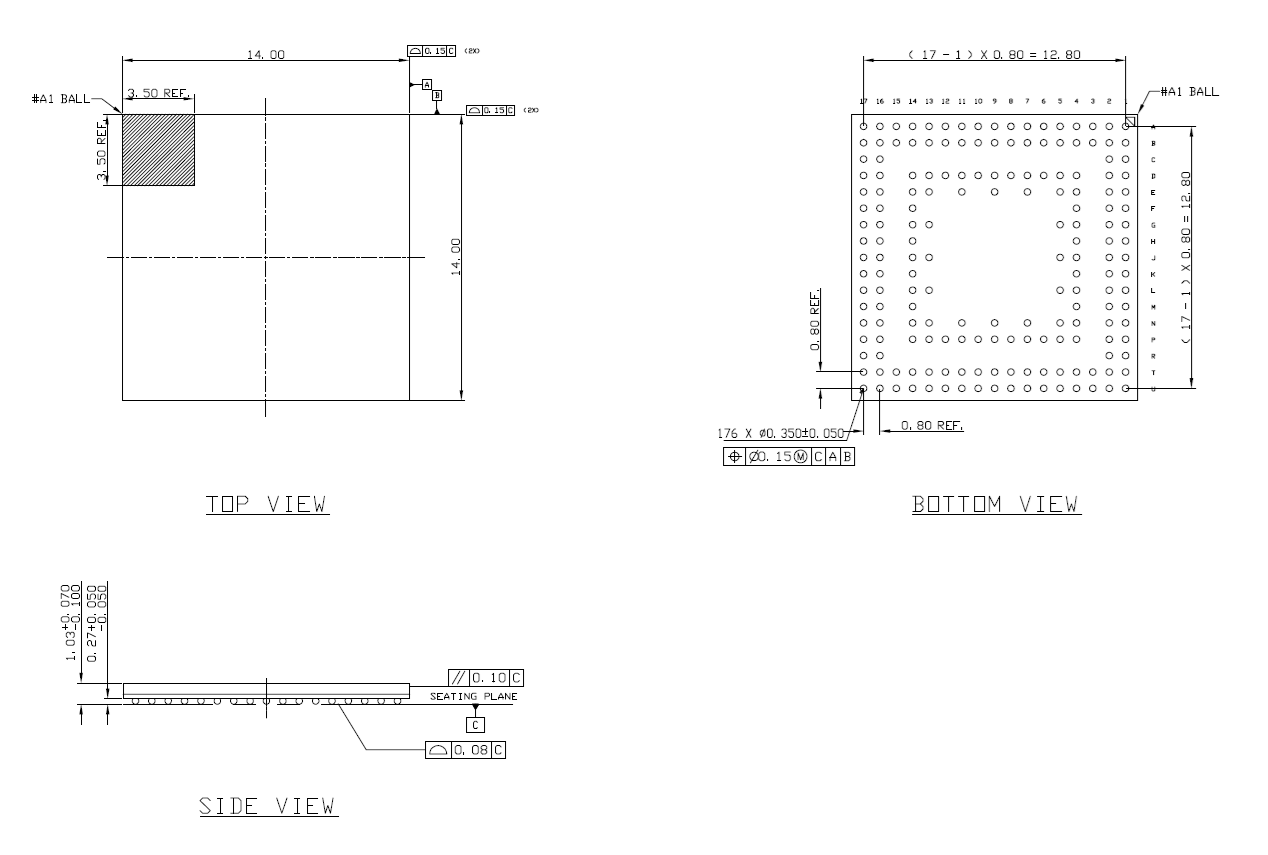

| Features | 3.3V operation, 5V signal input tolerant 176-pin FBGA package |

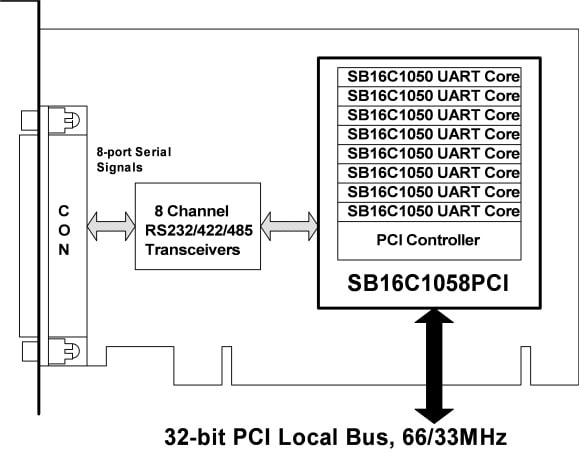

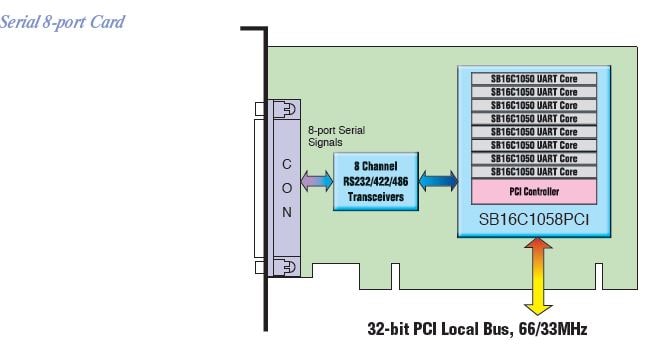

| Application Areas |
|
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
