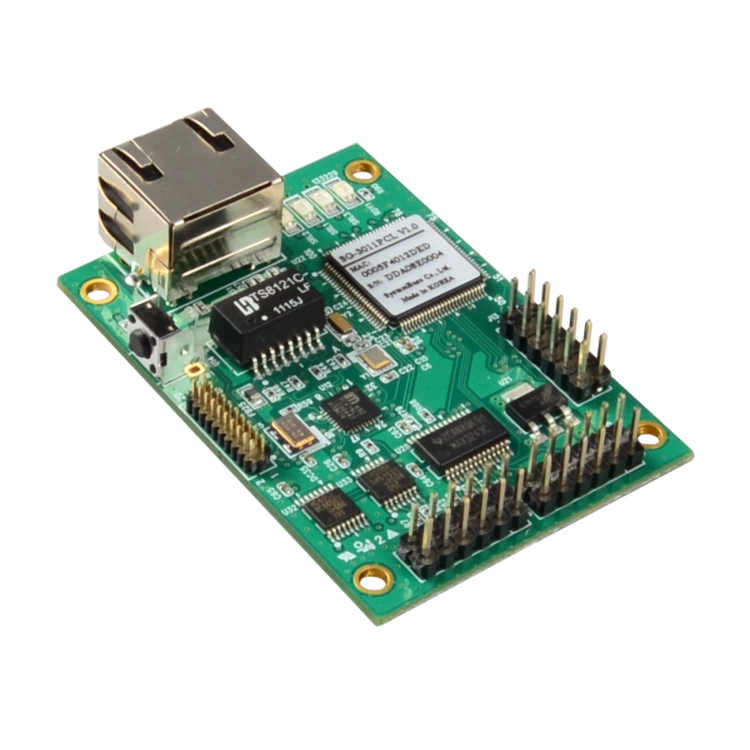

SG-3011PCL/ALL is a pin-type device server module that allows serial ports to be used anytime, anywhere over a network. Connected through a LAN port, SG-3011PCL/ALL supports serial communication speeds of up to 921.6Kbps and supports RS232/RS422/RS485 serial communication standards. SG-3011PCL/ALL provides a COM Port Redirector program to support remote control, monitoring, and data communication for devices connected over a network (TCP/IP), allowing connected serial devices to be used immediately without modifying existing software. SystemBase SG-3011PCL/ALL is a versatile device server module that can be used for control, monitoring, and automation in various fields such as POS, hospitals, factories, and buildings.
Using SG-3011PCL/ALL, remote serial devices connected over a network can be easily communicated with, controlled, and monitored anytime, anywhere.
SG-3011PCL/ALL is a compact, high-performance serial device server module. To ensure high reliability in unstable industrial environments, it adopts highly reliable components along with various protection measures against overvoltage and overcurrent, delivering both high performance and excellent reliability.
SystemBase provides various free utility programs for use with SG-3011PCL/ALL. Through COM Port Redirector, a virtual serial port program, users can easily create virtual serial ports from anywhere and communicate through serial devices without complex configuration or software changes.
In addition, TestView™ is used to test and evaluate the communication performance and stability of the serial and LAN ports of SG-3011PCL/ALL,
and SGConfig™ is a program that provides functions to configure the network environment of SG products and the operating environment of each serial port.
| Protocol | TCP, UDP, Telnet, ICMP, DHCP, HTTP |
| LAN | 1 x 10/100Mbps RJ45 port (Auto-MDIX support) |
| Network Connection | Static IP, DHCP |
| Connector | Pitch 2.5mm Pin Header |
| Interface | RS232/RS422/RS485, LVTTL |
| Maximum Communication Speed | Up to 921.6Kbps |
| Signal | RS232 : TX, RX, GND, RTS, CTS, DTR, DSR, DCD, RI RS422 : TX+, TX-, RX+, RX- RS485 : TRX+, TRX- LVTTL : TXD, RXD, RTS, CTS |
| Data Bits | 8 |
| Stop Bits | 1, 2 |
| Parity Bits | None, Even, Odd |
| Flow Control | RTS/CTS, XON/XOFF |
| O/S | RTOS |
| Management Tools | COM Port Redirector, TestView™, SGConfig, Web |
| Configuration | Web, SGConfig |
| Security | SSH |
| O/S Support | Windows 7 or later, Windows Server 2008 or later |
| LED | RDY(Ready), SRL1, SRL2, SRL3 (Serial) |
| Power Input | DC 5V Adapter, Power Consumption: 1.2W |
| GPIO | 6 EA |
| Dimensions | 46(W) x 77.5(L) x 25(H) mm |
| Weight | 20.7g |
| Operating Temperature | 0 to 70℃ |
| Storage Temperature | -60 to 150℃ |
| Humidity | 5 to 95% non-condensing |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
