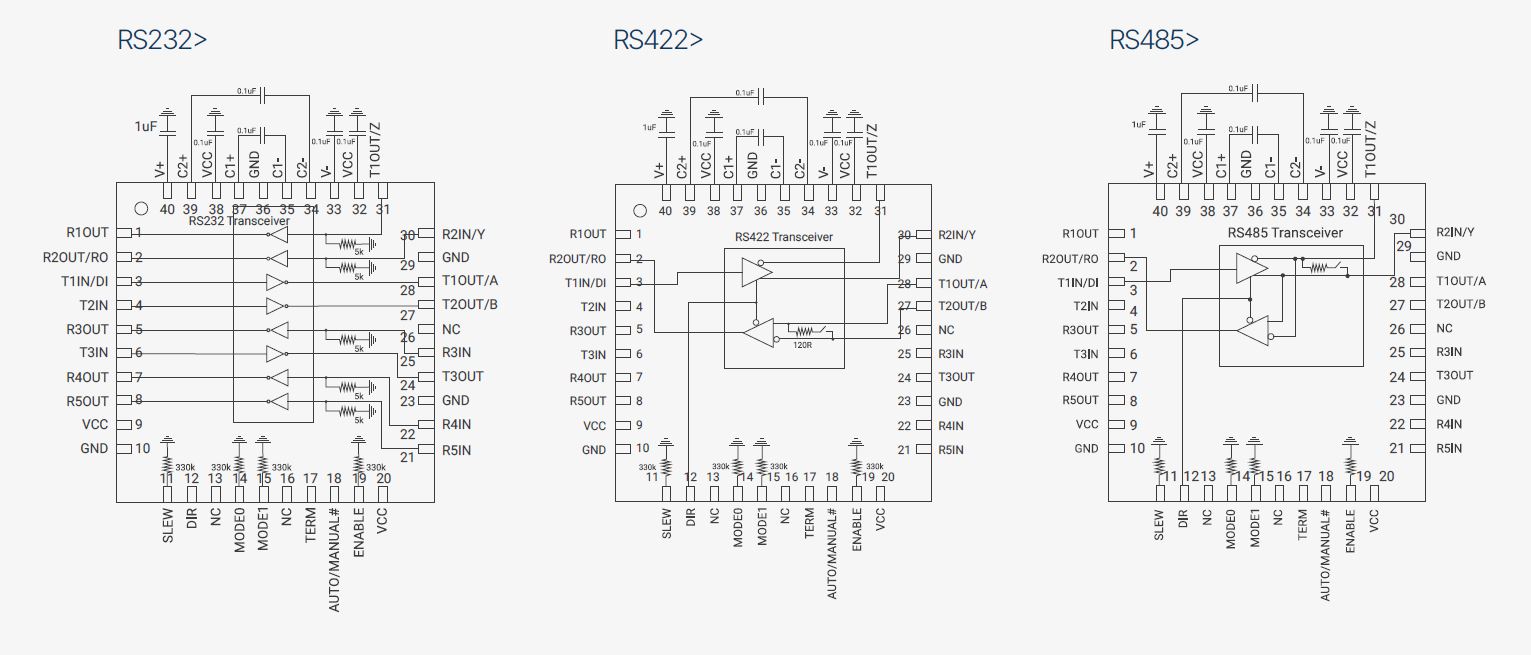

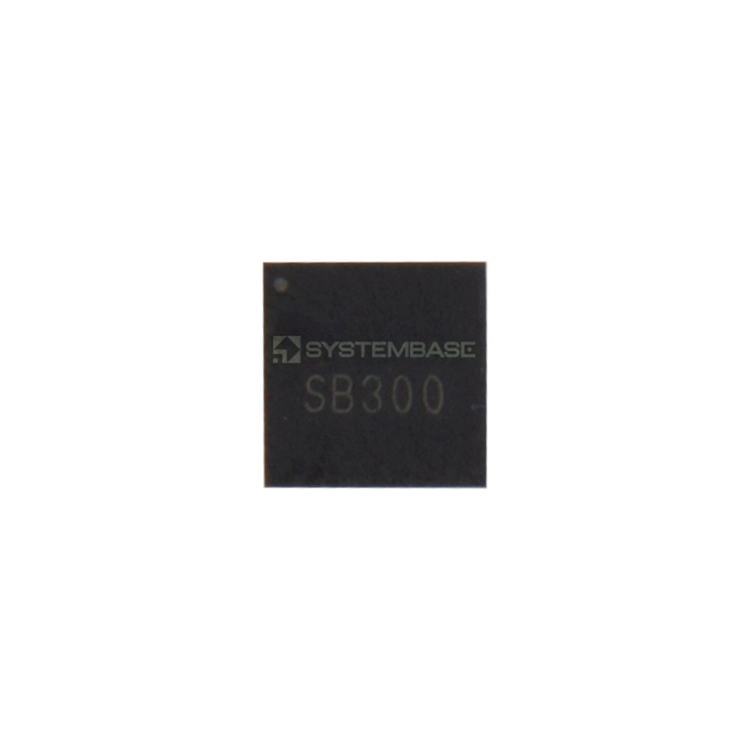

SB300 is a high-performance Multi-Protocol Transceiver in a compact QFN-40 package, supporting the RS232, RS422, and RS485 communication standards. In addition to providing full RS232 signaling (3 drivers, 5 receivers), SB300 supports RS422 (full-duplex/4-wire) and RS485 (half-duplex/2-wire) communication at speeds of up to 10Mbps, which are widely used across a range of field applications. It also features a Slew Rate Limit function that minimizes EMI in environments sensitive to electromagnetic interference. SB300 provides an automatic toggle function that is useful for RS422/RS485 communication, and its built-in internal termination resistor eliminates the inconvenience of connecting an external termination resistor. In addition, an Echo mode is supported, in which transmitted RS485 data is received back as sent, making it especially useful for testing.
– Max Data Rate of 1Mbps (RS232)
– 3 Drivers, 5 Receivers for RS232 Full Modem
– Large Output Swing (±10V, No Load, 5V)
– Max Data Rate of 10Mbps (RS485/422)
– 1 Driver, 1 Receiver for RS485(Half)/422(Full)
– Slew Rate Limit function to minimize EMI
– On/Off control of internal termination resistor for RS485/422

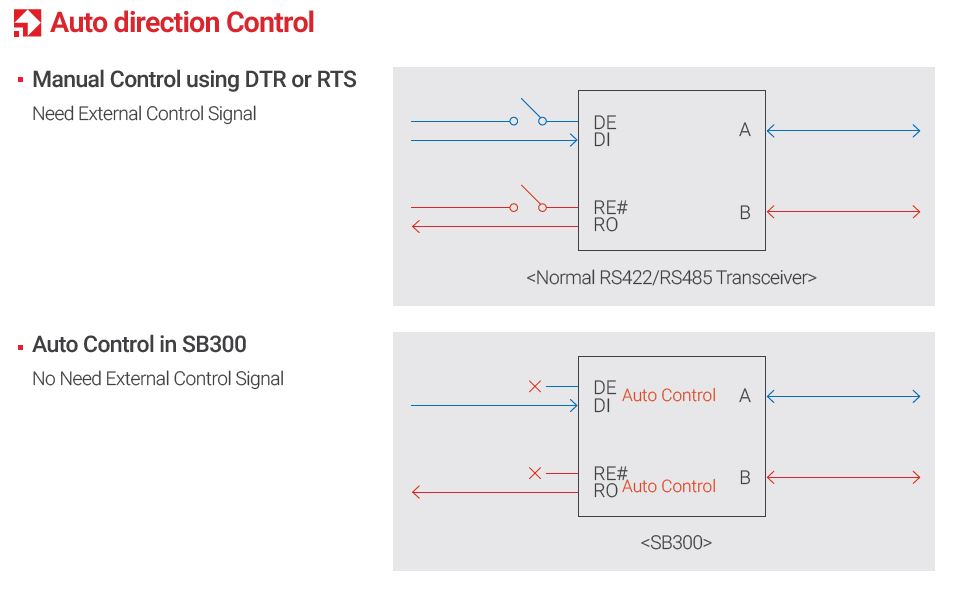

– Auto mode and Manual mode for RS422/485 signal line control
– 3.3V or 5V Single Supply Operation
– ESD Protection:
±8kV HBM on the serial interface pins
±2kV HBM on all other pins except serial interface pins
±4kV IEC 61000-4-2 (Contact & Air Gap) on the serial interface pins

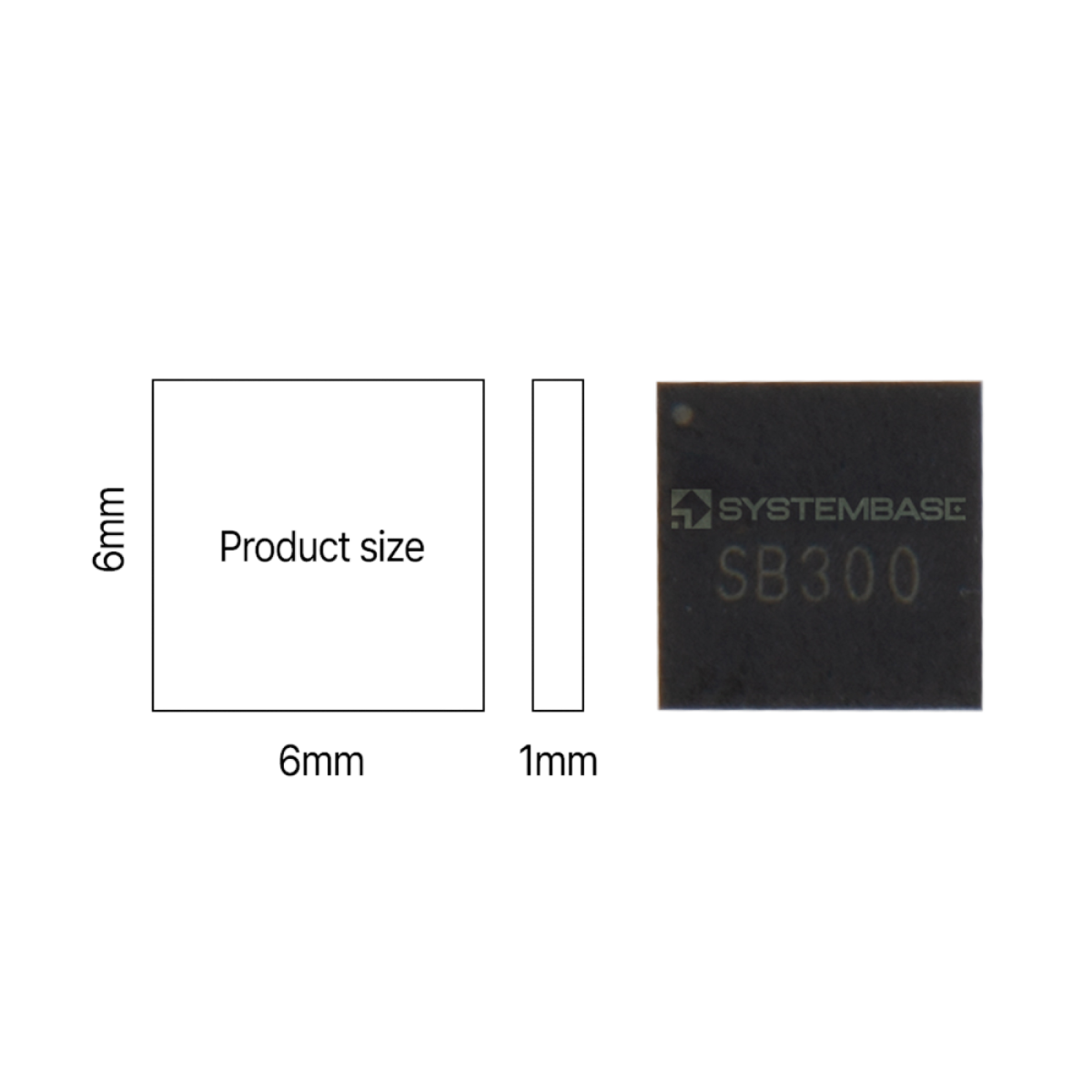

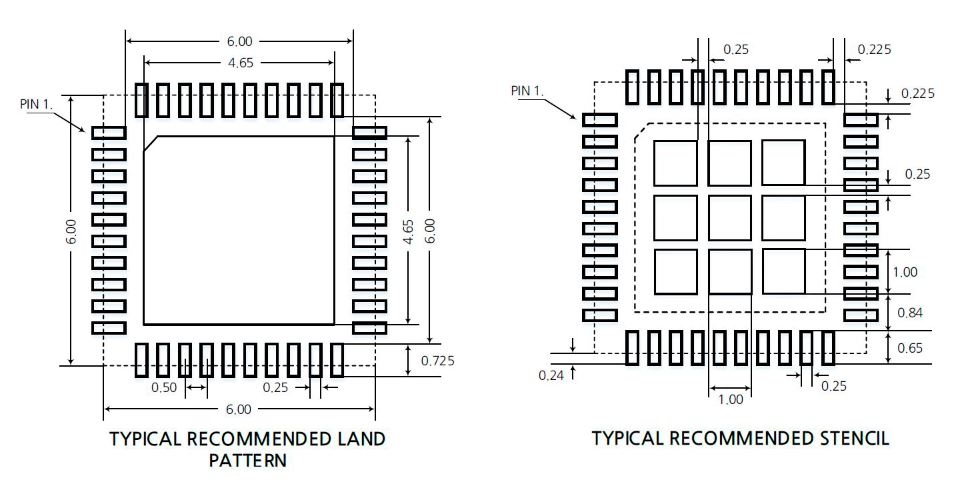

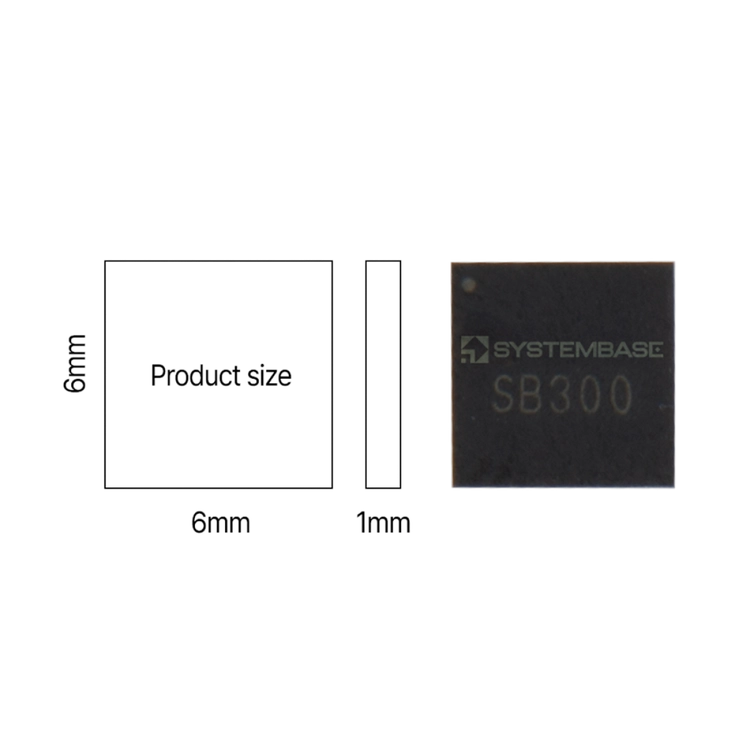

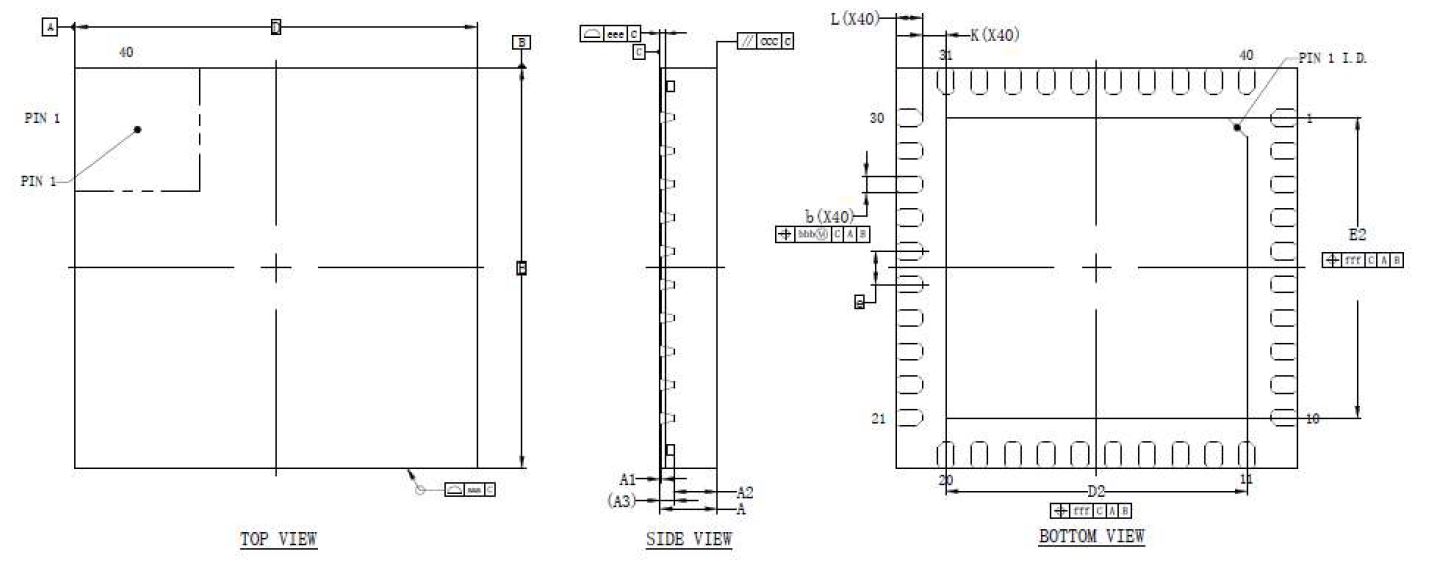

– 6mm x 6mm QFN-40 Package (QFN: Quad Flat No-lead)
– Pin compatible with SP339E of MAXLINEAR (1:1 Pin to Pin)

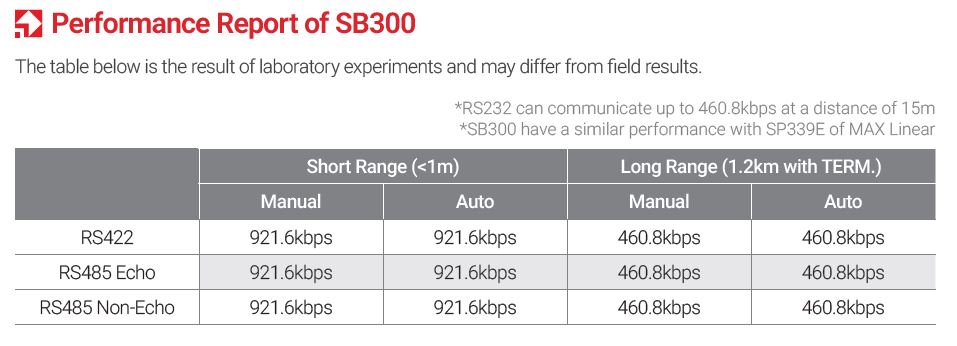

| Features | Hardware Auto Mode (automatic toggle) and Manual Mode (control-signal based) switching Communication speed up to 1Mbps (RS232) RS232 Full Modem signaling (3 drivers, 5 receivers) Communication speed up to 10Mbps (RS422/RS485) Selectable RS422 (full-duplex) or RS485 (half-duplex) operation Slew Rate control to limit EMI Built-in switchable 120Ω termination resistor ESD-protected signal lines 3.3V or 5V single supply operation 6mm x 6mm QFN-40 package Operating temperature: -40 to 85℃ |
| RS232 Interface | Max data rate 1Mbps (RS232) 3 drivers, 5 receivers (RS232 Full Modem) Large output swing (±10V, no load, 5V) |
| RS422/RS485 Interface | Max data rate 10Mbps (RS485/422) 1 driver, 1 receiver (RS485 half-duplex/RS422 full-duplex) Slew Rate Limit to minimize EMI Switchable internal termination resistor Auto/Manual mode for RS422/485 signal control |
| Power Supply | 3.3V or 5V single supply |
| ESD Protection | ±8kV HBM (serial interface pins) ±2kV HBM (other pins) ±4kV IEC 61000-4-2 Contact & Air Gap (serial interface pins) |
| Package | 6mm x 6mm QFN-40 Package (QFN: Quad Flat No-lead) |
| Compatibility | Pin-compatible with MAXLINEAR SP339E (1:1 pin-to-pin) |

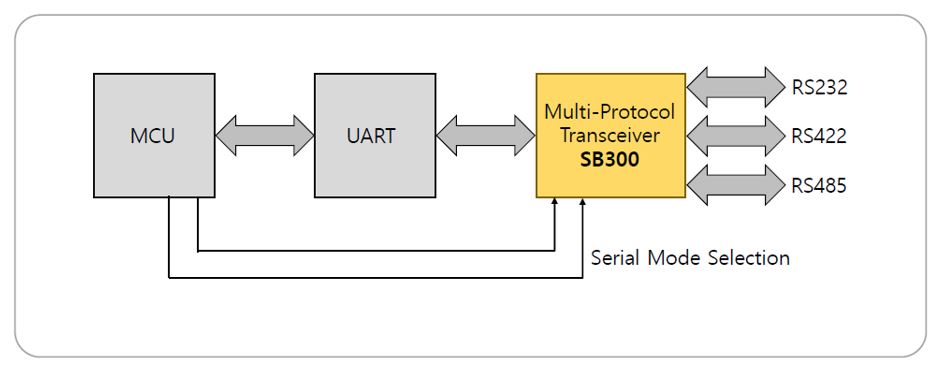

| Application Areas | RS232, RS422, RS485 communication products Serial cards, device servers, and converters Serial communication equipment and systems Isolated communication port products |
