Overview

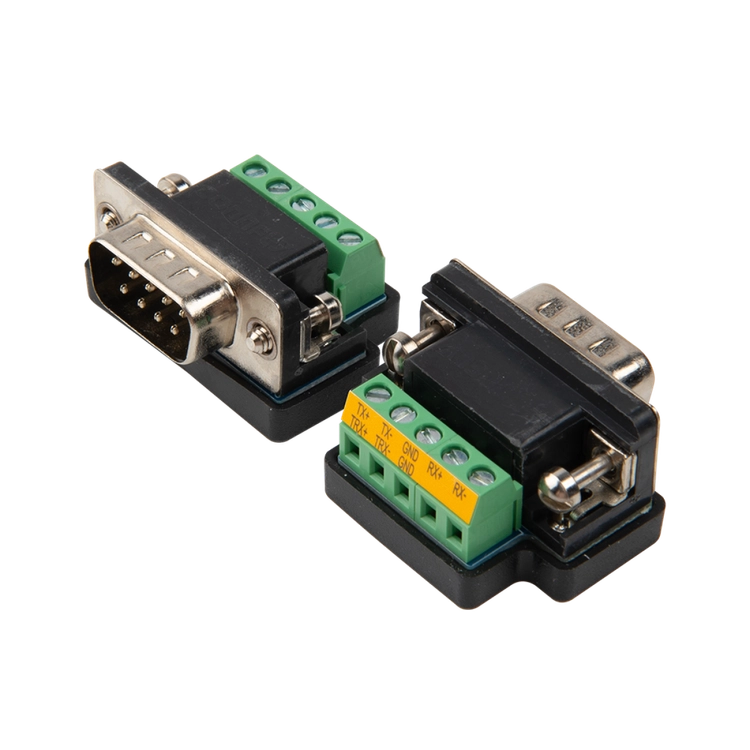

CS-95/M converts a DB9 (Male) connector into a 5-pin terminal block. Many industrial devices using serial communication rely on a terminal block rather than a DB9 connector, which traditionally required users to build a custom cable to connect the terminal block to the serial port of a control PC. CS-95 was designed to eliminate that inconvenience.
Hardware
| Specifications | Dimensions: 32 × 22 × 12 mm Weight: 21g Connectors: DB9 Male, 5-pin terminal block Connector rated power: DB9 (250V / 1.5A), terminal block (300V / 10A) |

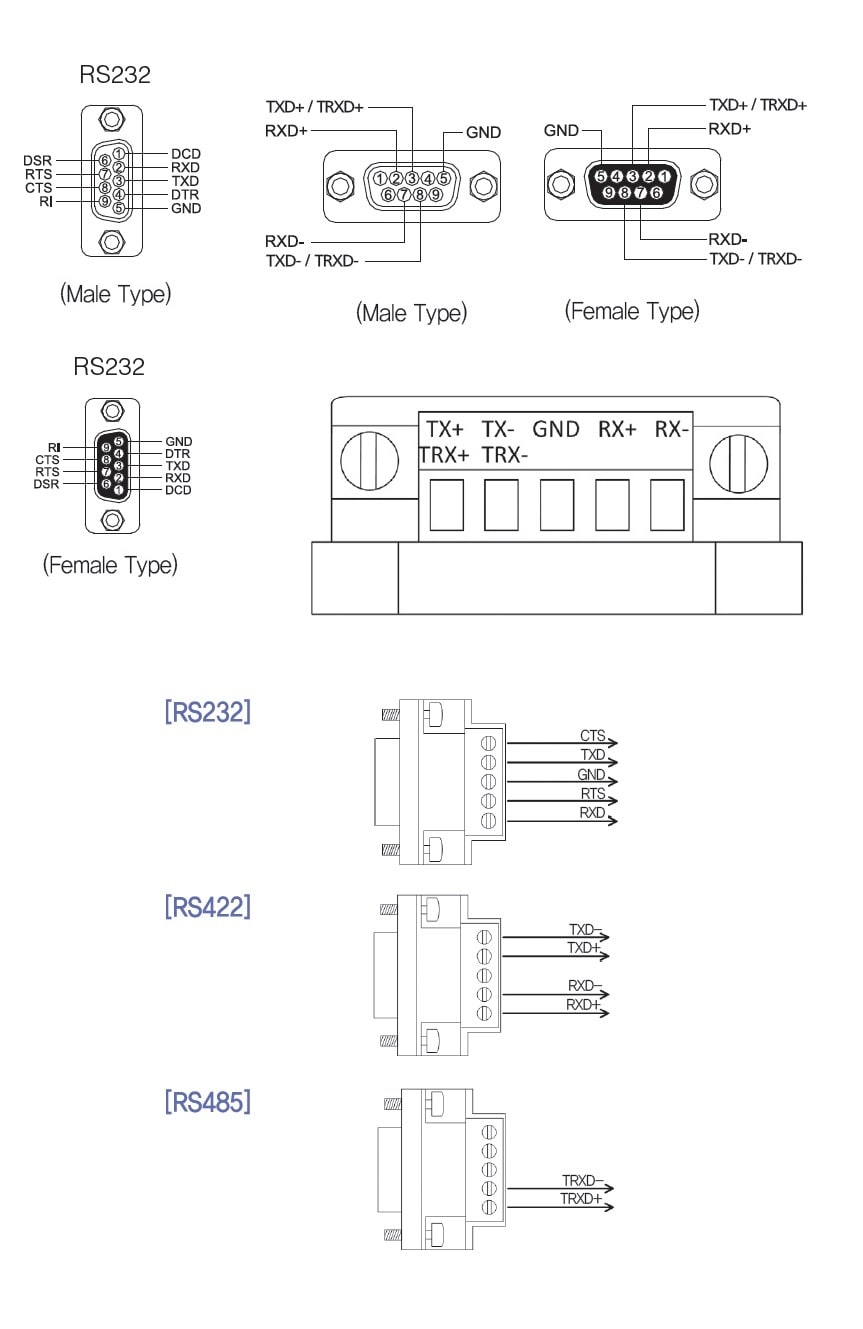

Pin Diagram
