Overview

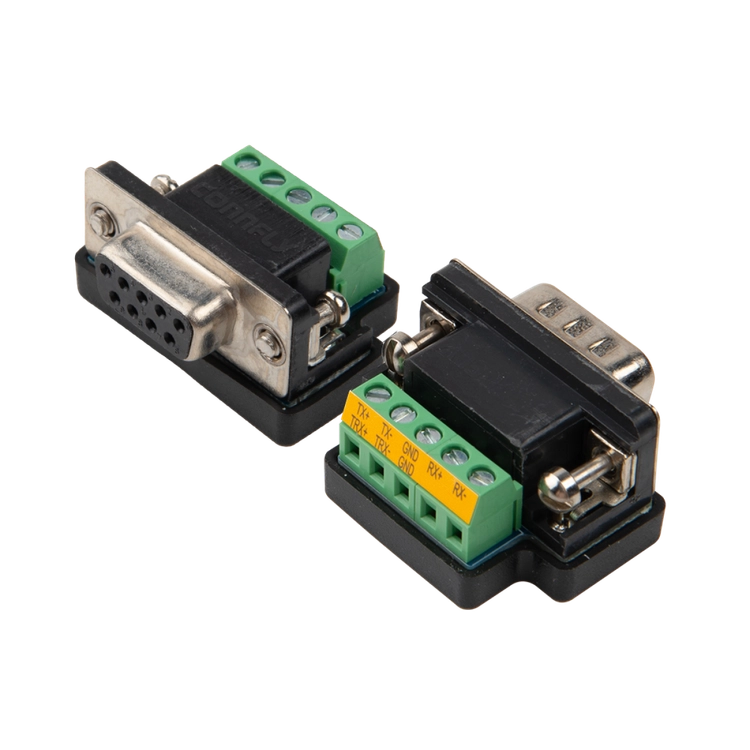

CS-95/F converts a DB9 (Female) connector into a 5-pin terminal block.
Many industrial devices using serial communication rely on a terminal block rather than a DB9 connector, which traditionally required users to build a custom cable to connect the terminal block to the serial port of a control PC.
CS-95 was designed to eliminate that inconvenience.
Hardware
| Specifications | Dimensions: 32 × 22 × 12 mm Connectors: DB9 Female, 5-pin terminal block Connector rated power: DB9 (250V / 1.5A), terminal block (300V / 10A) |

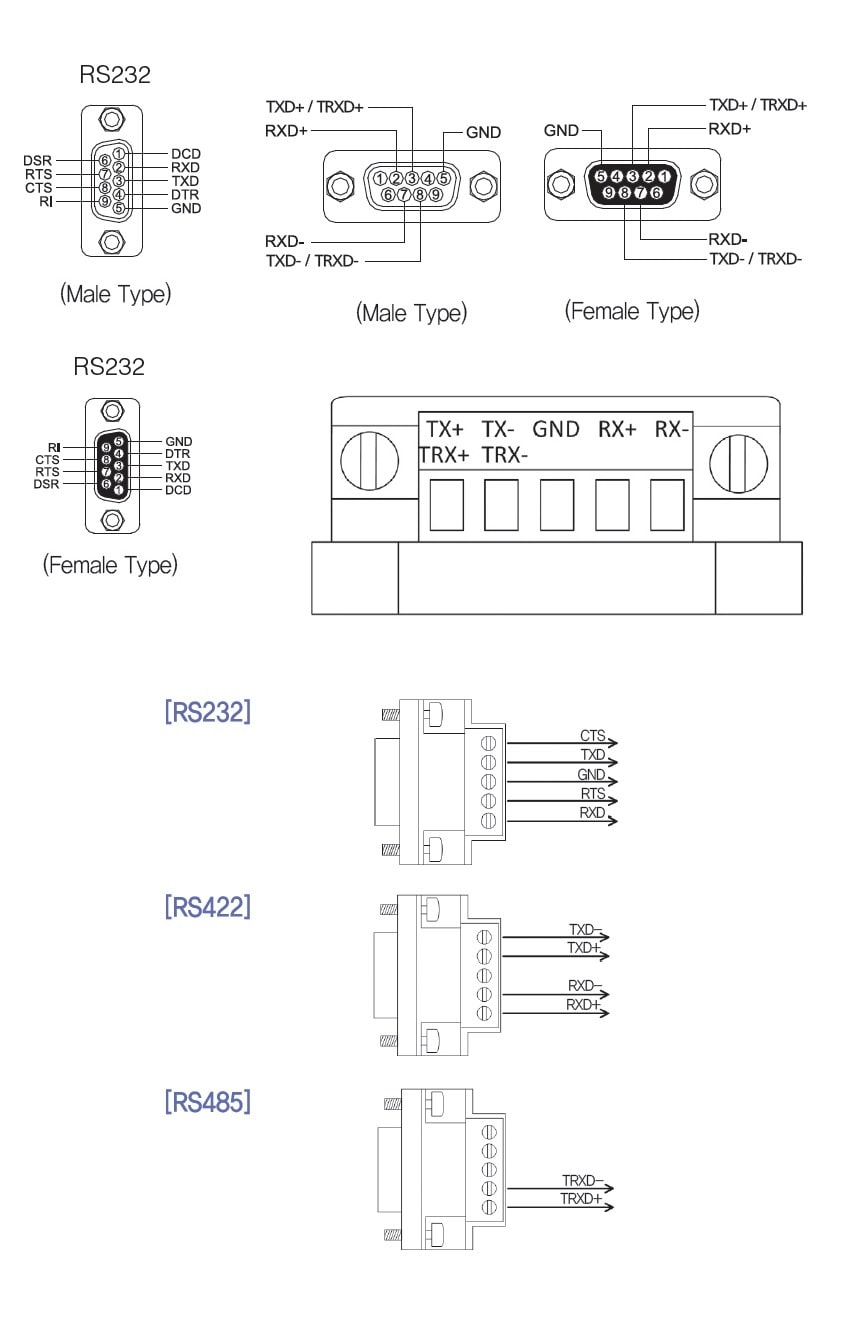

Pin Diagram
