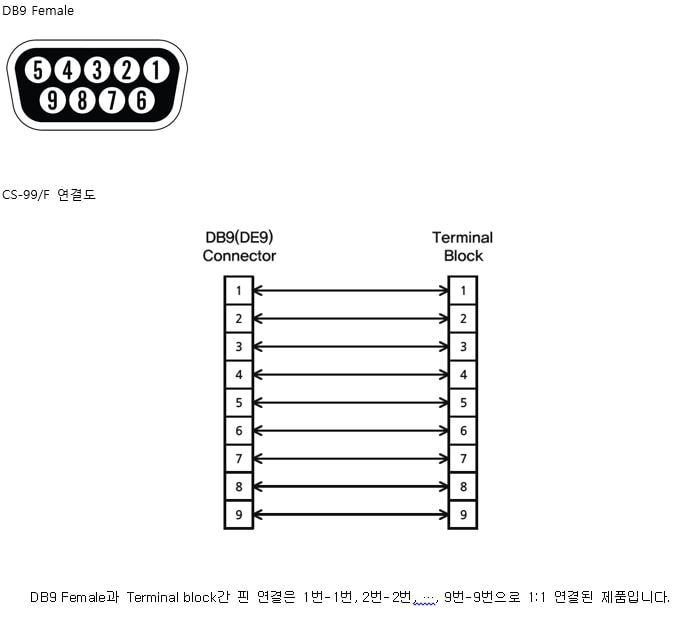

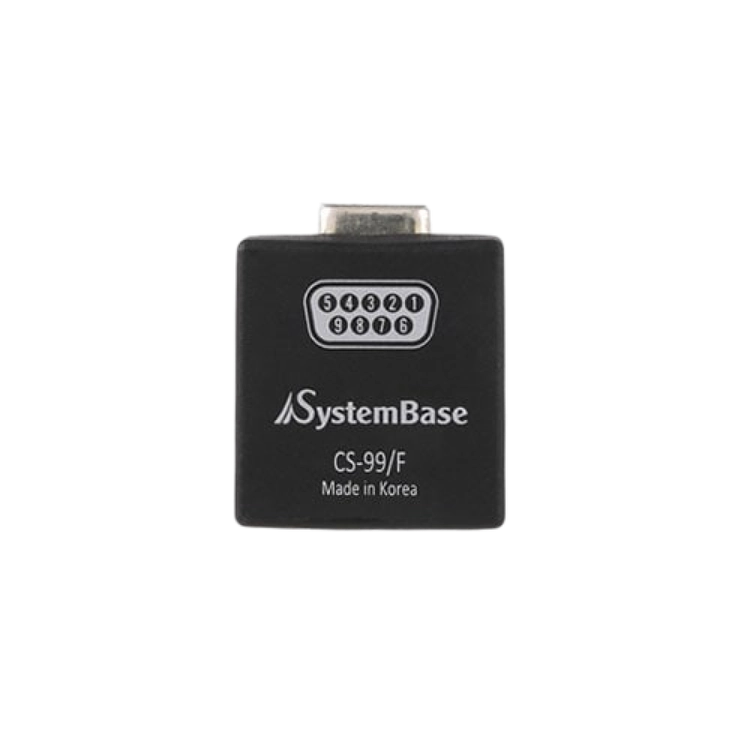

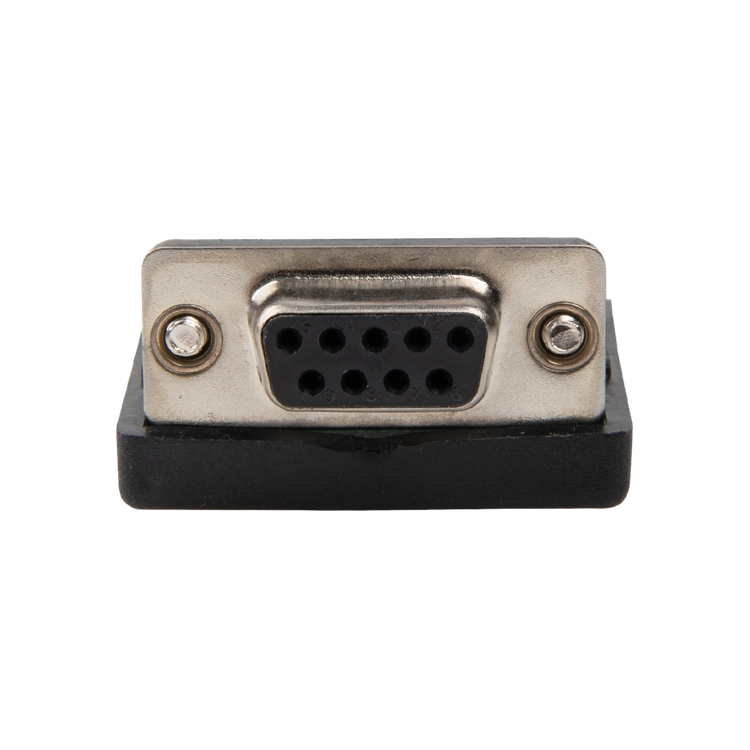

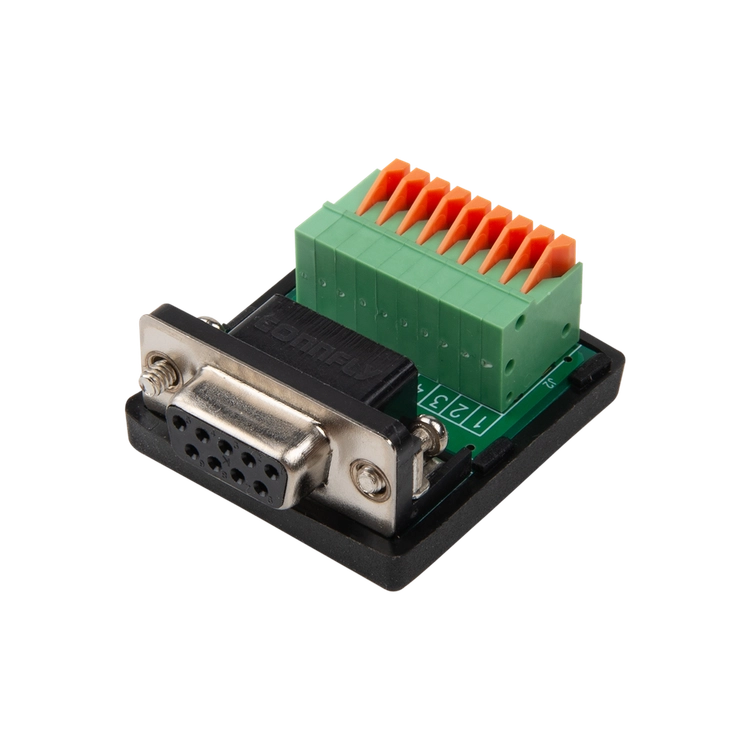

CS-99/F converts a DB9 (Female) connector into a 9-pin terminal block that requires no screws.

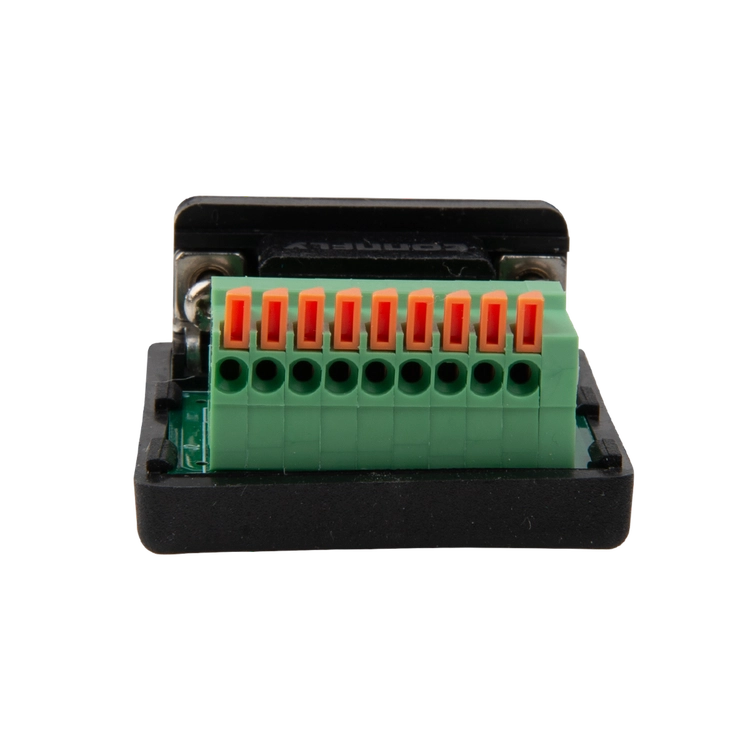

CS-99/F uses a one-touch terminal block that doesn't need to be screwed down, making cabling quick and easy.
Many industrial devices using serial communication rely on a terminal block rather than a DB9 connector, which traditionally required users to build a custom cable to connect the terminal block to the serial port of a control PC. CS-99 was designed to eliminate that inconvenience.
| Specifications | Dimensions: 35 × 42 × 19 mm Weight: 21g Connectors: DB9 Female, 9-pin screwless terminal block Connector rated power: DB9 (250V / 1.5A), terminal block (150V / 2A) Recommended cable gauge: 20–26 AWG for terminal block |
