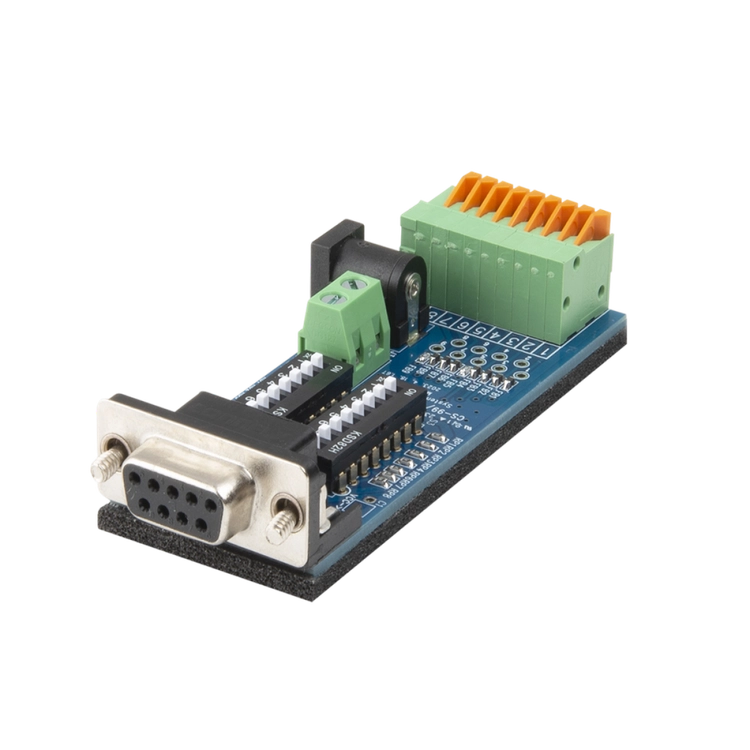

CS-99/F-PUD connects a DB9 connector to a terminal block and lets you apply external power to pull signal lines up or down. CS-99/F-PUD also supports supplying power through the signal line and connecting a termination resistor, a feature commonly needed in RS422 and RS485 serial communication, making it a convenient accessory that enhances both the performance and usability of serial communication.
| Specifications | Connection Type: 1:1 connection Power Connection: Pin 5 (GND), Pin 9 (Power) |

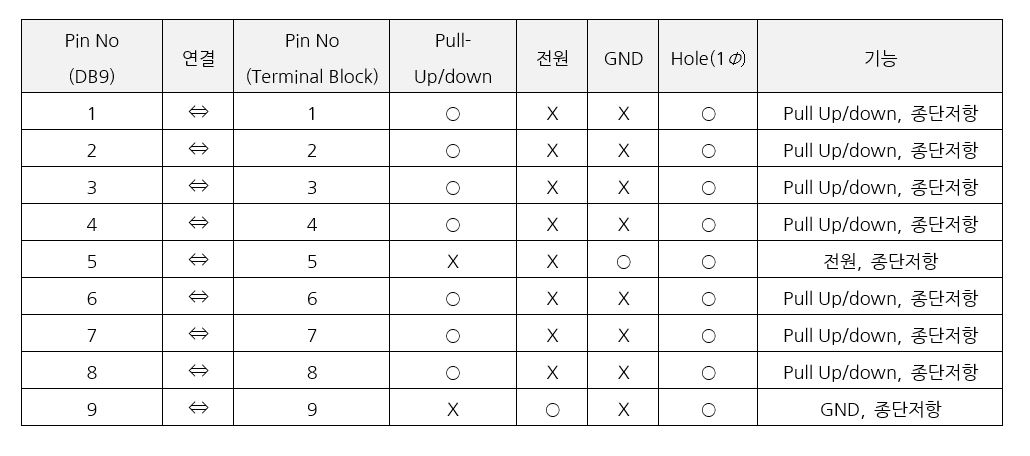

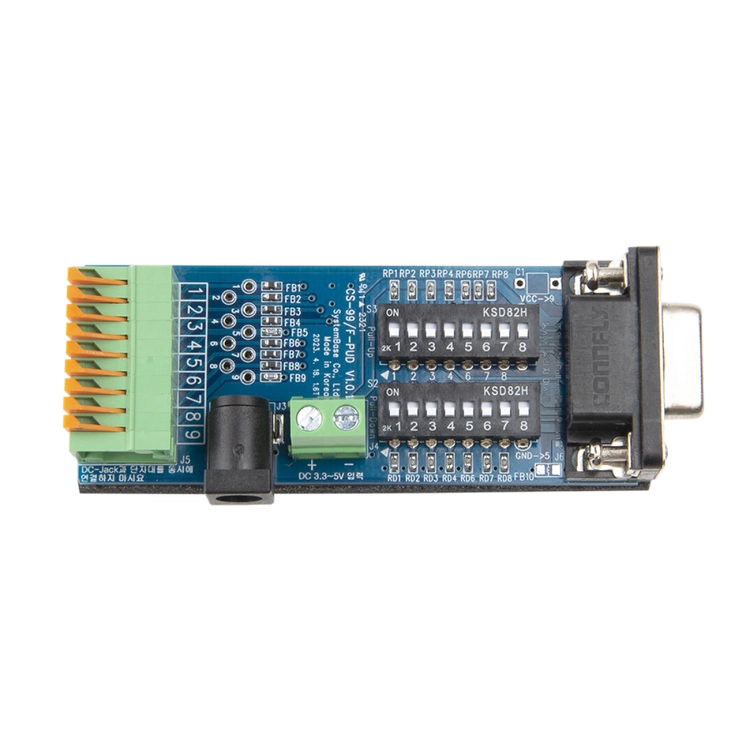

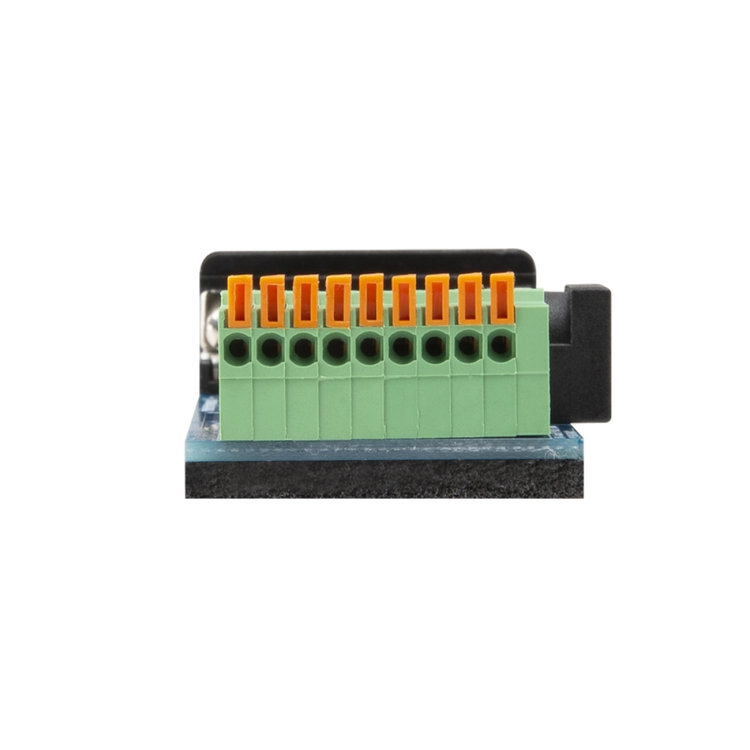

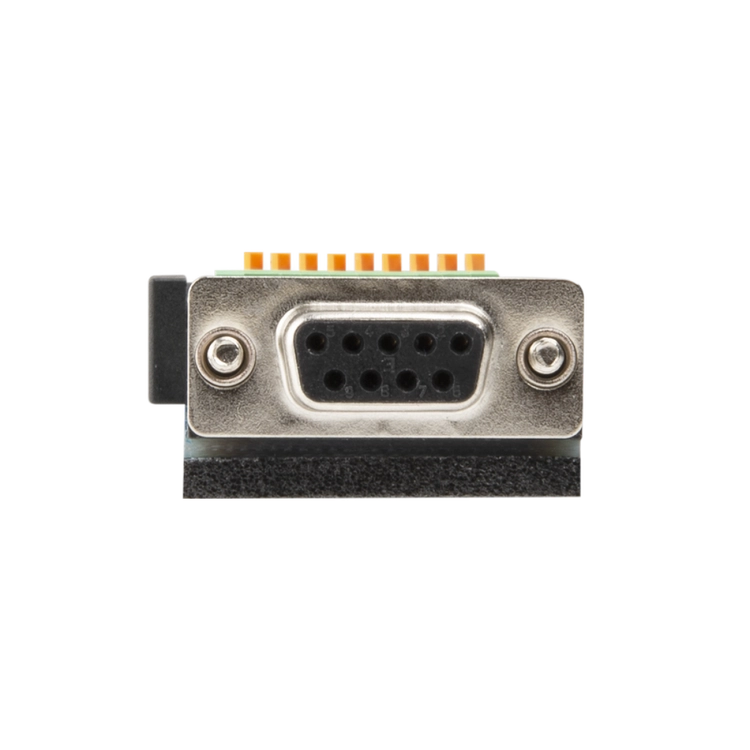

| Specifications | Setting (Pull-Up/Down): Slide switch Supported Pins: Pins 1, 2, 3, 4, 6, 7, 8 Termination Resistor Hole Size: 1Φ |
| Specifications | Primary side: Terminal block (20–26 AWG) Secondary side: DB9 Female |

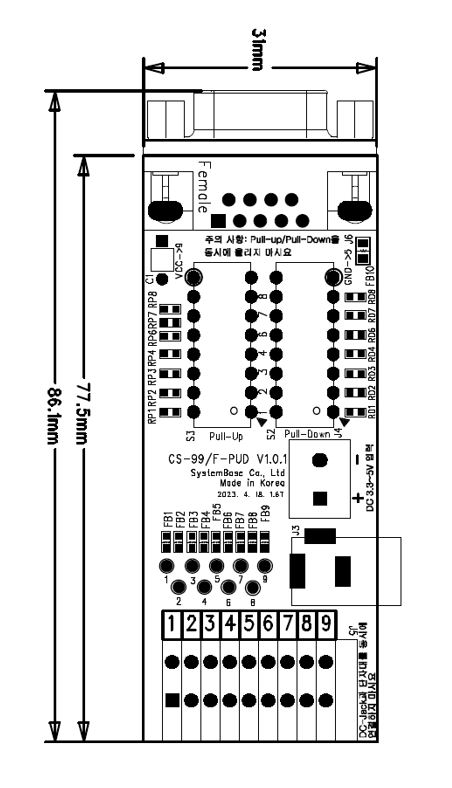

| Specifications | Dimensions: 86.1(W) × 34.3(L) × 17.3(H) mm (including DC jack, 5.5mm outer / 2.1mm inner diameter) Weight: 28g Operating Temperature: -40 to 85℃ Humidity: 5–90% non-condensing |
