Overview

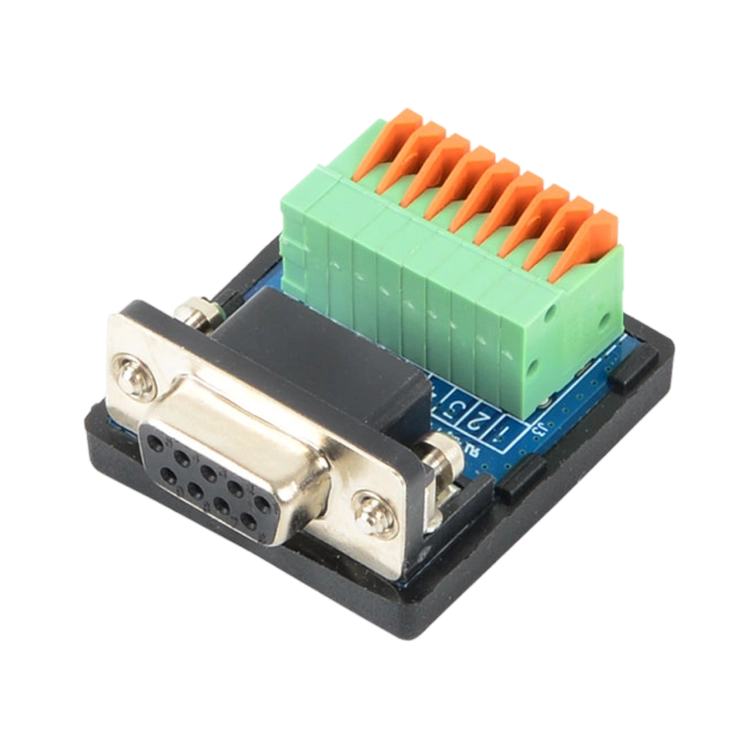

CS-99/F-S is a gender-type surge protector that converts a DB9 (Female) connector into a 9-pin terminal block that requires no screws.
It helps reduce externally generated noise and protects against surges that can cause system malfunctions, while its terminal block uses a one-touch design that requires no screwing, making cabling quick and easy.
Protection
| Specifications | ESD: Contact ±8kV to ±15kV, Air ±15kV to ±30kV Peak Pulse Current (8/20μs): 11A Peak Pulse Power (8/20μs): 350W Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
Connectors

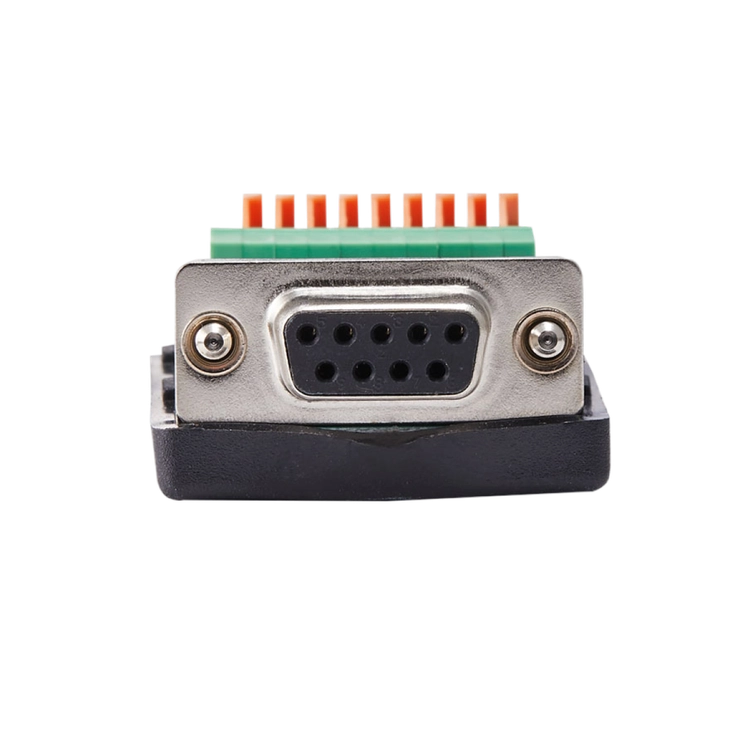

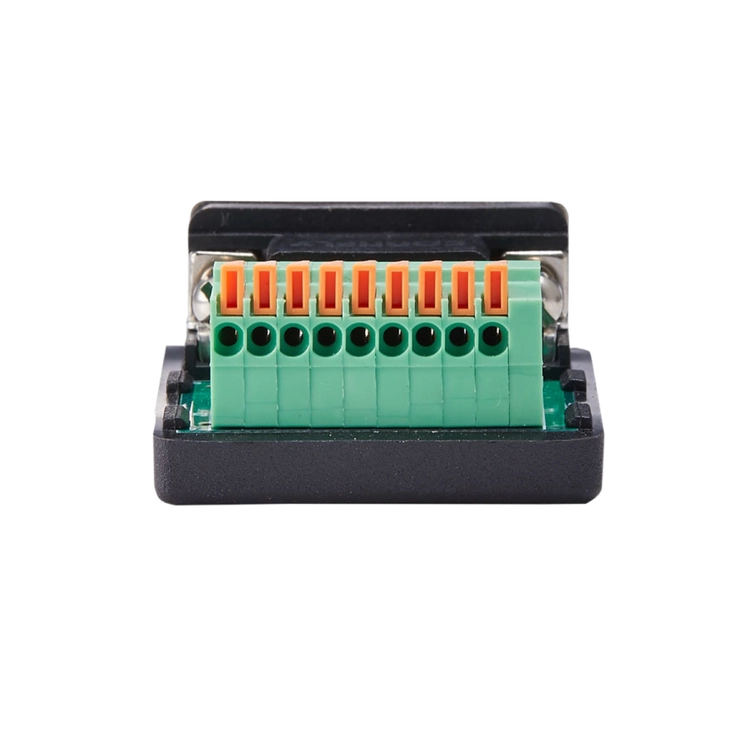

| Specifications | DB9 Female 9-pin screwless terminal block |
Hardware
| Specifications | Dimensions: 35 × 42 × 19 mm Weight: 19g Rated Current: Max. 300mA Recommended Cable Gauge: 20–26 AWG for terminal block |
Operating Environment
| Specifications | Operating Temperature: -40 to 85℃ Humidity: 5–95% non-condensing |

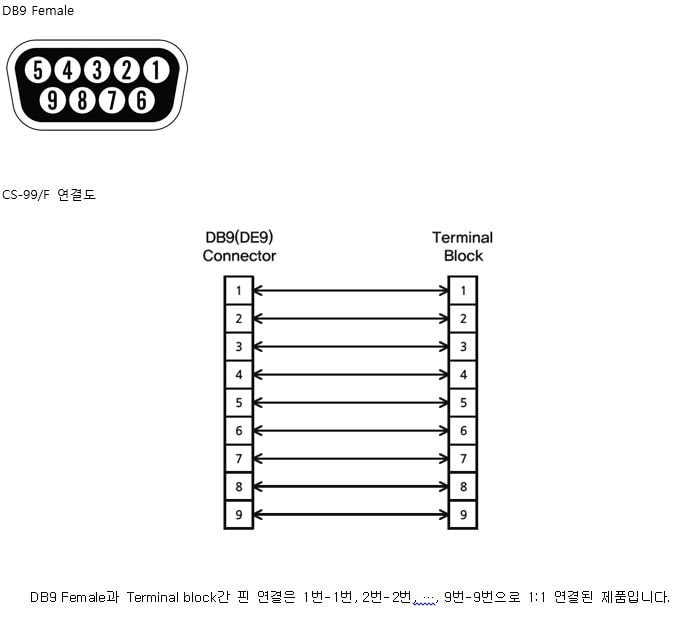

Pin Diagram
Overview
CS-99/F-S is a gender-type surge protector that converts a DB9 (Female) connector into a 9-pin terminal block that requires no screws.
It helps reduce externally generated noise and protects against surges that can cause system malfunctions, while its terminal block uses a one-touch design that requires no screwing, making cabling quick and easy.
Protection
| Specifications | ESD: Contact ±8kV to ±15kV, Air ±15kV to ±30kV Peak Pulse Current (8/20μs): 11A Peak Pulse Power (8/20μs): 350W Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
Connectors
| Specifications | DB9 Female 9-pin screwless terminal block |
Hardware
| Specifications | Dimensions: 35 × 42 × 19 mm Weight: 19g Rated Current: Max. 300mA Recommended Cable Gauge: 20–26 AWG for terminal block |
Operating Environment
| Specifications | Operating Temperature: -40 to 85℃ Humidity: 5–95% non-condensing |
Pin Diagram
