In factories and harsh field environments, communication errors frequently occur due to noise or surges that travel in through cabling from external sources, and the resulting electrical stress can put expensive equipment and facilities at risk of damage over time. SystemBase's BASSO-1010UU/ISO has built-in protection against noise and surges entering through the power or data line, reducing the risk of equipment failure or damage and delivering the high performance and high reliability needed for ongoing facility and equipment maintenance.
Isolation isn't always strictly required for USB devices in general computing environments, but in sensitive, reliability-critical settings such as medical equipment, isolation is essentially a must. In industrial settings as well, USB devices used for remote I/O equipment or data acquisition should be evaluated for isolation depending on the conditions of the deployment site. Isolation is also essential for USB devices operating in environments where noise is pervasive, including ESD, lightning or power surges entering through data and power lines, ground loops, potential differences, and common-mode noise.

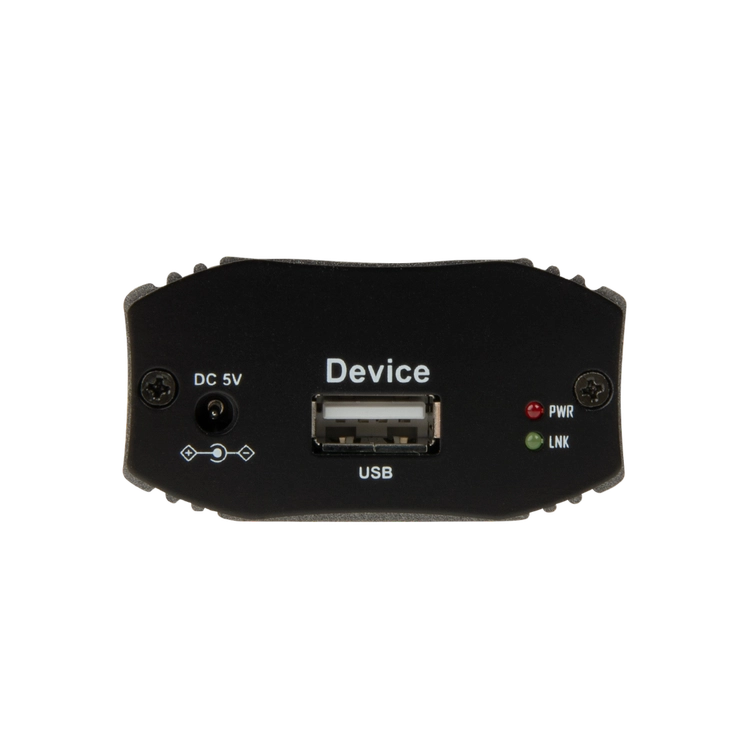

USB devices span a wide range, from low-power devices such as USB flash drives, mice, and keyboards to high-power devices such as USB external hard drives. Built on SystemBase's years of experience in high-efficiency, low-power design, BASSO-1010UU/ISO can drive most common USB devices in bus-powered mode without an external power source, while also supporting an externally powered mode through its DC connector for devices that require higher power, ensuring stable and reliable operation across the full range of USB devices.
CMOS digital isolation is an isolation technique that offers a compact size, high isolation performance, and low power consumption, delivering superior reliability compared with conventional optical isolation methods. This feature electrically isolates the input and output signals, protecting the device from external noise or strong electrical disturbances caused by nearby motors, actuators, or other equipment. When communicating with expensive equipment, isolation provides a cost-effective way to protect that equipment, and BASSO-1010UU/ISO, built with this feature, delivers a longer service life and greater stability than conventional approaches.
Designed with the unpredictable conditions of industrial environments in mind, BASSO-1010UU/ISO incorporates multiple safeguards against electrical disturbances such as overvoltage entering through the USB port, along with high-reliability components, delivering both outstanding reliability and high performance.
| Specifications | USB Specification Rev 2.0, High-Speed Interface: USB Type A Maximum Communication Speed: Max. 480Mbps |
| Specifications | Isolation: ±3kV (digital type) ESD: Contact ±4kV to ±8kV, Air ±8kV to ±15kV Peak Pulse Current (8/20μs): Max. 17A Peak Pulse Power (8/20μs): Max. 350W Standards: KS C 9610-4-2 (ESD), KS C 9610-4-4 (EFT), KS C 9610-4-5 (Surge) |

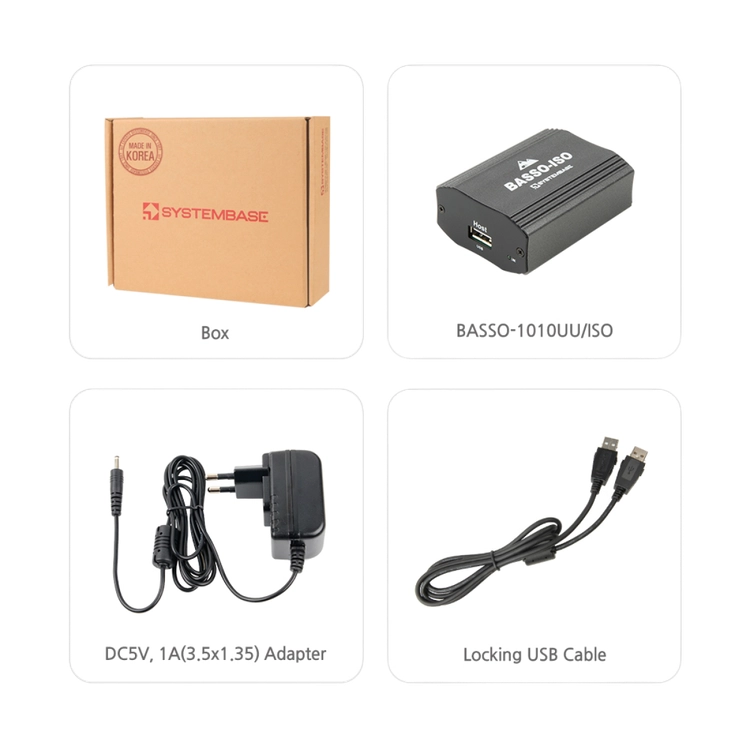

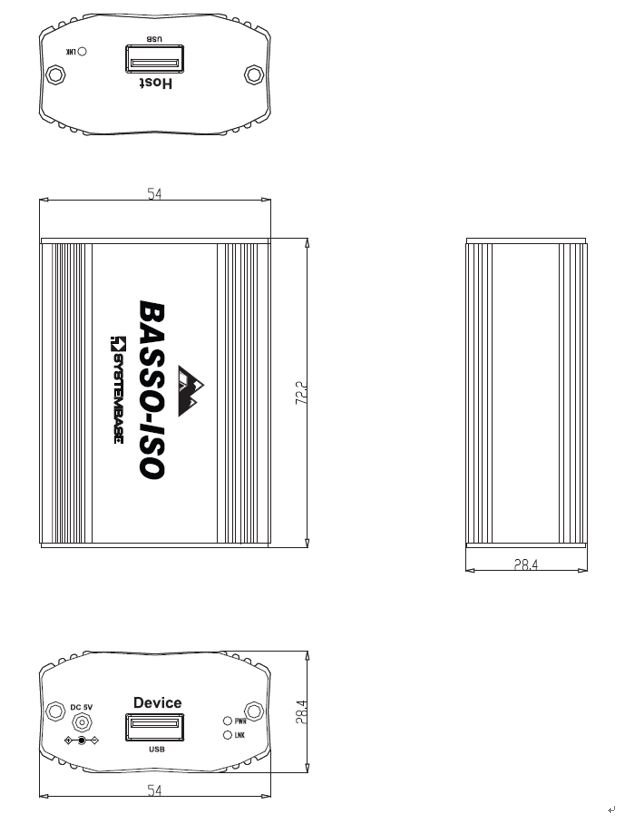

| Specifications | LED: LNK (Green), PWR (Red) Power Input: 5V DC, 1A or higher MTBF: 6,029,000 hours Adapter Specification: Φ3.5mm outer / Φ1.35mm inner Dimensions: 54(W) x 72.0(L) x 28.4(H) mm Weight: 318g total, 99g product weight |
| Specifications | Operating Temperature: -40 to 85℃ Storage Temperature: -40 to 85℃ Humidity: 5–90% non-condensing Certifications: KC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
