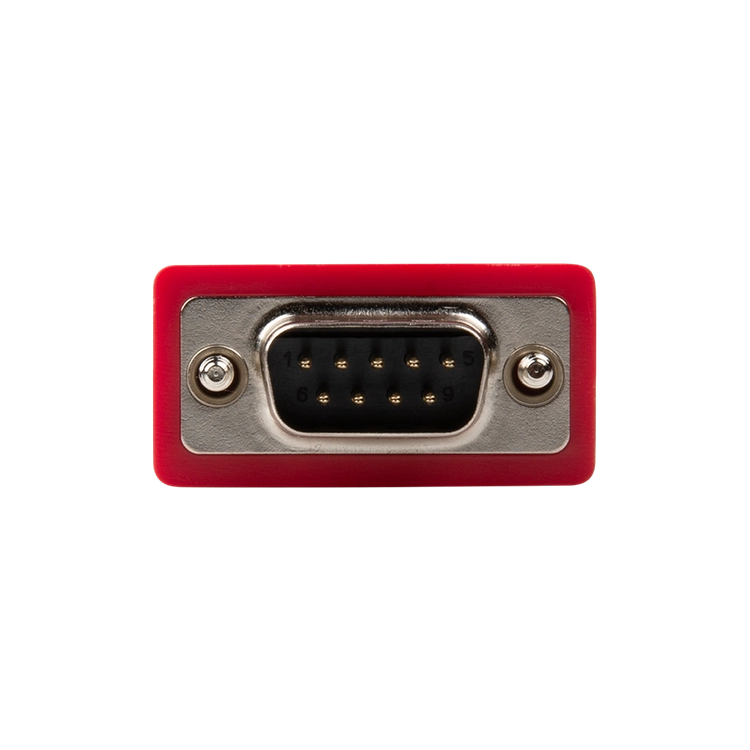

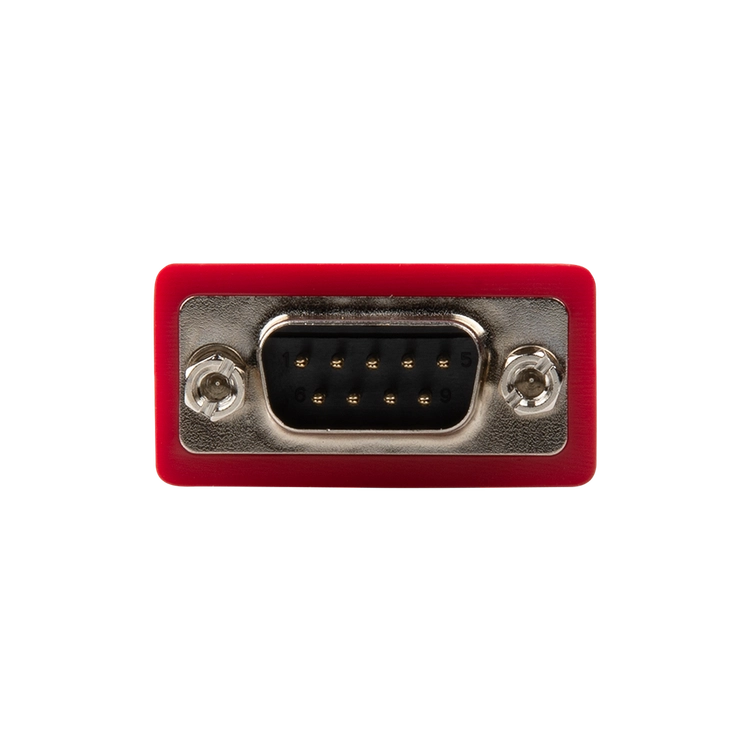

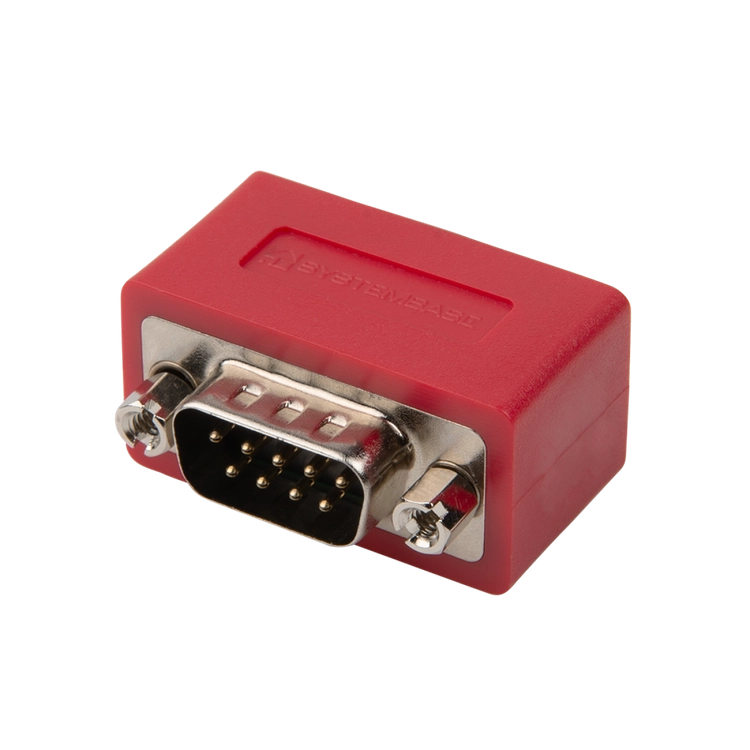

CS-99MM/S-G(C) is a DB9 Male to DB9 Male gender changer that adds surge protection to communication equipment using a DB9 serial port. It is compatible with DB9 connectors used in RS-232 communication environments, and its cross-wiring design makes it easy to set up a cross connection between devices that would otherwise require a direct connection. (Wiring configuration: 1-1, 2↔3, 4↔6, 5-5, 7↔8, 9-9)
Suitable for industrial automation, equipment control, transportation systems, power plants, and many other industrial settings, it converts the connection method while also protecting equipment from excessive incoming voltage (surges) or noise, improving overall system stability and reliability.
It requires no external power supply and can be applied through simple installation, making it a convenient and effective communication accessory that combines connection flexibility with protection.
| Specifications | ESD: Air / Contact, max. ±30kV Peak Pulse Current (8/20μs): Max. 12A Peak Pulse Power (8/20μs): Max. 350W Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 Working Voltage: ±12V |
| Specifications | Connectors: DB9 Male to DB9 Male Wiring: RS232 cross wiring Wiring Configuration: 1-1, 2↔3, 4↔6, 5-5, 7↔8, 9-9 |

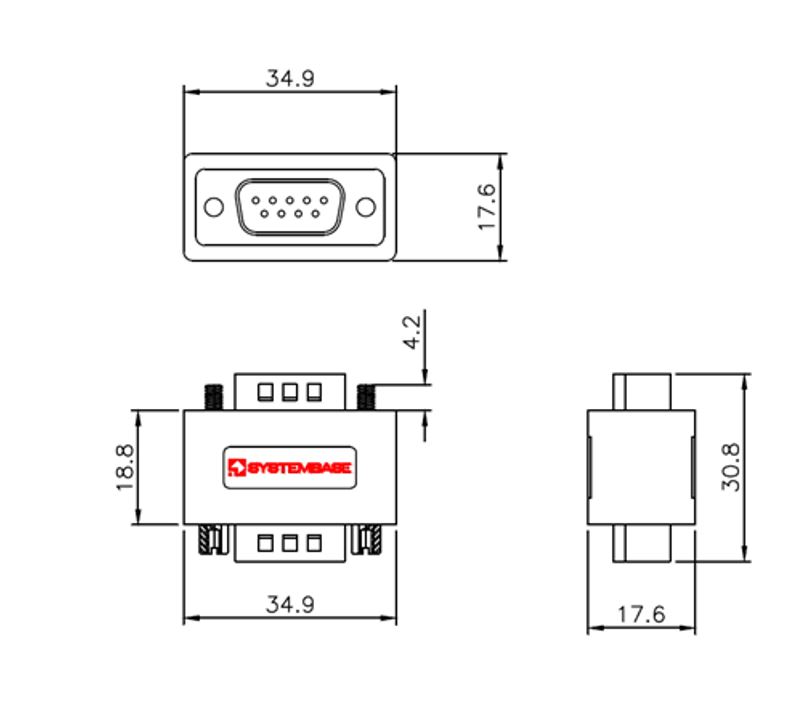

| Specifications | Dimensions: 34.9(W) × 30.8(L) × 17.6(H) mm Weight: 24g total, 21g product weight |
| Specifications | Operating Temperature: -40 to 85℃ Storage Temperature: -40 to 85℃ Humidity: 5–90% non-condensing |
