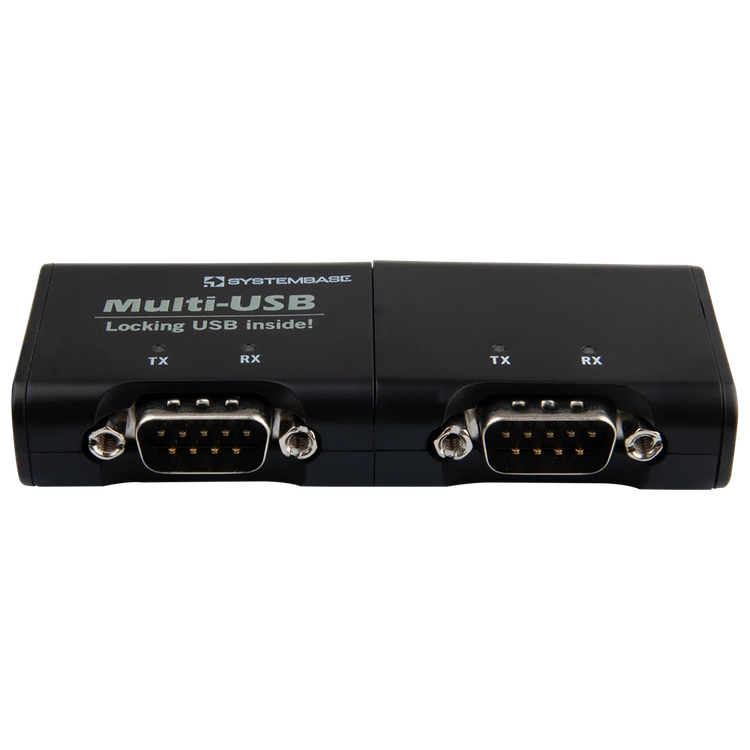

The Multi-2/USB all is a USB-to-Serial converter that expands a single serial port (COM) via a PC's USB port. It supports RS232, RS422, and RS485 communication all in one port, offering easy installation and removal thanks to its USB interface. Additionally, it features TX/RX LEDs for intuitive monitoring of communication status and supports communication speeds of up to 921.6Kbps. This versatile device can be utilized for control and monitoring in various environments, including industrial sites, medical facilities, and building automation, without requiring any software modifications.

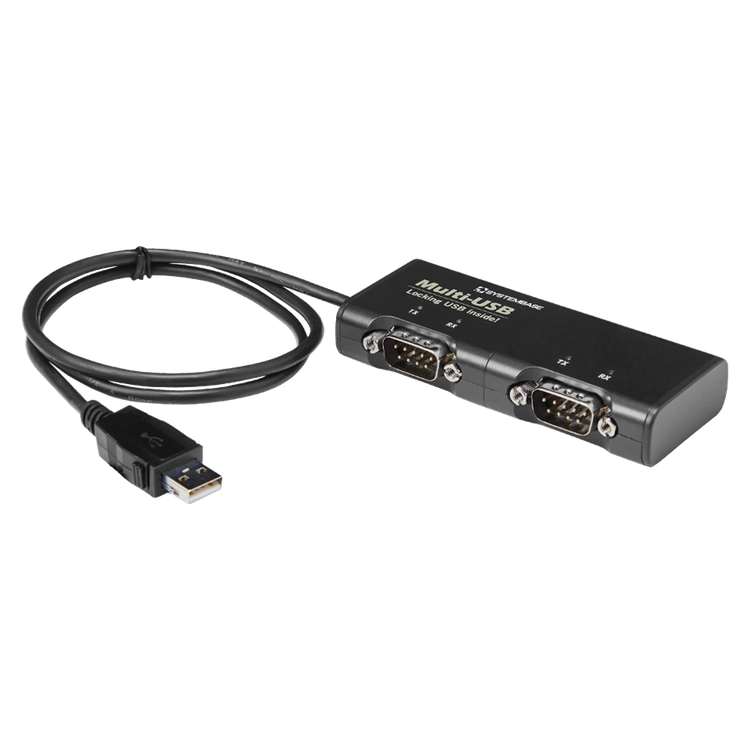

SystemBase's USB-to-Serial products come equipped with a Locking USB Cable. The connector features a secure locking mechanism that prevents the USB from accidentally disconnecting due to external impacts. With its excellent compatibility with standard USB connectors and ease of use, it is widely adopted in demanding industrial environments.

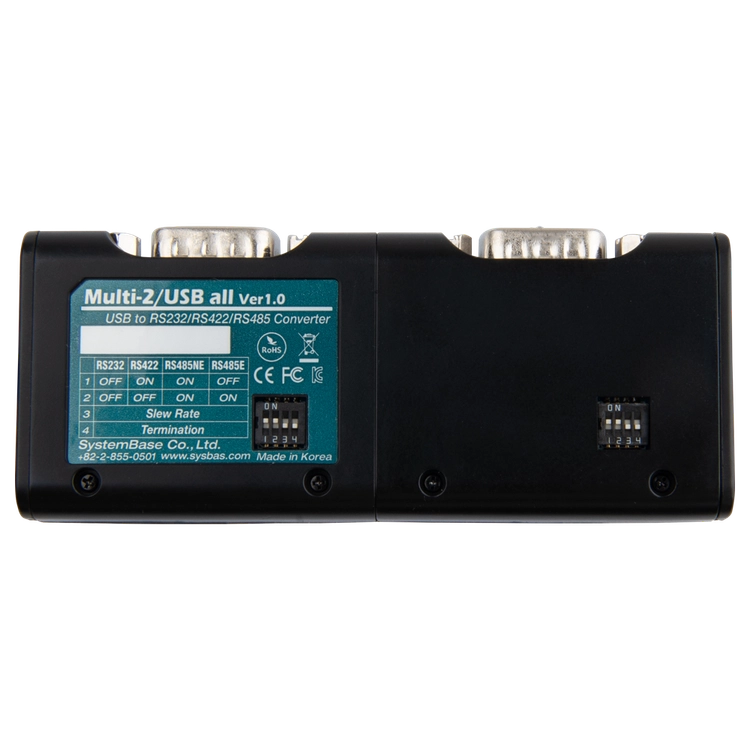

The Multi-2/USB all provides an Auto Toggling feature for RS422/RS485 communication. This function prevents output signal collisions in RS422 multi-drop configurations or RS485 networks. Since this feature is implemented at the hardware level, simply configuring the interface mode via the switch will automatically enable Auto Toggling to match the selected mode, maximizing user convenience.
For RS422/RS485 data communication, the Multi-2/USB all features a Slew Rate limiting function that suppresses electromagnetic emissions during data transmission. When activated, this function suppresses high-frequency signals to reduce external impacts caused by electromagnetic radiation. This effectively prevents the malfunction of equipment in environments highly sensitive to EMI, such as hospitals and laboratories. However, please note that communication speeds may be limited depending on the specific communication environment.
| Specifications | USB Specification Rev 2.0, High-Speed |
| Controller | RS232/RS422/RS485 |
| Board Connector | DB9 Male |

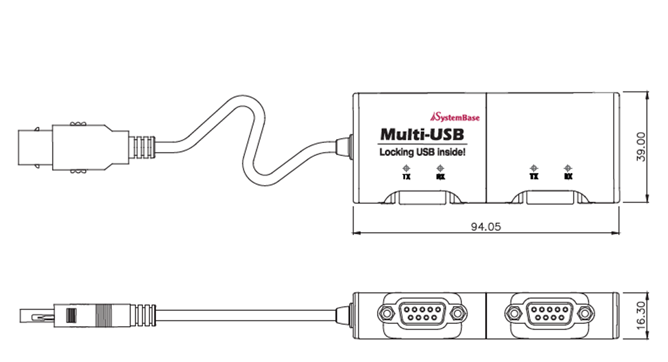

| Dimensions | 94(W) x 39(L) x 16.3(H) mm |
| Weight | Total weight: 70g, Product weight: 60g |
| Operating System | Windows 7 or later Windows Server 2008 or later Linux |
| 유틸리티 | TestView™ |
| Number of Ports | 2 |
| Interface | RS232/RS422/RS485 |
| Max. Baud Rate | Max 921.6kbps |
| Signals | RS232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI RS422: TXD+, TXD-, RXD+, RXD- RS485: TRXD+, TRXD- |
| Protection | ±15kV ESD(HBM) Protection |
| Flow Control | RTS/CTS, XON/XOFF |
| Operating Temperature | -40 ~ 85℃ |
| Storage Temperature | -40 ~ 85℃ |
| Humidity | 5–95% non-condensing |
| Certifications | KC, CE, FCC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
