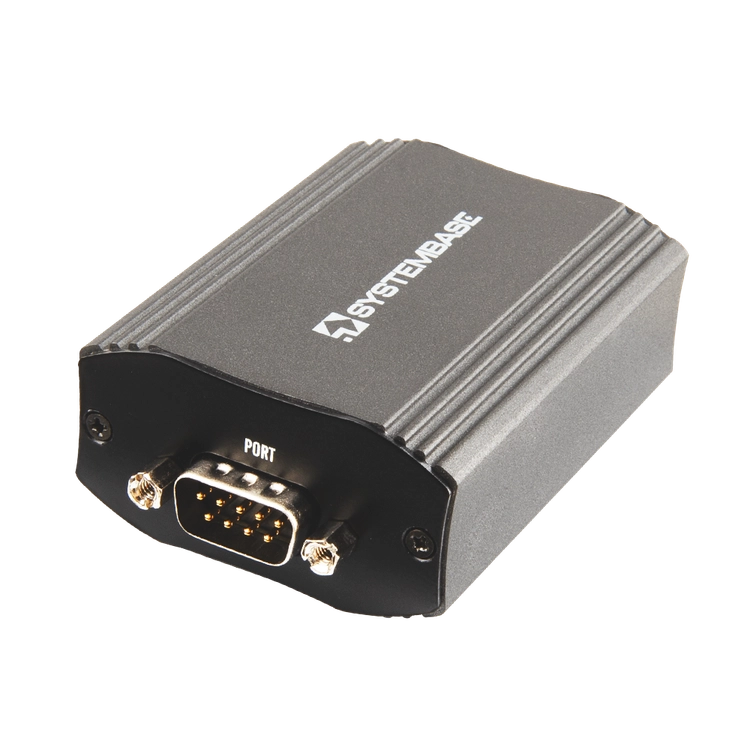

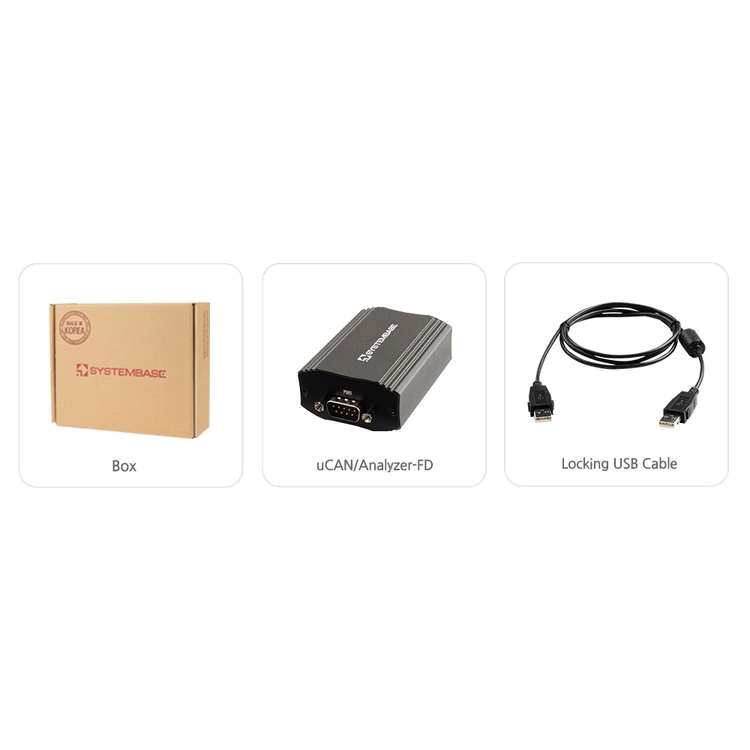

CAN is a highly reliable communication protocol developed for vehicles, transport systems, and industrial applications. SystemBase's uCAN/Analyzer-FD is a high-performance converter & analyzer that allows seamless CAN (CAN FD) utilization via USB (Universal Serial Bus).
uCAN/Analyzer-FD features a USB Type-A connection, supports high-speed 480Mbps USB communication, and works with both Classical CAN and CAN-FD, enabling easy setup of CAN/CAN-FD communication environments wherever USB is available. Built with strong protections against external ESD and surges, along with wide industrial operating temperature and humidity ratings, it delivers superior durability for reliable performance even in harsh, electronics-sensitive environments like factories.
CAN features ID-based priority communication, error detection, filtering, and more—making it widely used in safety-critical applications like vehicles and elevators. However, as non-connected devices grew and data traffic increased, standard CAN reached its performance limits. To overcome these constraints, CAN-FD (Flexible Data-rate) was developed. CAN-FD increases data capacity up to 64 bytes and boosts speeds up to 8x compared to standard CAN. Supporting up to 8Mbps high-speed communication under CAN-FD standards, SystemBase's uCAN/Analyzer-FD delivers up to 64 times the overall performance of legacy CAN.
Communication errors frequently occur in the field due to various factors. CAN is inherently resilient against such communication errors, automatically handling transient errors with automatic data processing while isolating persistent errors before they disrupt the entire network line. To resolve and improve these issue conditions, users need clear visibility into error counts and types. SystemBase's uCAN/Analyzer-FD features a built-in error checking mechanism that helps users effectively identify and troubleshoot runtime errors.
Additionally, uCAN/Analyzer-FD offers a DAR (Disable Auto Retransmission) feature that prevents automatic retransmission when transmission errors occur, thereby reducing network load on the CAN bus. It also provides ABOR (Automatic Bus Off Recovery), which automatically recovers from bus-off conditions, giving users flexible control tailored to their specific operational requirements.
With uCANAnalyzerFDUtil—the dedicated utility provided by SystemBase for uCAN/Analyzer-FD—users can conveniently view transmitted and received CAN data at a glance. It also supports custom CAN/CAN-FD configurations, data transmission, received data logging, and filtering, making it effortless to review and analyze data within CAN/CAN-FD environments.
| Specification | USB Specification Rev 2.0, High-Speed |
| Connector | USB Type-A (Locking/Latching) |
| Speed | Up to 480Mbps |
| Standard | ISO 11898-1:2015, ISO 11898-2:2016 |
| Specification | Classical CAN(2.0A/B), CAN FD |
| CAN Frame Format | Standard 11bit ID / Extended 29bit ID (CAN 2.0A/B) |

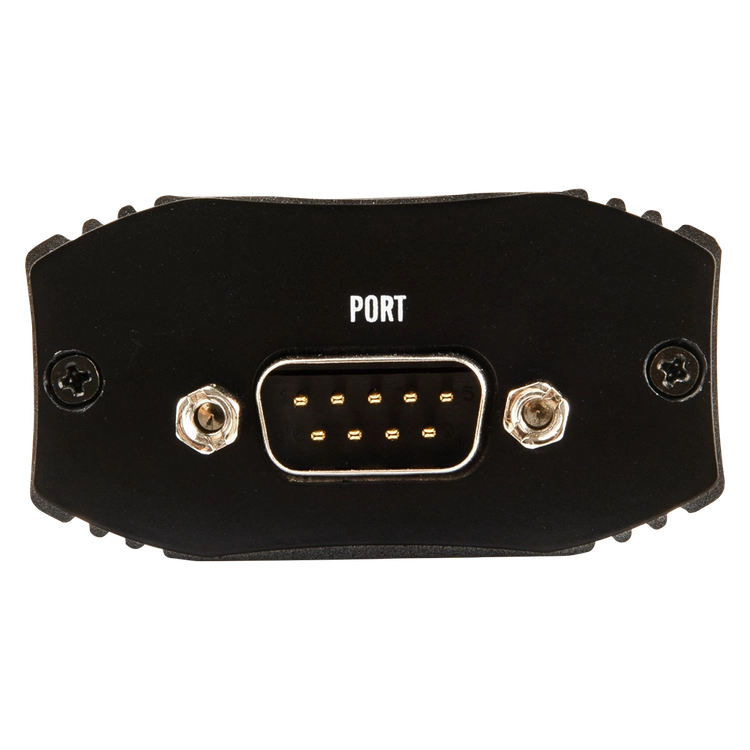

| CAN Port | 1 Port (DB0) |
| Maximum Communication Speed (CAN) | 1Mbps |
| Maximum Communication Speed (CAN FD) | 8Mbps |
| Signals | CAN_H, CAN_L , GND |
| ESD | ±15kV ESD(HBM) |
| Standards | KS C 9610-4-2(ESD) KS C 9610-4-4(EFT) KS C 9610-4-5(Surge) |
| Power | 5V 1A DC Input, Power Consumption : 0.5W |

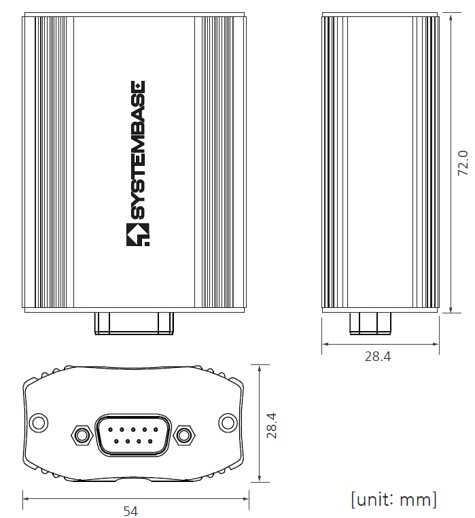

| Dimensions | 54(W) x 72(L) x 28.4(H) mm |
| Weight | Gross Weight: 214g, Product Weight: 92g |

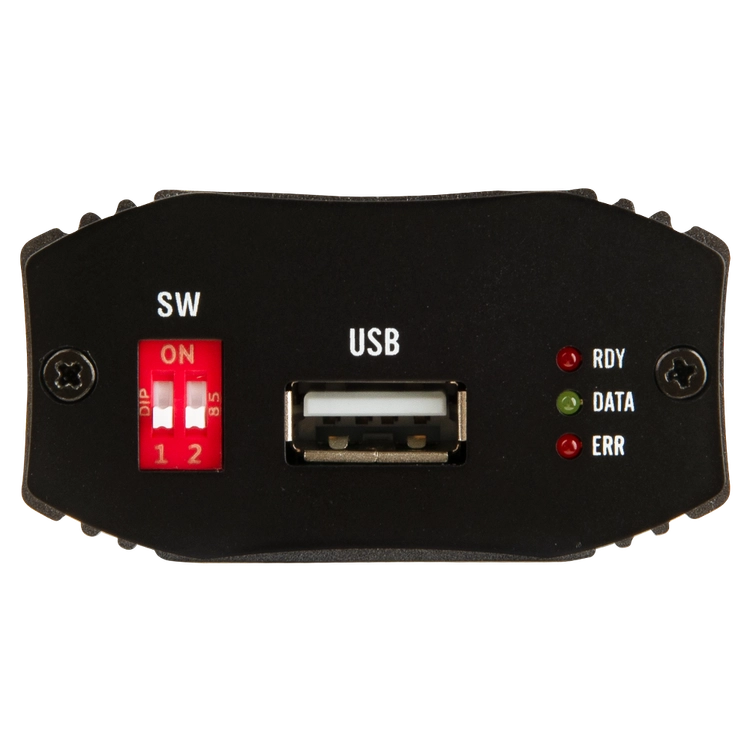

| LED | RDY(Yellow), DATA(Green), ERR(Red) |
| MTBF | 23,000,000 hrs |
| Utility | uCANAnalyzerFDUtil |
| Operating System | Windows 10 or later |
| Functions | CAN Monitoring / Device Configuration / Firmware upgrade |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 90% non-condensing |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
