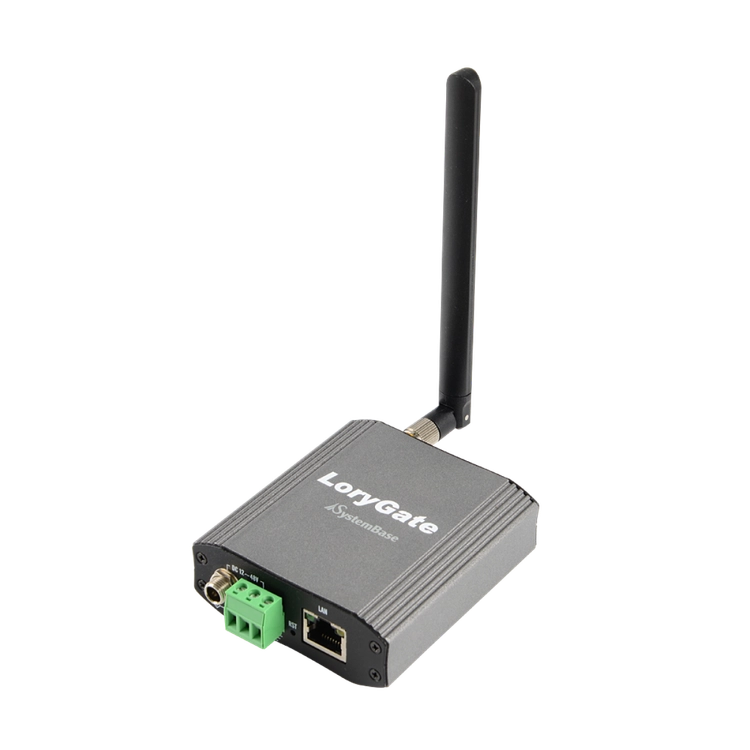

LoryGate is a compact wired/wireless device server that converts and transmits data collected through LoRa, a long-distance wireless communication technology, to an Ethernet network. This allows users to build and use an Ethernet-based mid- to long-range wireless network.
LoryGate provides LoRa and Ethernet interfaces and serves as a gateway that connects LoRa networks with Ethernet networks. It also collects data from various sensor nodes distributed throughout the LoRa network and links them to a server. SystemBase LoryGate can function as a simple server that can be accessed without a complex server system, and enables communication with devices connected to the LoRa network through an Ethernet network.
To meet high reliability and stability requirements in diverse usage environments, including industrial sites, LoryGate provides ESD protection that meets IEC61000-4-2 (ESD Level 4) specifications of ±8KV (contact), ±15KV (air discharge), and ±15KV (HBM). It also provides surge protection that meets IEC 61000-4-4 (40A) and IEC 61000-4-5 (24A) standards to prevent damage and malfunction caused by overcurrent entering through the power line and network connector. This provides protection against ESD, EFT, and surge that may occur unexpectedly in harsh industrial environments, enabling a more stable and reliable data communication environment.
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
