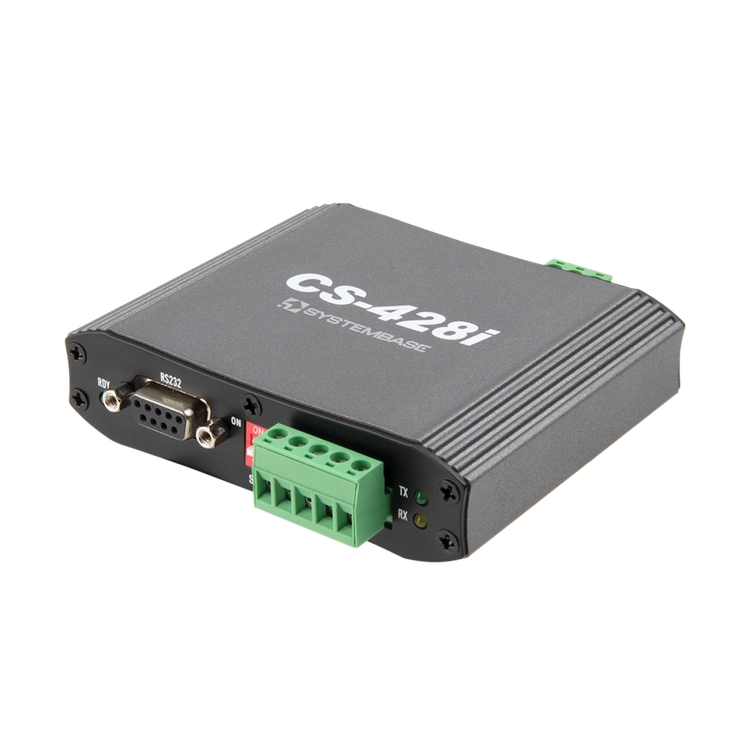

CS-428i V2.0 is an industrial-grade isolation converter that converts RS232 signals to RS422 or RS485 signals. It applies a 5kV digital isolator and provides standard ESD, EFT, and surge protection, along with a GDT (Gas Discharge Tube) that supports protection performance up to the kA range. It also applies PPTC (Polymeric Positive Temperature Coefficient), an overcurrent protection component similar to a fuse that can be reused once the overcurrent is removed, providing complete protection against external electrical shocks that may enter from the outside and damage expensive equipment. In addition, it is a top-grade high-performance converter that supports industrial temperature and humidity environments and provides highly flexible use of each device connected to the communication line through ID registration, setting, and release functions based on SystemBase’s 30 years of expertise.
CS-428i V2.0, an industrial serial converter, provides excellent protection against noise and surge generated in industrial sites. It meets KC and IEC 61000-4.2, 61000-4.3, and 61000-4.4 standards, and provides up to 15kV ESD Level 4 protection on the communication port. In addition, a ±5kV high-grade digital isolator is applied to prevent expensive equipment from being damaged by external electrical shocks. Developed with highly reliable components based on SystemBase’s proprietary technology, CS-428i V2.0 provides stable operation and excellent performance even under harsh and demanding industrial environments.
CMOS digital isolation is an isolation method that provides compact size, high isolation performance, and low power consumption, offering better performance and reliability than conventional optical opto-isolation. This function electrically isolates input and output signals, protecting the main unit from noise generated externally or strong electrical shocks caused by the operation of motors or actuators. When communicating with expensive equipment, isolation is required to protect valuable equipment at a low cost. With this isolation function, CS-428i V2.0 provides even longer service life and enhanced stability.
SystemBase CS-428i V2.0 provides stable operation under industrial temperature specifications of -40℃ to 85℃ and humidity conditions of 5 to 90%. It can also be used according to user environments through power specifications and input options suitable for various industrial sites.
Based on the expertise of SystemBase, Korea’s leading serial communication equipment company with more than 30 years of experience, CS-428i V2.0 provides a filtering function that allows data transmitted and received through the communication line to be selectively sent and received through ID registration, setting, and release functions without requiring a special protocol. This enables users to configure and operate communication networks more effectively when connecting numerous devices.
SystemBase provides various free utility programs for use with CS-428i V2.0.
TestView™: Provides functions to test the communication performance and stability of serial ports.
CS-428Config: Provides functions to configure the operating environment of CS-428i V2.0, as well as various additional functions such as ID registration, setting, release, and filtering.

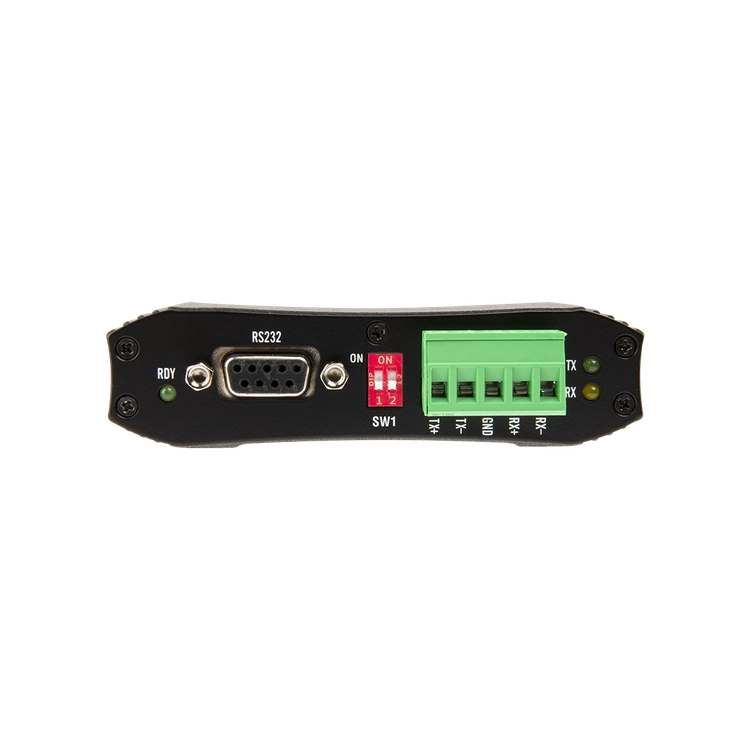

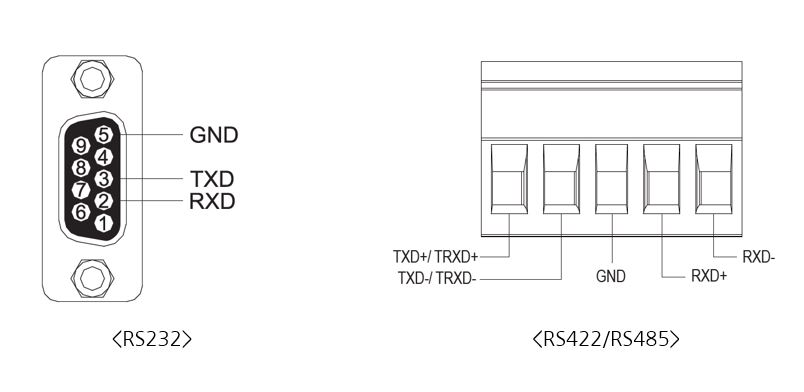

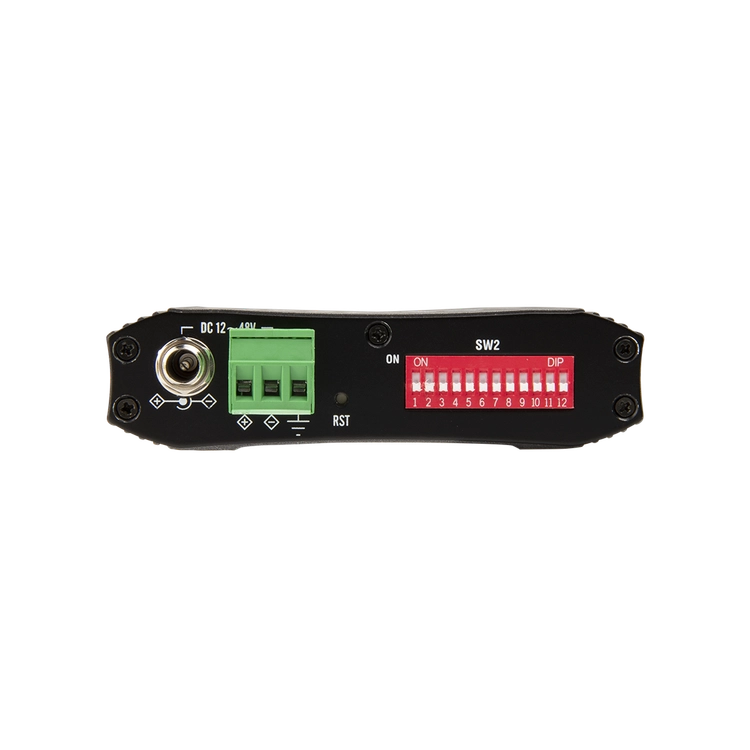

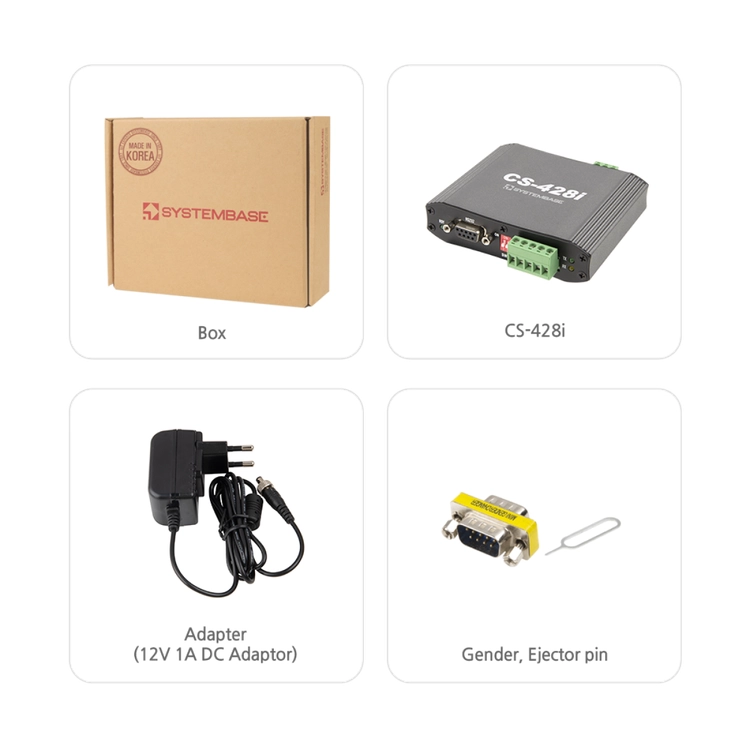

| Mode (RS232 Side) | DTE, DCE |
| Signal (RS232 Side) | TXD, RXD |
| Connector (RS232 Side) | DB9 Female |
| Mode (RS422/RS485 Side) | RS422 (4 Wire) RS485 (2 Wire) None Echo, Echo |
| Signal (RS422/RS485 Side) | RS422 : TXD+, TXD-, RXD+, RXD- RS485 : TRXD+, TRXD- |
| Connector (RS422/RS485 Side) | Terminal Block (5.08mm Pitch) |
| Data Bits | 8 |
| Stop Bits | 1, 2 |
| Parity Bits | None, Even, Odd |
| Data Transfer Speed | Max. 921.6kbps |
| Power Requirements | DC 12V to 48V / Power Consumption : 1.2W Using Terminal block (Min. 500mA, Recommend) |
| Power Connector (DC-Jack) | External : Φ5.5mm, Internal : Φ2.1mm |
| Power Connector (Terminal Block) | Pitch 5.08mm, 3Pin |
| Adapter | DC 12V 1A |
| Protection (ESD) | Max. ±15kV ESD |
| Protection Standard (IEC) | IEC 61000-4.2(ESD) : ±15kV IEC 61000-4.3(EFT) IEC 61000-4.4(Surge) : 500W |
| Impulse Discharge Current | 20,000A, 8/20μs, 1 operation minimum 10,000A, 8/20μs, 10 operations 200A, 10/1000μs, 300 operations 2,000A, 10/350μs, 1 operation 200A, 10/700μs, 500 operations |
| LED | RDY(Green), TXD(Green), RXD(Yellow) |
| Switch | Configuration and Termination On/Off Switch |

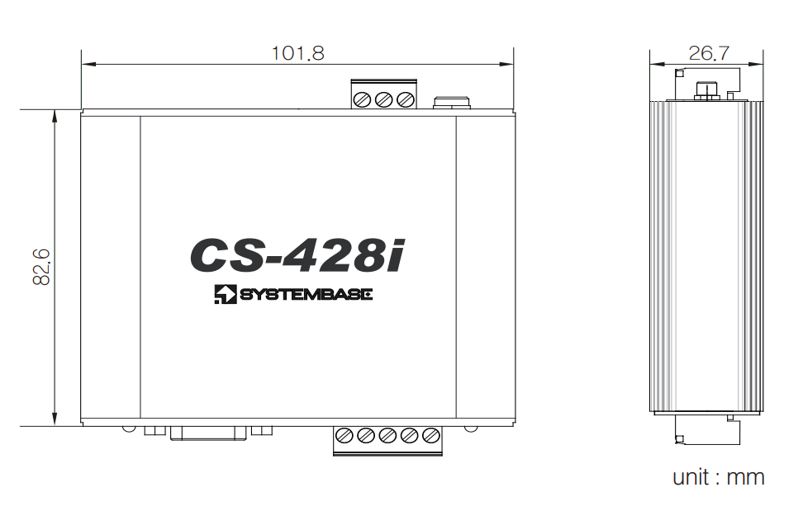

| Dimensions | 101.8(W) x 82.6(L) x 26.7(H)mm (without T.B) |
| Weight | Gross Weight : 658g / Product Weight : 192g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 90% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
