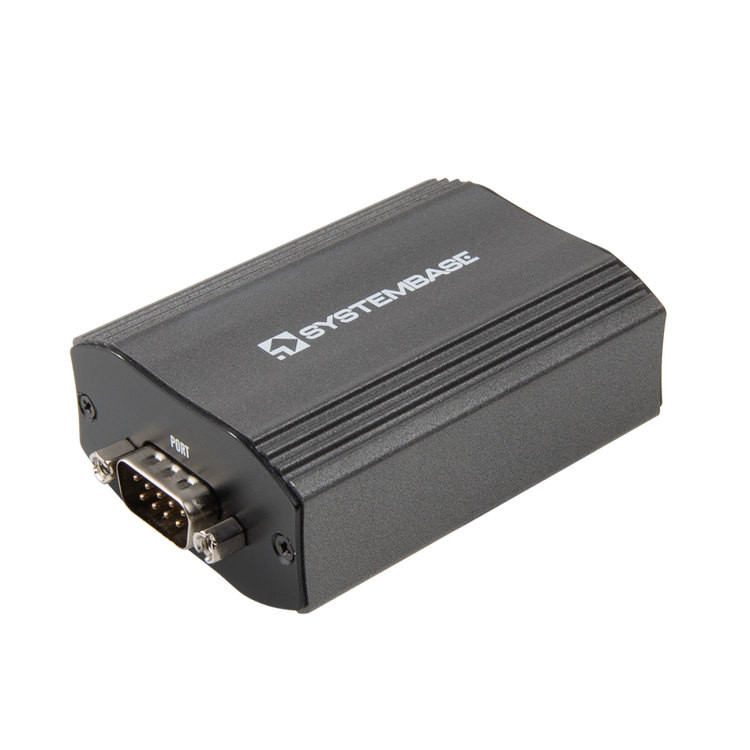

sLAN/all is an ultra-compact Serial-to-Ethernet converter that adds Ethernet connectivity to equipment using RS232, RS422, or RS485. It supports the IEEE 802.3 10/100Base-TX standard and brings RS232, RS422, and RS485 interfaces together in a single device, making it easy to integrate with a wide range of industrial equipment. It supports remote control, data collection, and monitoring over a TCP/IP network, and its COM Redirector utility lets existing serial-based programs run as-is, with no software modification required.
sLAN/all connects remote RS232, RS422, or RS485 equipment to an Ethernet network, making communication, control, and monitoring straightforward. Existing serial equipment can be integrated into network-based systems, enabling a more efficient operating environment for facilities and equipment.
sLAN/all, an ultra-compact industrial converter, includes ESD protection against overvoltage and static discharge, delivering stable communication performance across a wide range of industrial conditions. Its high-reliability components and design also ensure stable, long-term operation.
A range of free utility programs is available for use with sLAN/all.
COM Port Redirector: Creates a virtual COM port over the network, allowing existing serial programs to run as-is, with no software modification required.
SGConfig: A Windows configuration utility that makes it easy to set up the device's network and serial communication settings.
| LAN Port | 1 port, 10/100Mbps RJ45 |
| Network Connection | Static IP, dynamic IP |
| Protocol | TCP, UDP, ICMP, DHCP, HTTP, IPv4 |

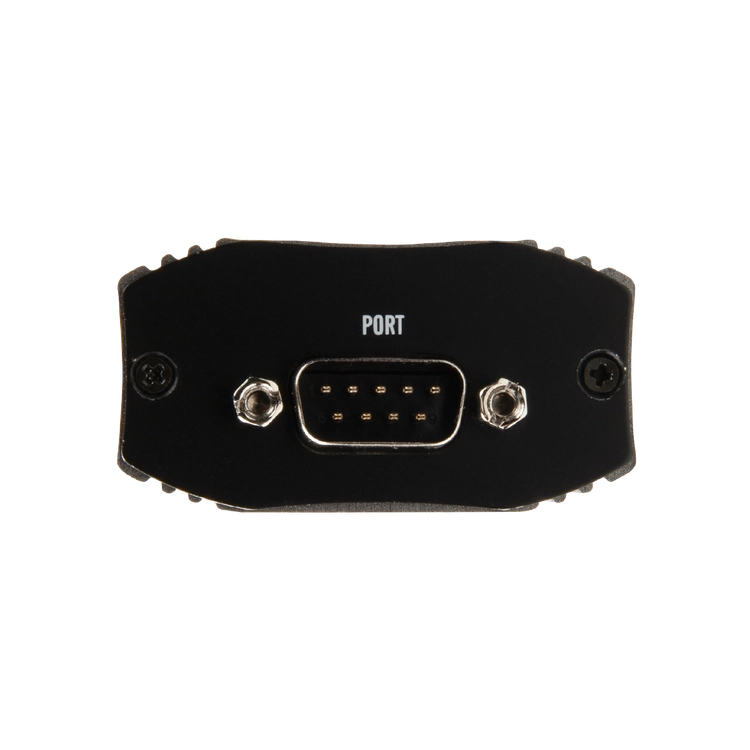

| Number of Ports | 1 port, DB9 Male (RS232 / RS422 / RS485) |
| Maximum Communication Speed | Max. 921.6Kbps |
| Data Bits | 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Flow Control | RTS/CTS |

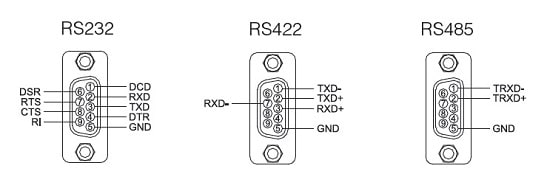

| Signals | RS232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND RS422: TXD+, TXD−, RXD+, RXD−, GND RS485: TRXD+, TRXD− |
| ESD | Contact: ±2kV to ±4kV Air: ±2kV to ±8kV |
| Standards | KS C 9610-4-2 (ESD) KS C 9610-4-4 (EFT) KS C 9610-4-5 (Surge) |
| Power Input | DC 5V, 1A or higher Max. 1.25W / Operating 1W / Standby 0.5W |
| Power Connector | Φ3.5mm outer / Φ1.35mm inner |

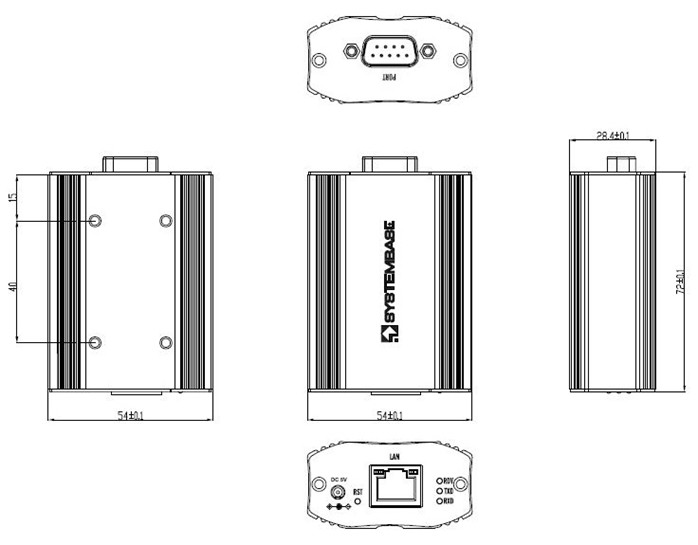

| Dimensions | 54(W) × 72.0(L) × 28.4(H) mm |
| Weight | 322g total / 100g product weight |

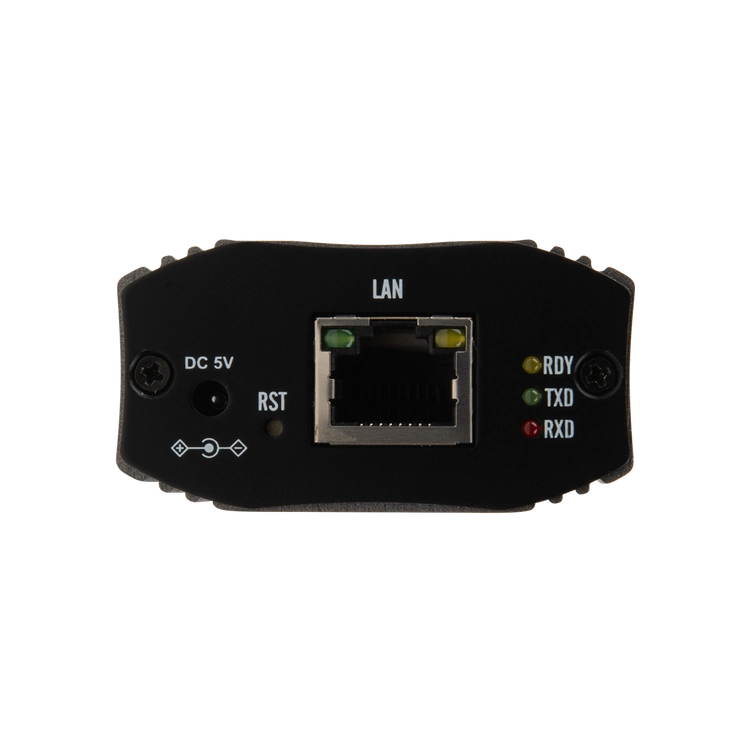

| LED | RDY (Yellow), TXD (Green), RXD (Red) |
| MTBF | 1,448,154 hours |
| OS | RTOS |
| Management Tools | Web, TestView™ |
| Configuration | Web, SGConfig |
| Supported OS | Windows 7 or later |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5–95% non-condensing |
| Certifications | KC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
