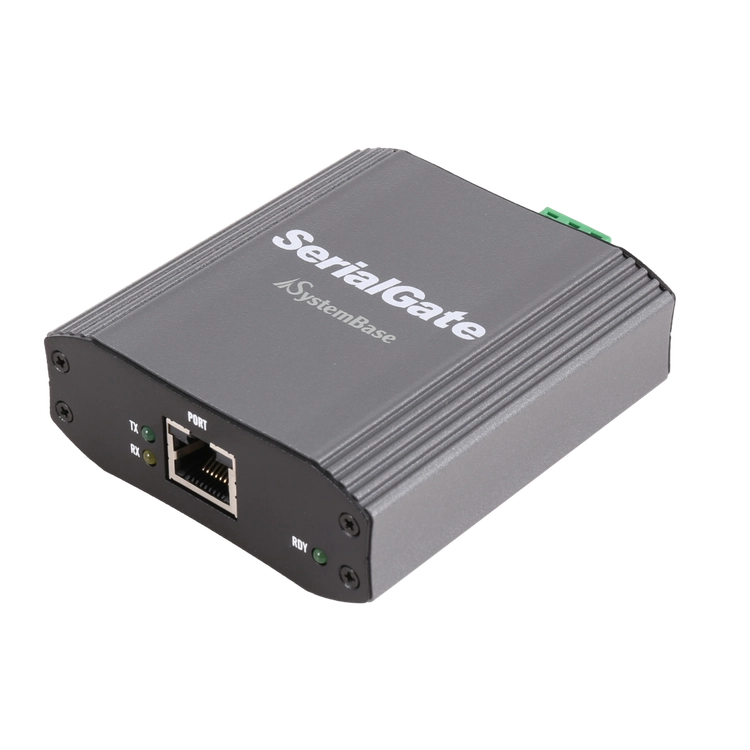

SG-2011RIL/ALL is an industrial 1-port device server that lets an RJ45-type serial port be used anytime, anywhere over an Ethernet network. It supports serial communication speeds of up to 921.6Kbps, with built-in support for RS232, RS422, and RS485 serial interfaces along with the Modbus RTU/ASCII protocol. Its COM Port Redirector enables network-based remote control, data collection, and monitoring without modifying existing serial programs, making it well suited for applications such as POS systems, hospitals, factories, and building automation.
SG-2011RIL/ALL provides a dual power system suited to industrial conditions. It supports both terminal block and DC adapter power, allowing flexible adaptation to a wide range of installation environments, and its lock-ring power connector helps prevent accidental disconnection from vibration or impact. It also supports an industrial operating temperature range of -40℃ to 85℃, ensuring stable communication even in harsh environments.
SG-2011RIL/ALL features ±15kV ESD protection based on IEC 61000-4-2, along with protection circuitry that satisfies IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge), safeguarding equipment from electrical disturbances commonly encountered in industrial settings. Together, these features deliver a more stable and reliable data communication environment.
COM Port Redirector: Creates a virtual COM port, allowing existing serial programs to run as-is.
PortView™: Monitors and diagnoses serial communication status in real time.
TestView™: Tests the performance and stability of serial and Ethernet ports.
SGConfig™: A management utility that makes it easy to configure the network and serial environment.
| Protocols | TCP, UDP, Telnet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL, Modbus TCP |
| LAN | 1x 10/100 Mbps RJ45 port (Auto-MDIX supported) |
| Addressing | Static IP, DHCP |
| Number of Ports | 1 serial port (RJ45) |
| Interface | RS232 / RS422 / RS485 |
| Maximum Communication Speed | Max. 921.6Kbps |

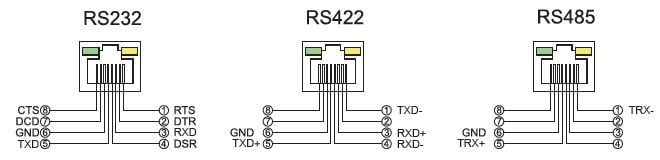

| Signals | See pin diagram |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Flow Control | RTS/CTS, XON/XOFF |
| OS | Embedded Linux |
| Management Tools | COM Port Redirector, PortView™, TestView™, SGConfig, Web, SNMP |
| Configuration | Web, SSH, Telnet, SGConfig |
| Security | SSH |
| Supported OS | Windows 7 or later, Windows Server 2008 or later |

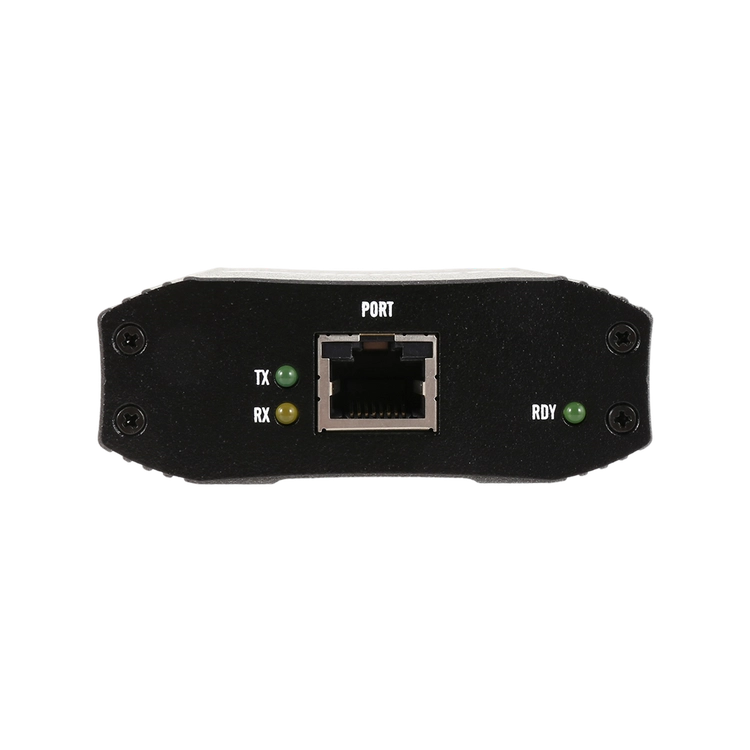

| LED | RDY (Ready), Serial (TX, RX) |

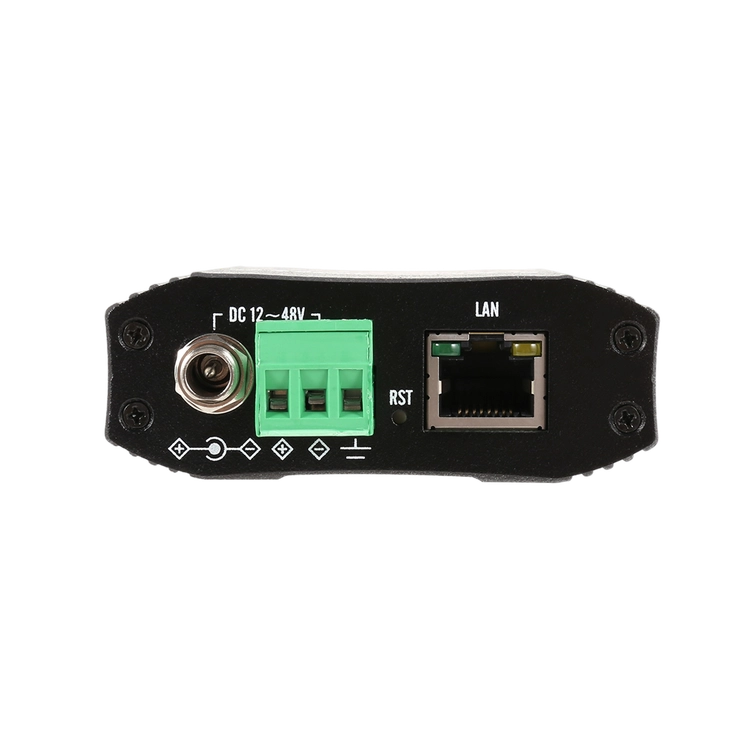

| Power Input | DC 12V–48V, terminal block (VCC/GND/FGND), 2W power consumption [DC 12V/1A adapter (screw type) included, Φ5.5mm outer / Φ2.1mm inner, replaceable-plug adapter certified to KC/CE/FCC/UL/UKCA/CCC/TÜV/PSE] |
| MTBF | 181,019 hours |

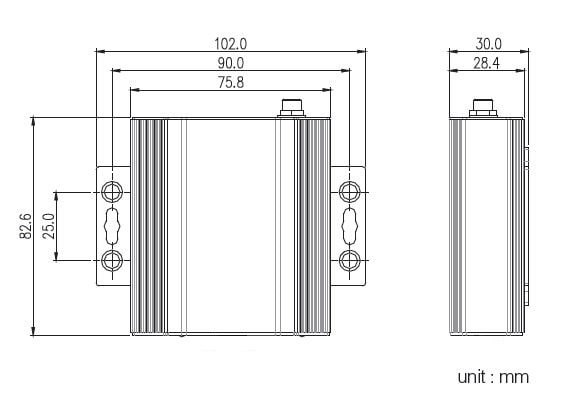

| Dimensions | 75.8(W) × 83.6(L) × 28.4(H) mm |
| Weight | 166.6g (ALL), 163.2g (232) |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -60 to 150℃ |
| Humidity | 5–95% non-condensing |
| Certifications | KC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
