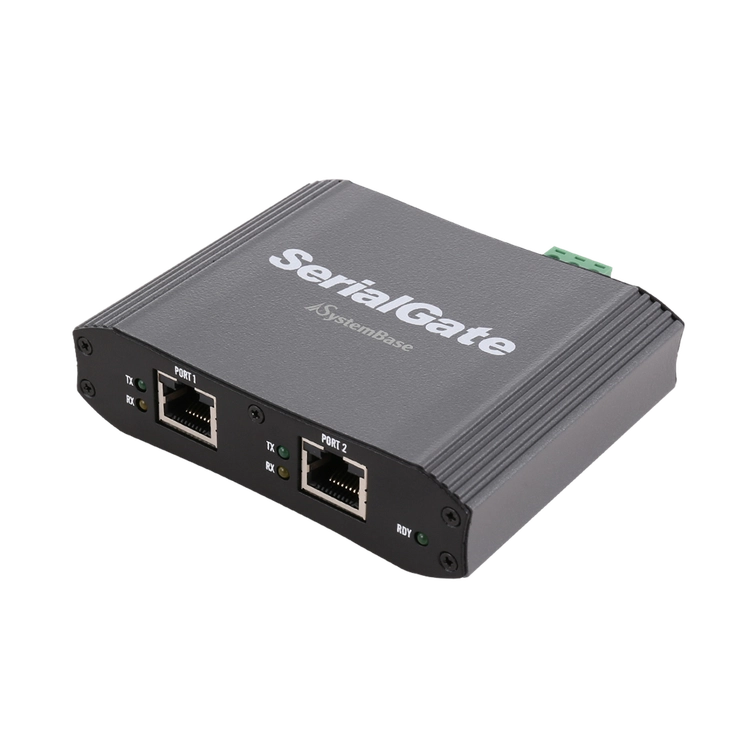

SG-2021RIL/ALL is a 2-port industrial device server that allows RJ45-type serial ports to be used anytime, anywhere over an Ethernet network. It supports serial communication speeds of up to 921.6Kbps and provides RS232, RS422, RS485 interfaces and Modbus RTU/ASCII protocols by default. With COM Port Redirector, existing serial devices can be used in a network environment without modifying existing software programs. It can be used as a remote control and data acquisition solution across various industrial environments, including factory automation, building control, POS, and medical equipment.
SG-2021RIL/ALL provides a dual power system that supports both terminal block and DC adapter power input, allowing flexible installation in a wide range of environments. An industrial power adapter with a lock-ring structure is included as standard, and the device supports an industrial operating temperature range of -40℃ to 85℃ for stable operation even in harsh field environments.
SG-2021RIL/ALL is equipped with ±15kV ESD protection based on IEC61000-4-2, along with protection circuitry that meets IEC61000-4-4 (EFT) and IEC61000-4-5 (Surge) standards. This helps protect the device from electrical shocks that may occur in industrial environments, providing stable network and serial communication.
COM Port Redirector : Creates network-based virtual COM ports so existing serial programs can be used without modification.
PortView™ : Provides serial port status monitoring and diagnostic functions.
TestView™ : Tests the communication performance and stability of serial and Ethernet ports.
SGConfig™ : A management program that enables easy configuration of network and serial environments.
| Protocol | TCP, UDP, Telnet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL, Modbus TCP |
| LAN | 1 x 10/100Mbps RJ45 Port (Auto-MDIX support) |
| Network Connection | Static IP, DHCP |
| Number of Ports | 2 Serial Ports (RJ45) |
| Interface | RS232 / RS422 / RS485 |
| Maximum Communication Speed | Up to 921.6Kbps |

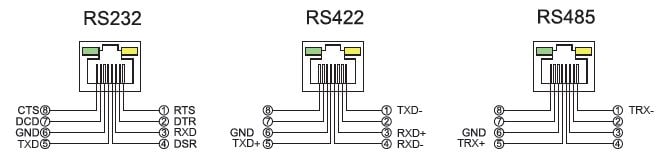

| Signal | See Pin Diagram |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity Bits | None, Even, Odd |
| Flow Control | RTS/CTS, XON/XOFF |
| O/S | Embedded Linux |
| Management Tools | COM Port Redirector, PortView™, TestView™, SGConfig™, Web, SNMP |
| Configuration | Web, SSH, Telnet, SGConfig™ |
| Security | SSH |
| O/S Support | Windows 7 or later, Windows Server 2008 or later |

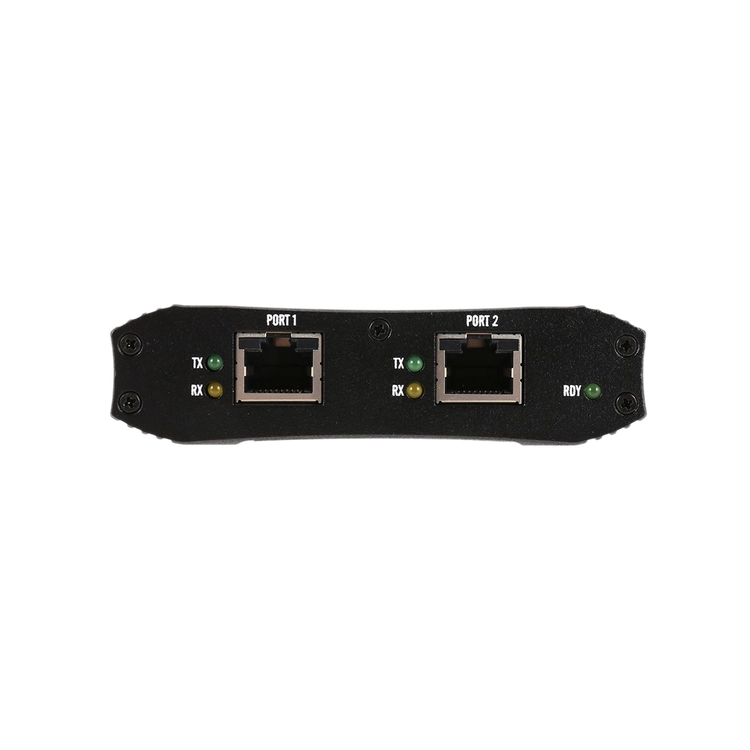

| LED | RDY(Ready), Serial(TX, RX) |

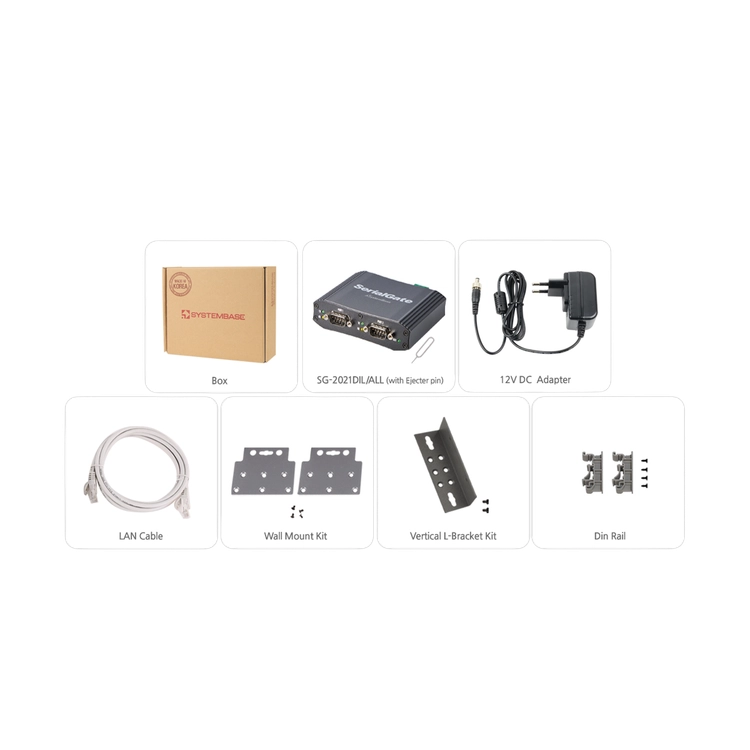

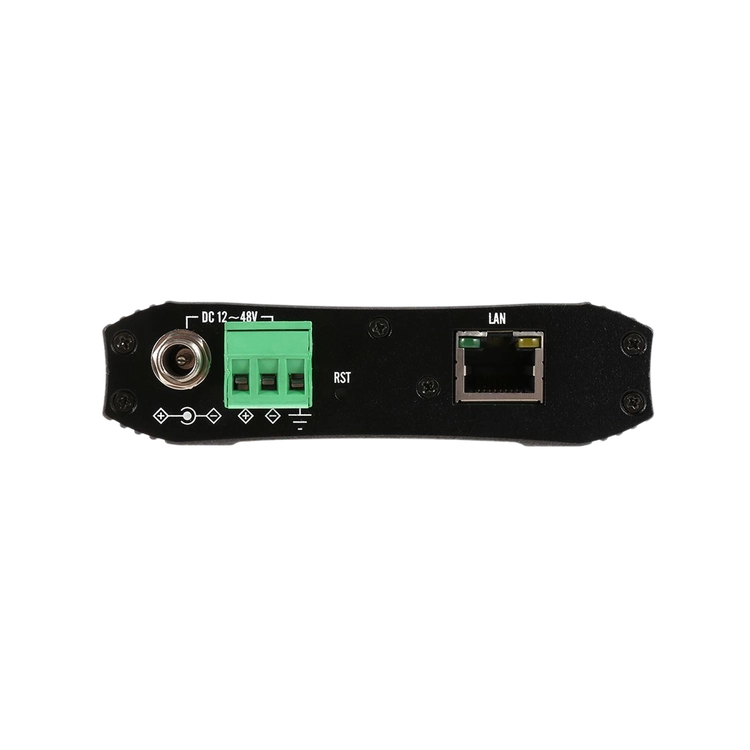

| Power Input | DC 12V to 48V, Terminal Block (VCC/GND/FGND), Power Consumption: 2.8W [DC 12V/1A Adapter (Screw Type) included as standard, outer diameter 5.5mm, inner diameter 2.1mm, interchangeable plug adapter supporting KC/CE/FCC/UL/UKCA/CCC/TÜV/PSE certifications] |
| MTBF | 181,019hrs |

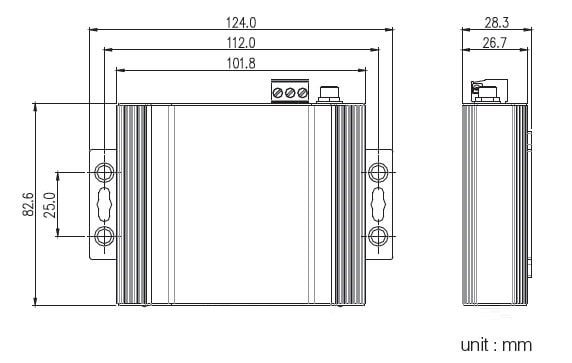

| Dimensions | 101.7(W) x 83.6(L) x 26.8(H)mm |
| Weight | 191.1g(ALL), 190.8g(232) |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -60 to 150℃ |
| Humidity | 5 to 95% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
