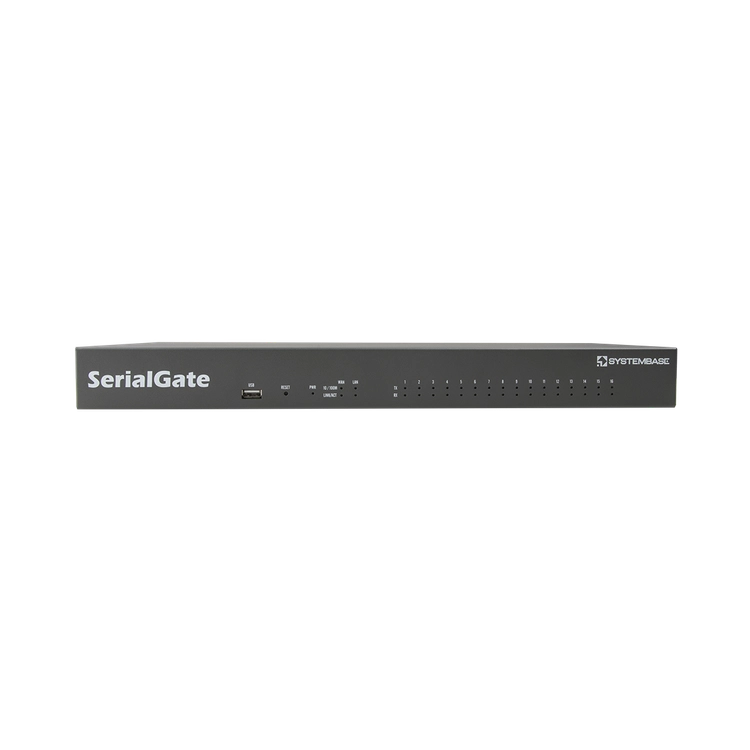

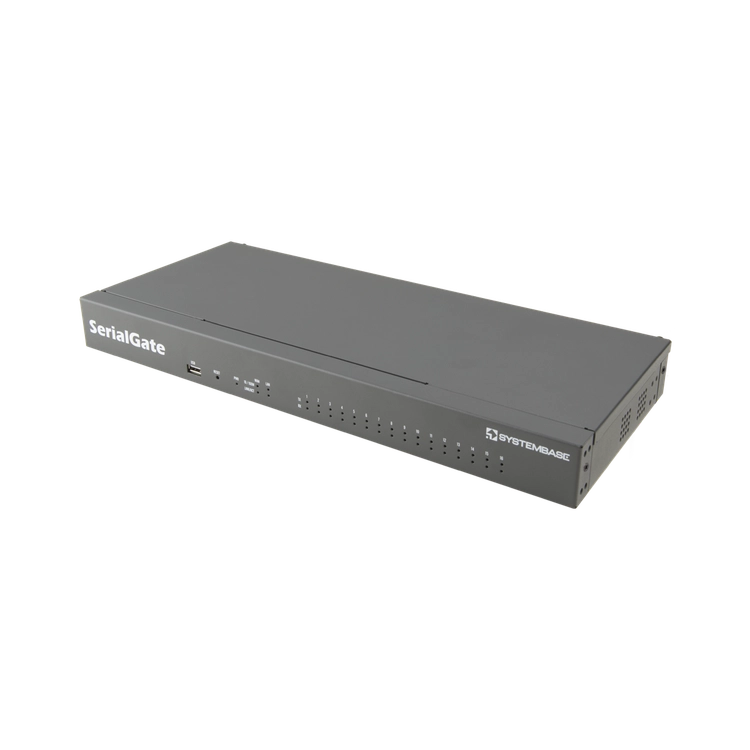

SG-1161RIL/ALL is a 16-port device server that allows RJ45-type serial ports to be used anytime, anywhere over an Ethernet network. Connected through an Ethernet port, SG-1161RIL/ALL supports serial communication speeds of up to 921.6Kbps, supports RS232/RS422/RS485 serial communication standards and Modbus by default, and is a 19-inch rack-type product. SystemBase device servers provide a COM Port Redirector program to support remote control, monitoring, and data communication of devices connected over a network, allowing connected serial devices to be used immediately without modifying existing programs. SystemBase SG-1000 and 2000 Series are versatile device servers that can be used for control, monitoring, and automation in various fields such as POS, hospitals, factories, and buildings.

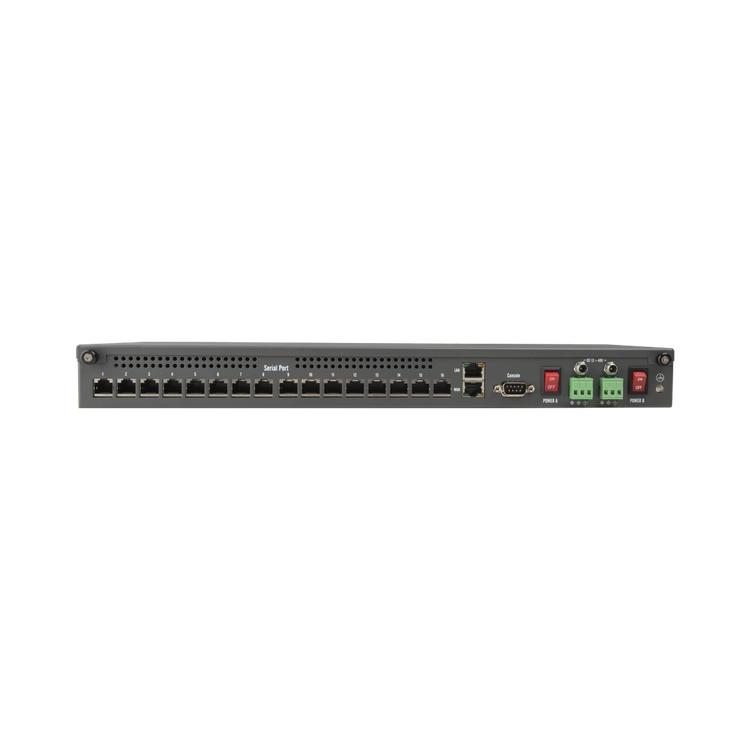

SG-1161RIL/ALL provides an industrial-grade dual power system that can be flexibly used in various user environments. Designed with unstable industrial power environments in mind, SG-1161RIL/ALL provides a dual power system, allowing users to flexibly configure the power input according to their usage environment using a terminal block or DC power adapter. The DC power adapter for the SG-1000 and 2000 Series applies screw-type locking to prevent the power plug from disconnecting. In addition, SG-1161RIL/ALL is an industrial device server that has passed the IEC 60028-2-33 temperature cycle test from -40℃ to 85℃ and the IEC 60068-2-30 temperature and humidity environment test, supporting stable operation under harsh industrial environments and demonstrating high reliability and stability.
To meet high reliability and stability requirements in diversified usage environments, including industrial environments, SG-1161RIL/ALL provides ESD protection that satisfies IEC61000-4-2 (ESD Level 4) standards of ±8kV contact, ±15kV air discharge, and ±15kV HBM. In addition, to prevent damage and malfunction caused by overcurrent entering through the power input and network connector, it provides surge protection that satisfies IEC 61000-4-4 (40A) and IEC 61000-4-5 (24A) standards, offering protection against accidental ESD, EFT, and surge events in harsh industrial sites and enabling a more stable and reliable data communication environment.
SystemBase provides various free utility programs for use with the SG Series.
COM Port Redirector : A virtual serial port program that enables users to easily create virtual serial ports from anywhere and provides serial communication functions without complex configuration or software changes.
PortView™ : Provides monitoring, diagnosis, and management functions for serial port communication status.
TestView™ : Provides functions to test the communication performance and stability of serial and Ethernet ports.
SGConfig : Provides functions to configure the network environment of SG products and the operating environment of each serial port.
| Protocol | TCP, UDP, Telnet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL |
| LAN | 2 x 10/100 Mbps RJ-45 Ports |
| Network Connection | Static IP, DHCP |
| Number of Ports | 16 Serial Ports |
| Interface | RS232/RS422/RS485 (RJ45) |
| Maximum Communication Speed | Max 921.6kbps |

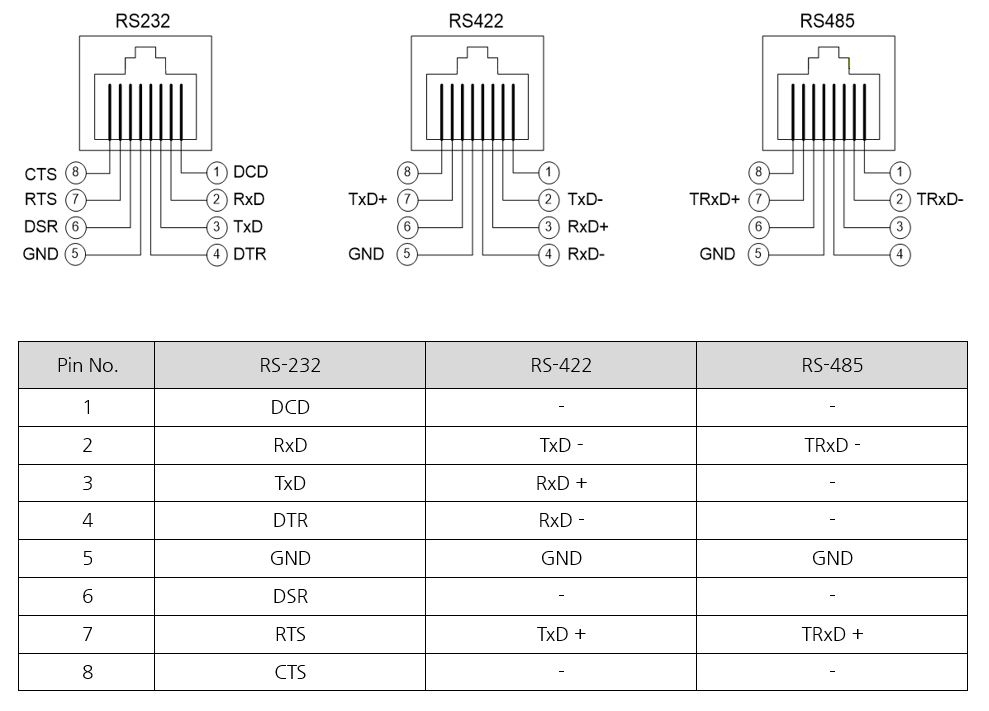

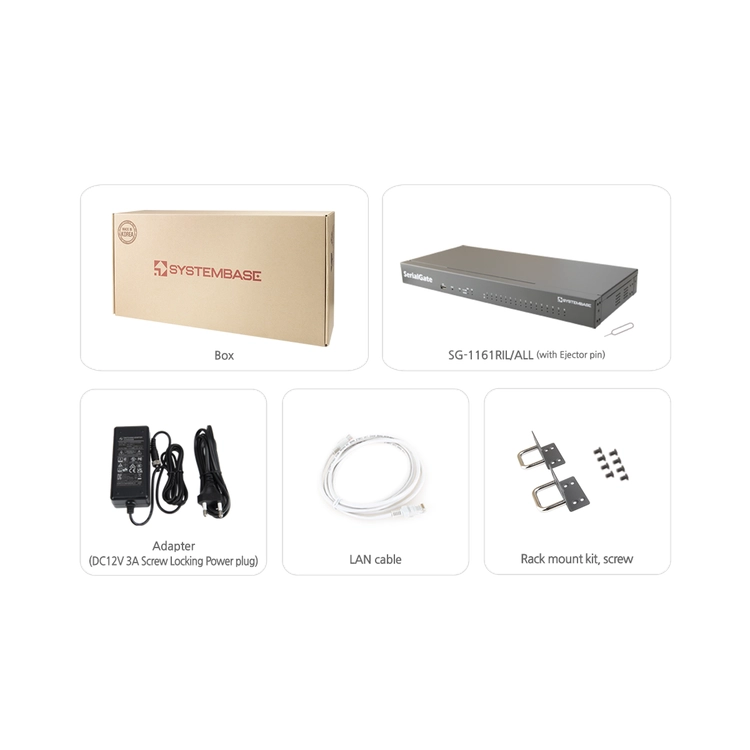

| Signal | See Pin Diagram |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Flow Control | RTS/CTS, XON/XOFF |
| Processor | ARM926EJ-S(400MHz) |
| Flash Memory | 8 MB |
| RAM | 32 MB |
| LED | Power, LAN/WAN(Link, Speed), Serial Communication Traffic Indicator |
| Power Input | DC 12 to 48V Adapter or Terminal Block, Power Consumption: 7.2W(Dual Power) [DC 12V/3A Adapter(Screw Type) included as standard, outer diameter 5.5mm, inner diameter 2.1mm AC cord connection type adapter supporting KC/CE/FCC/UL/UKCA/CCC/TÜV/PSE certifications] |
| MTBF | 181,019hrs |

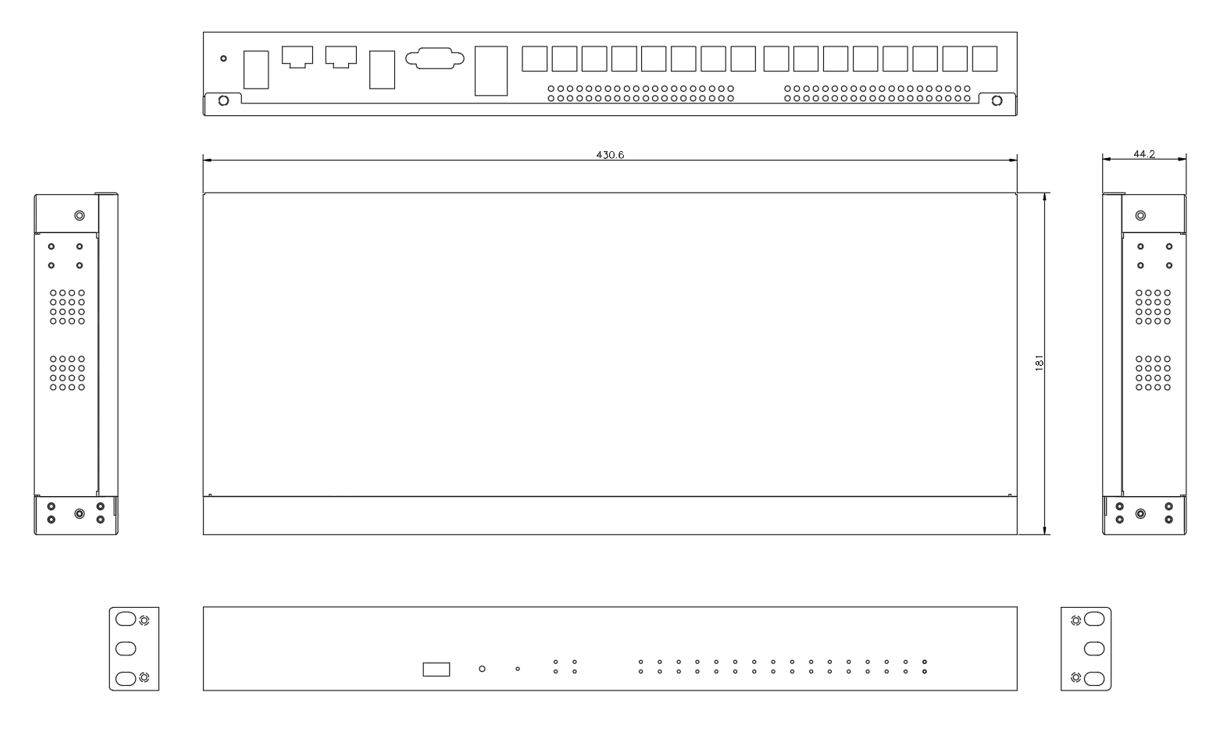

| Dimensions | 430.6(W) x 181(L) x 44.2(H)mm |
| Weight | 2,480g |
| Operating Temperature | -40℃ to 85℃ |
| Humidity | 5 to 95% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
