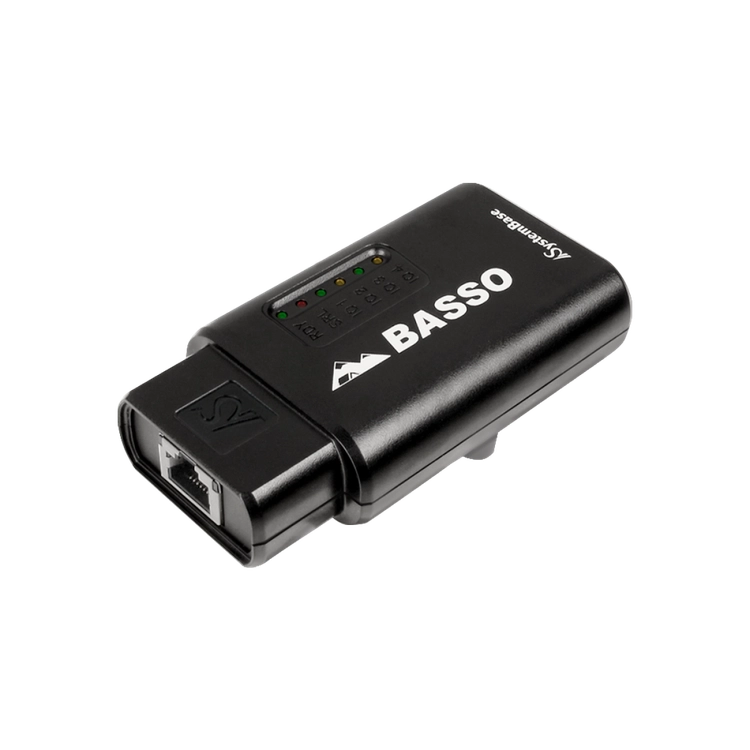

BASSO-1040TL/DIO is an Ethernet to DIO converter that connects digital input and output devices, used with contact switches, sensors, measuring instruments, or control devices widely used in industrial sites, to Ethernet. In industrial sites such as factories, digital input and output devices are used in various areas such as communication with PLCs and the control and measurement of machines and facilities through PLCs. BASSO-1040TL/DIO enables remote control and monitoring of Digital I/O devices connected over a network (TCP/IP). Equipped with the Modbus protocol, it is a multifunctional device that provides reliable communication for various user environments.
By connecting digital sensors and measuring devices over a network (TCP/IP), it enables monitoring and remote control of Digital I/O devices from anywhere the network is connected. With Modbus protocol support, it can perform functions required in various user environments.
Designed with the characteristics of unstable industrial environments in mind, BASSO-1040TL/DIO applies protection measures against electrical shocks such as overvoltage entering through the input/output and serial ports. By using highly reliable components, it provides both excellent reliability and high performance.
A free utility program is provided for use with BASSO-1040TL/DIO.
BASSO-IO Config : A simple Windows configuration utility that provides easy and convenient configuration functions.

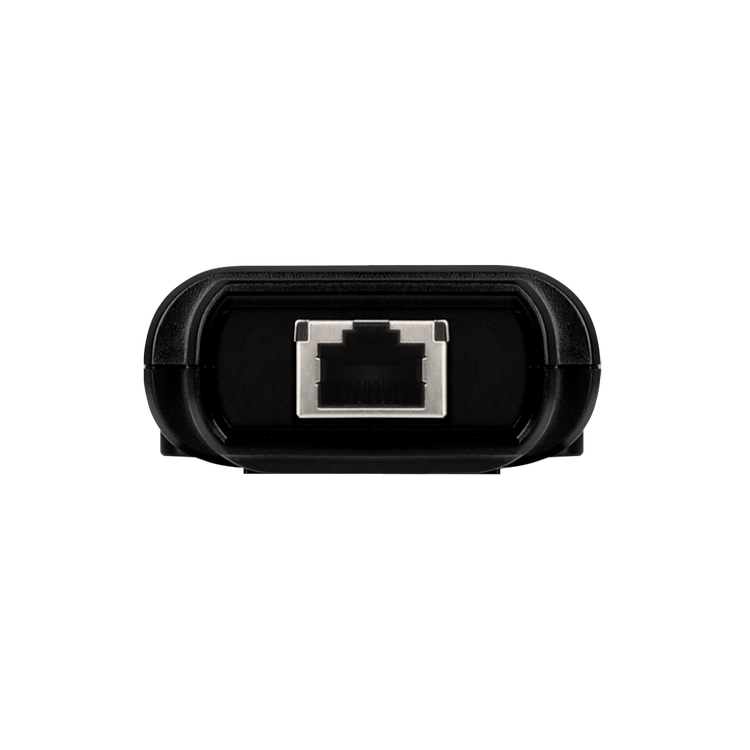

| LAN | 1 x 10/100Base-T(X) RJ45 Connector |
| Protocol | Modbus TCP, Modbus RTU/ASCII, TCP, UDP, ICMP, DHCP, HTTP, IPv4 |
| Configuration | Web, BASSO-IO Config (Windows Utility) |

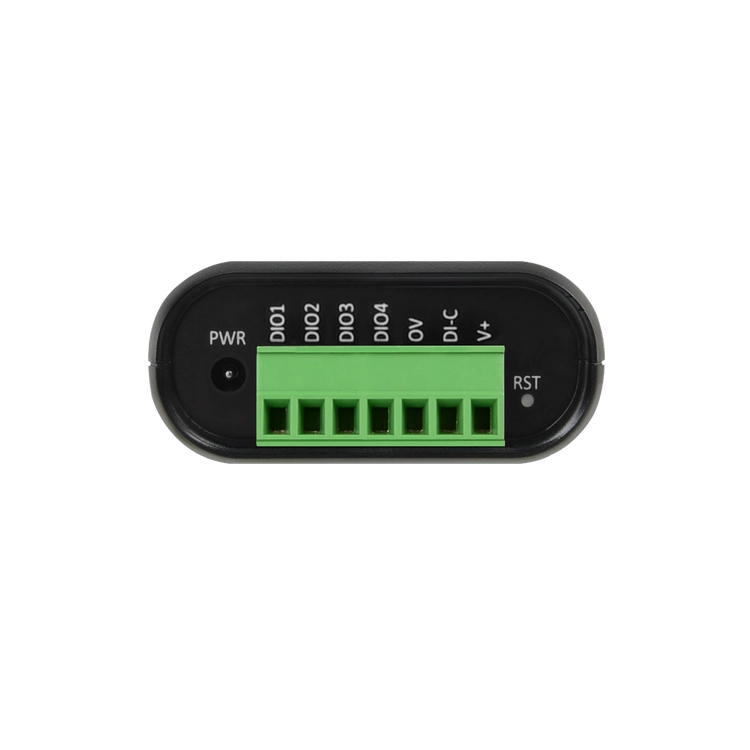

| Ports | 4 Channels (Wet Contact) |
| Mode | DI or Event Counter (1kHz) |
| Input Voltage | 5 to 24V DC |
| Ports | 4 Channels (Sink) |
| Mode | DO or Pulse Output (500Hz) |
| Output Current | 500mA per Channel |
| Maximum Voltage | 12 to 24V (Terminal Block) |
| LED | RDY(Green), SRL(Red), DIO1&3(Green), DIO2&4(Yellow) |
| Power | DC 5V to 24V, DC-Jack, Power Consumption: 120mW [DC 5V/1A Adapter, Power Consumption: 1W, outer diameter 4.2mm, inner diameter 1.35mm, plug-replaceable adapter supporting KC/CE/FCC/UL/UKCA/CCC/TÜV/PSE certifications] |
| Circuit Protection | KS C 9610-4-2(ESD): up to ±15kV ESD(HBM) KS C 9610-4-4(EFT): port protection KS C 9610-4-5(Surge): 350W port protection |
| Isolation | 1500Vrms for 1 minute |
| Dimensions | 99.3(W) x 54.5(L) x 24.5(H) mm |
| Weight | 68g |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
