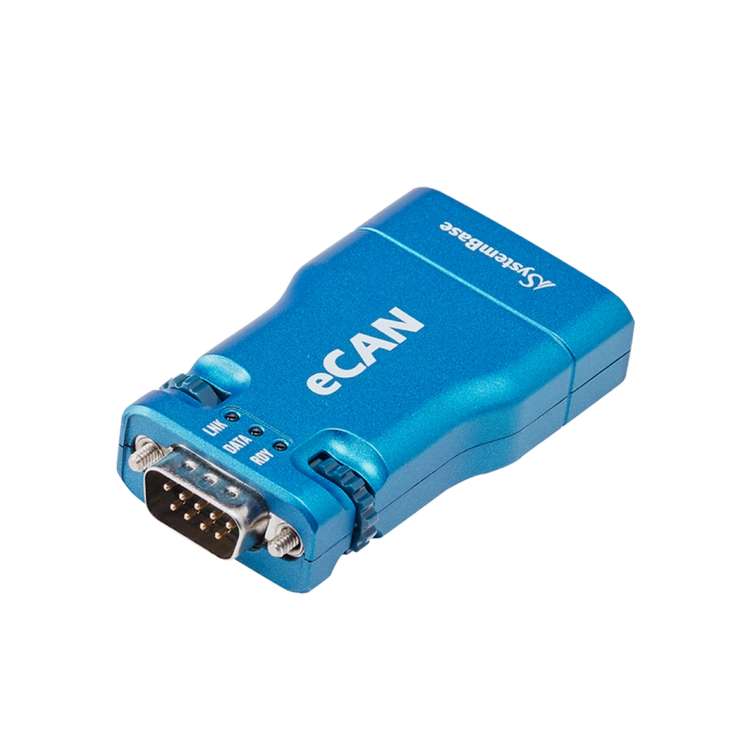

eCAN is a compact gateway converter that connects to a CAN bus over an Ethernet network to transmit and receive CAN frames. Supporting CAN 2.0A/B standards, eCAN is a high-performance gateway converter that supports communication speeds of up to 1Mbps on the CAN side and up to 100Mbps on the Ethernet side. Users can easily operate the product through the GUI-based integrated utilities eCANView and eCANConfig.
SystemBase eCAN provides TCP/UDP protocols and a COM Redirector program to support remote control, monitoring, and data communication for CAN devices connected over a network (TCP/IP), allowing connected devices to be used without modifying existing software. It is a versatile gateway converter for various applications.
eCANView is a GUI-based integrated test/monitoring utility that can transmit and receive CAN data. Users can transmit CAN data in the desired format at desired intervals and use received data for monitoring. Transmitted and received data can also be saved according to user settings and used for data analysis.
eCAN provides configuration methods that can be used in various environments. Using the Windows utility eCANConfig, users can conveniently and easily check, change, and save product settings. Through the web page-based web server, product settings can also be changed regardless of the operating environment.
Designed with the characteristics of various field environments in mind, eCAN applies protection measures against electrical shocks such as overvoltage entering through the Ethernet or CAN ports. By using highly reliable components, it provides both excellent reliability and high performance.
Various utility programs are provided for use with eCAN.
COM Redirector : A virtual serial port program that enables users to easily create virtual ports from anywhere and provides serial-based communication functions without complex configuration or software changes.
eCANView : Provides functions to test and monitor the communication performance and stability of CAN and Ethernet ports.
eCANConfig : A simple Windows configuration utility that provides easy and convenient configuration functions.
| Protocol | TCP, UDP, DHCP, ICMP, HTTP |

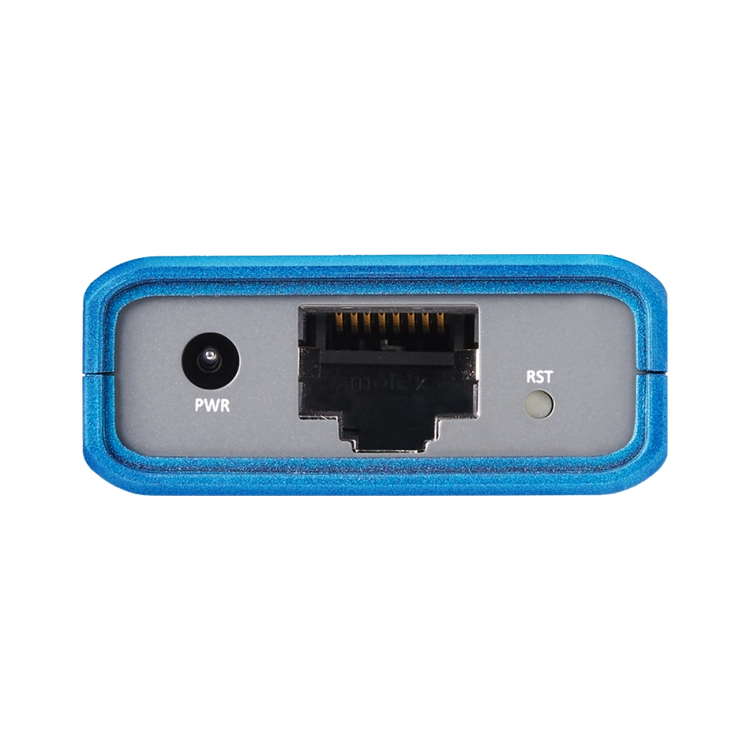

| Ethernet | 10/100Mbps, 1 x RJ45 Port |
| Network Connection | Static IP, DHCP |

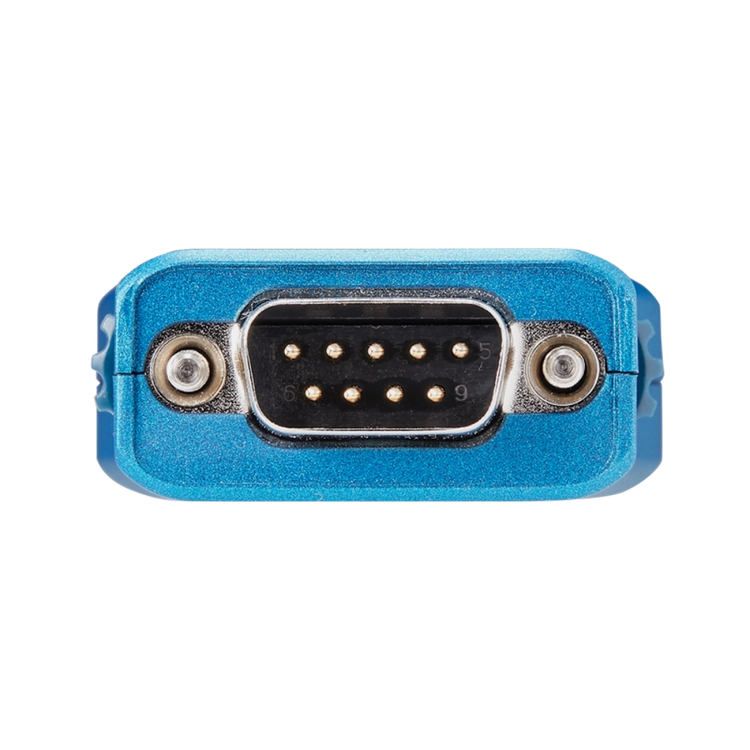

| Interface | DB9 Male |
| Number of Ports | 1 Port |
| CAN Communication Standard | CAN 2.0A & 2.0B |
| Maximum Communication Distance | 1km |
| Maximum Communication Speed | 1Mbps |

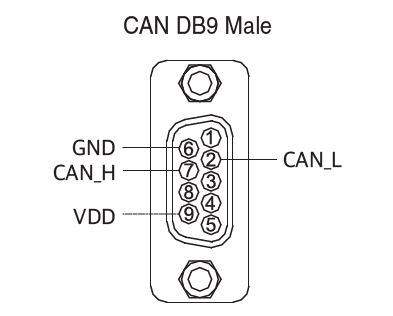

| Signal | CAN_H, CAN_L, VDD, GND |
| O/S | RTOS |
| Configuration | Web, eCANConfig |
| O/S Support (Utility) | Windows 7 or later Windows Server 2008 or later |
| LED | RDY, DATA, LNK |

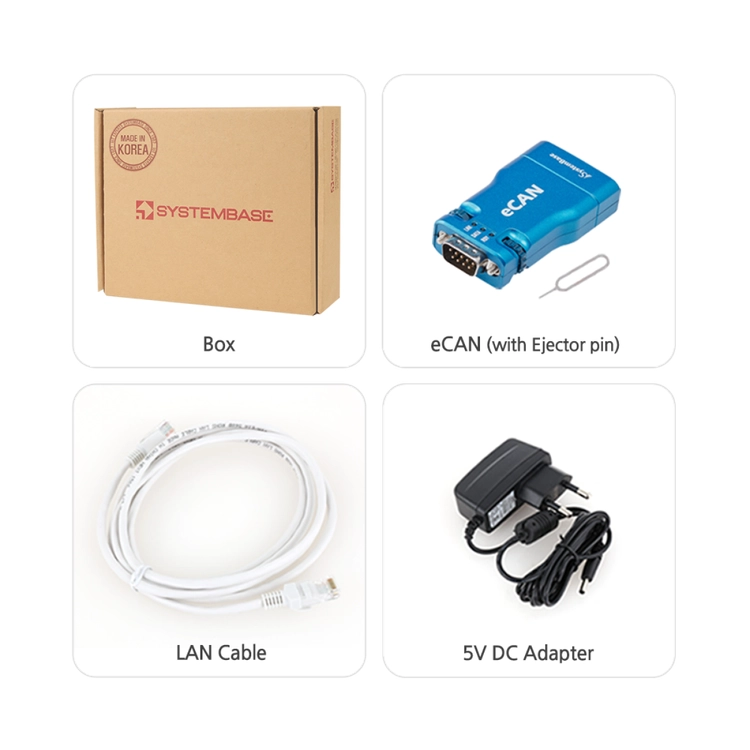

| Power | DC 5V/1A Adapter, Power Consumption: 0.95W Outer diameter 3.5mm, inner diameter 1.35mm Plug-replaceable adapter supporting KC/CE/FCC/UL/UKCA/CCC/TÜV/PSE certifications |

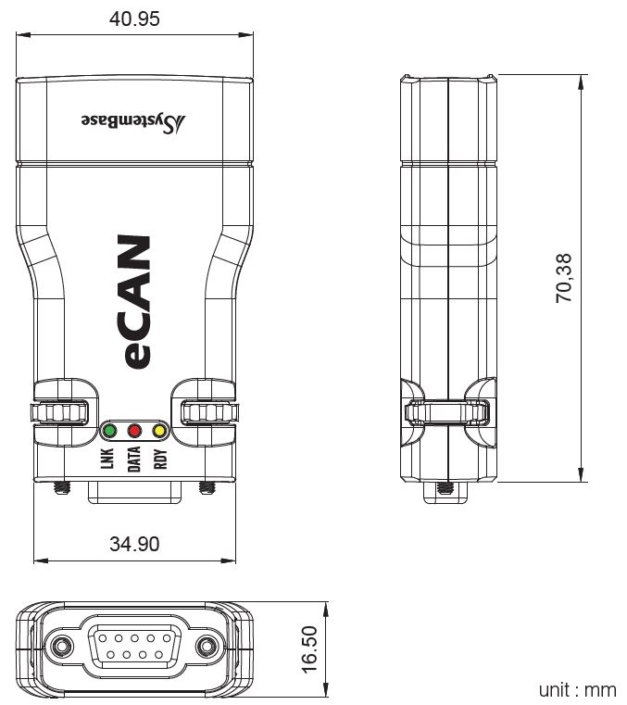

| Dimensions | 40.9(W) x 74(L) x 16.5(H) mm |
| Weight | 33.9g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 95% non-condensing |
| Certifications | FCC, CE, KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
