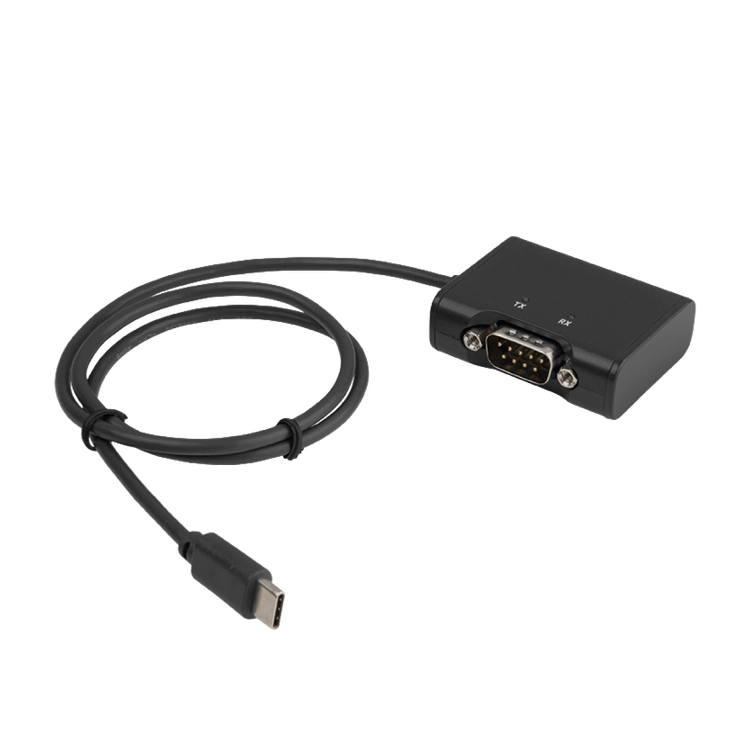

Multi-1/USB-C 232 is a USB to serial converter that adds a serial port to PCs, smartphones, and tablets via a USB Type-C port. It supports USB Full-Speed and serial communication speeds up to 921.6Kbps, along with a ±15kV surge protector, delivering compatibility and stability. Its USB Plug and Play support makes it easy for users to install and remove, and the status indicator LED lets you visually confirm communication activity at a glance.
Multi-1/USB-C 232 supports the RS232 communication interface and is used across a wide range of applications, including R&D, office automation, and factory automation.
| Specifications | USB Specification Rev 2.0, Full-Speed |
| Connector | USB Type-C |
| Interface | RS232 (DB9) |
| Number of Ports | 1 |
| Maximum Communication Speed | Up to 921.6Kbps |
| Signal Lines | RS232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Cable Length / Diameter | 600mm / Φ3.5mm |
| Protection | ±15kV ESD protection |
| Flow Control | RTS/CTS, XON/XOFF |
| Controller | FT231XQ |
| Connector | DB9 Male |
| Supported OS | Android OS Windows 7 or later Linux Kernel 2.6 or later |
| Operating Temperature | -40 ~ 85℃ |
| Storage Temperature | -40 ~ 85℃ |
| Humidity | 5–90% non-condensing |
| Certifications | KC, CE |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
