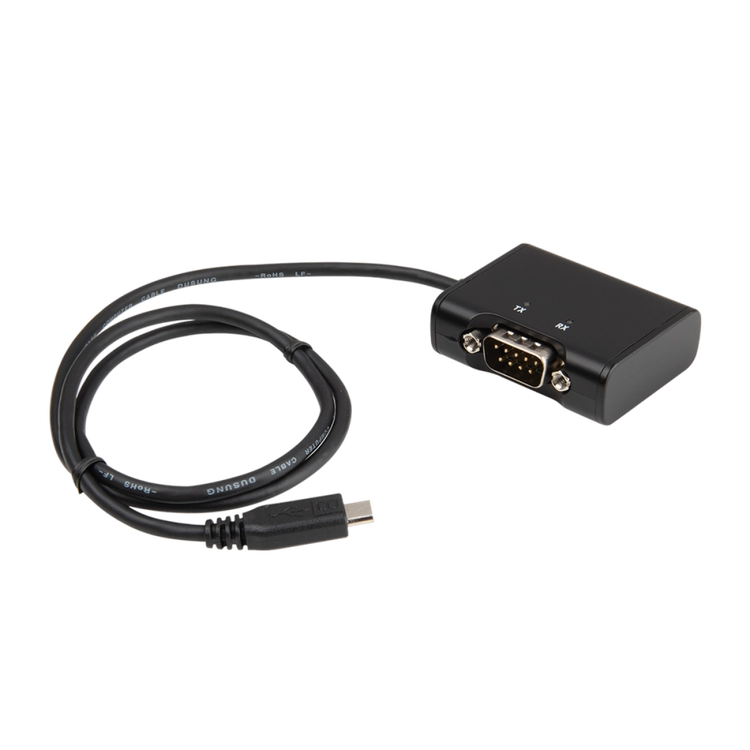

Multi-1/micro USB is a serial communication adapter that makes it easy and fast to add a serial communication port to a system via USB. It supports USB Full-Speed and serial communication speeds up to 921.6Kbps, along with a ±15kV surge protector, delivering compatibility and stability. The LED indicators for serial communication status complement the clean design while also serving as a useful debugging aid.
Multi-1/micro USB supports the RS232 communication interface and is used across a wide range of applications, including R&D, office automation, and factory automation.
| Specifications | USB Specification Rev 2.0, Full-Speed |
| Interface | RS232 |
| Number of Ports | 1 |
| Maximum Communication Speed | Up to 921.6Kbps |
| Signal Lines | TXD, RXD, DTR, RTS, CTS, DCD, DSR, GND, RI (+5V not available) |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |

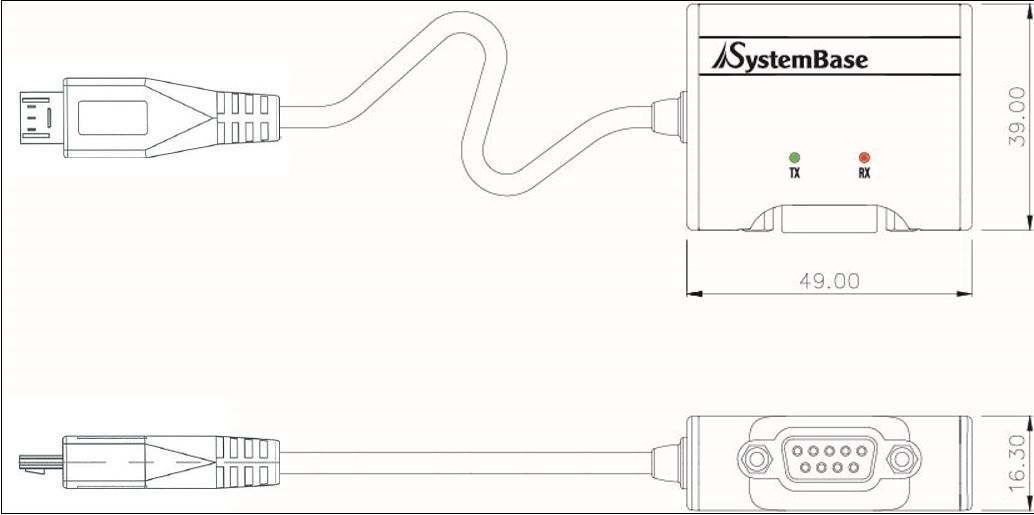

| Cable Length / Diameter | 600mm / Φ3.5mm |
| Protection | Self-protected against ±15kV electrical surges |
| Flow Control | RTS/CTS, XON/XOFF |
| Controller | FT231XQ |
| Connector | DB9 Male |
| Supported OS | Android OS 3.2 or later Windows 7 or later Linux Kernel 2.6 or later |
| Operating Temperature | -40 ~ 85℃ |
| Storage Temperature | -40 ~ 85℃ |
| Humidity | 5–95% non-condensing |
| Certifications | KC, CE |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
