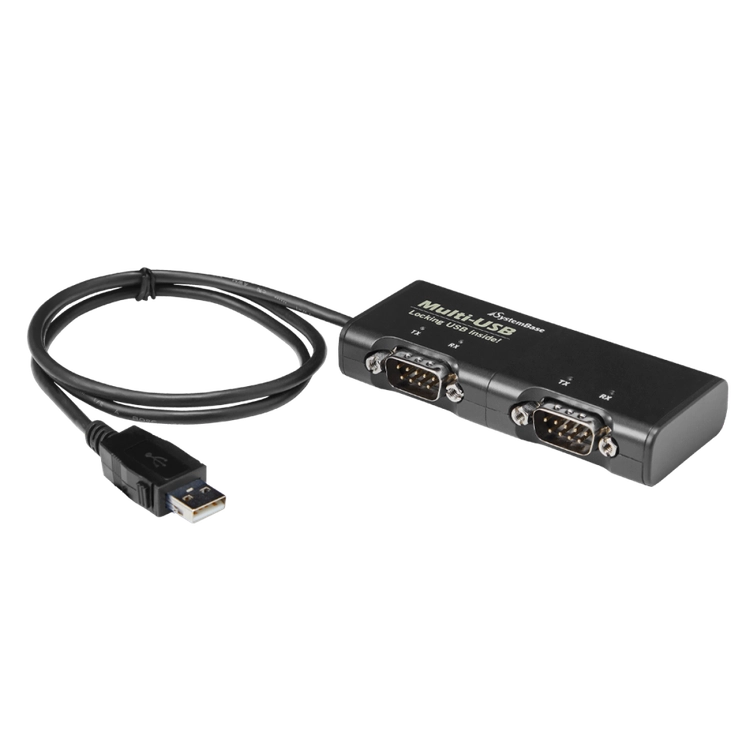

Multi-2/USB COMBO is a serial communication adapter that makes it easy and fast to add serial communication ports to a system via USB. It supports USB Hi-Speed and serial communication speeds up to 921.6Kbps, along with a ±15kV surge protector, delivering compatibility and stability. The LED indicators for serial communication status complement the clean design while also serving as a useful debugging aid.
Multi-2/USB COMBO is used across a wide range of applications, including R&D, office automation, and factory automation.
| Specifications | USB Specification Rev 2.0, High-Speed |
| Interface | RS422/485(combo) |
| Number of Ports | 2 |
| Maximum Communication Speed | Up to 921.6Kbps |

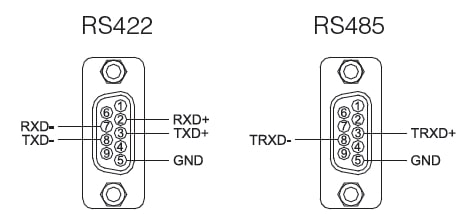

| Signal Lines | RS422 : TXD+, TXD-, RXD+, RXD-, RI(+5V not available) RS485 : TRXD+, TRXD- |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Cable Length / Diameter | 600mm / Φ3.5mm |
| Protection | Self-protected against ±15kV electrical surges |
| Controller | FT2232H |
| Board Connector | DB9 Male |
| Operating System | Windows 7 or later Windows Server 2008 or later Linux |
| Utility | TestView |
| Operating Temperature | -40 ~ 85℃ |
| Storage Temperature | -40 ~ 85℃ |
| Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, KC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
