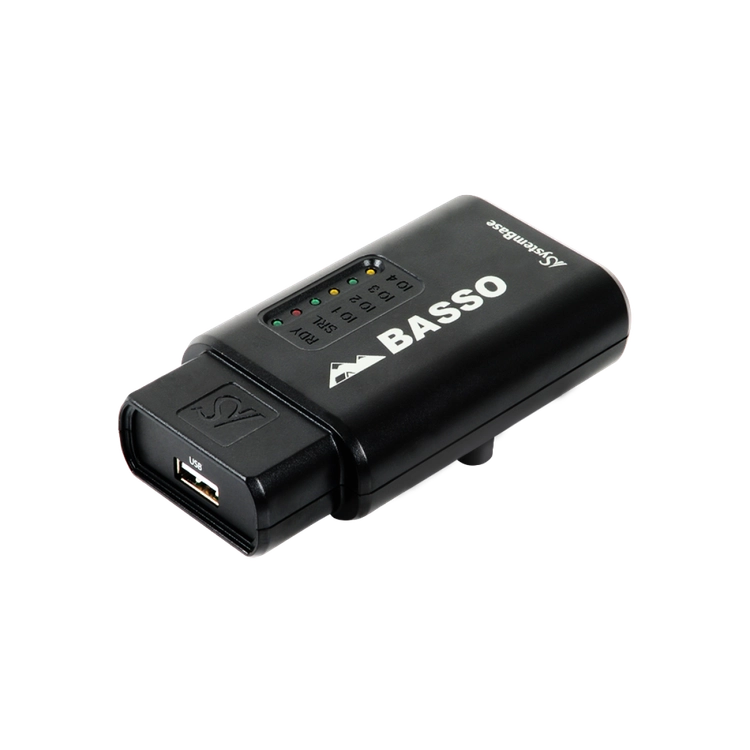

BASSO-1040UT/DIO is a multifunctional product that converts digital input and output devices used by connecting to contact switches, sensors, measuring instruments, or control devices widely used in industrial sites into USB 2.0 communication.
In industrial sites such as factories, digital input and output devices are used in various areas such as communication with PLCs and the control and measurement of machines and facilities through PLCs. BASSO-1040UT/DIO is a multifunctional device equipped with the general-purpose USB 2.0 standard and Modbus protocol, providing reliable communication functions for various user environments.
Connected to a USB port, it enables remote sensors and measuring devices to be easily used for communication, control, and monitoring.
Designed with the characteristics of unstable industrial environments in mind, BASSO-1040UT/DIO applies protection measures against electrical shocks such as overvoltage entering through the digital input/output and USB ports. By using highly reliable components, it provides both excellent reliability and high performance.
A free utility program is provided for use with BASSO-1040UT/DIO.
BASSO-IO Config : A simple Windows configuration utility that provides easy and convenient configuration functions.
| Interface | USB 2.0 |
| Protocol | Modbus Serial |

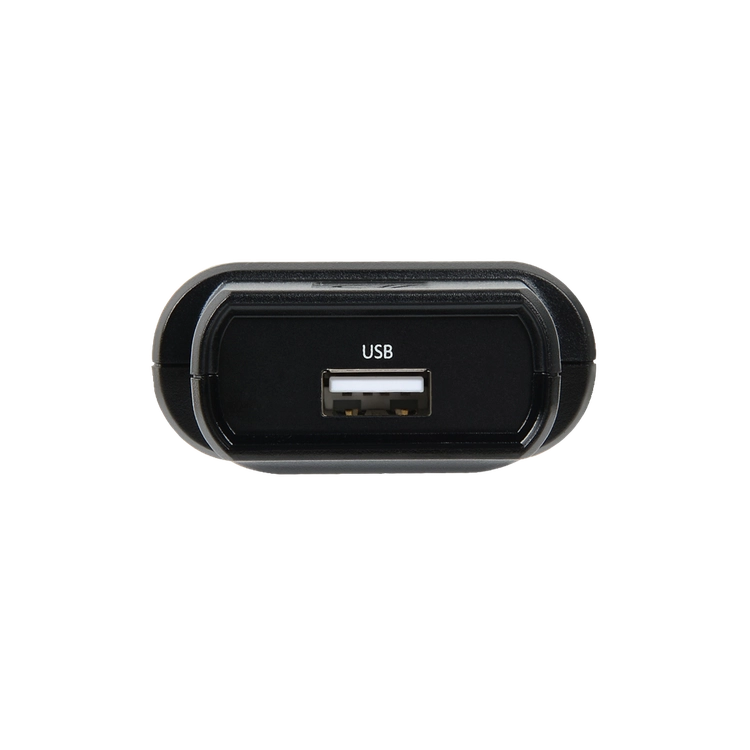

| Connector | USB Type A |
| Cable Length / Diameter | 1200mm / Φ4.8mm |
| I/O Select | Selectable 2DI + 2DO, 4DI, or 4DO (software configuration) |

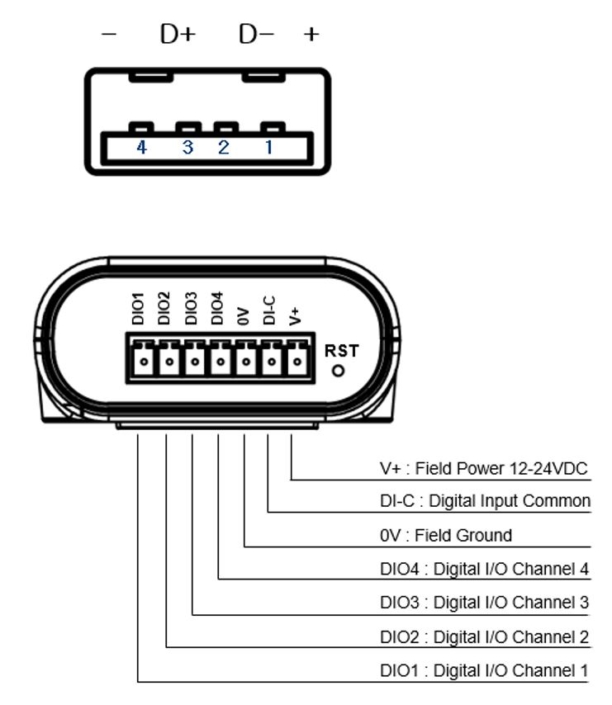

| Digital Input | 4 Channels (Wet Contact) |
| Digital Input Mode | DI or Event Counter (1kHz) |
| Digital Output | 4 Channels (Sink) |
| Digital Output Mode | DO or Pulse Output (500Hz) |
| Output Current | 500mA per Channel |
| Isolation | 1500Vrms for 1 Minute |

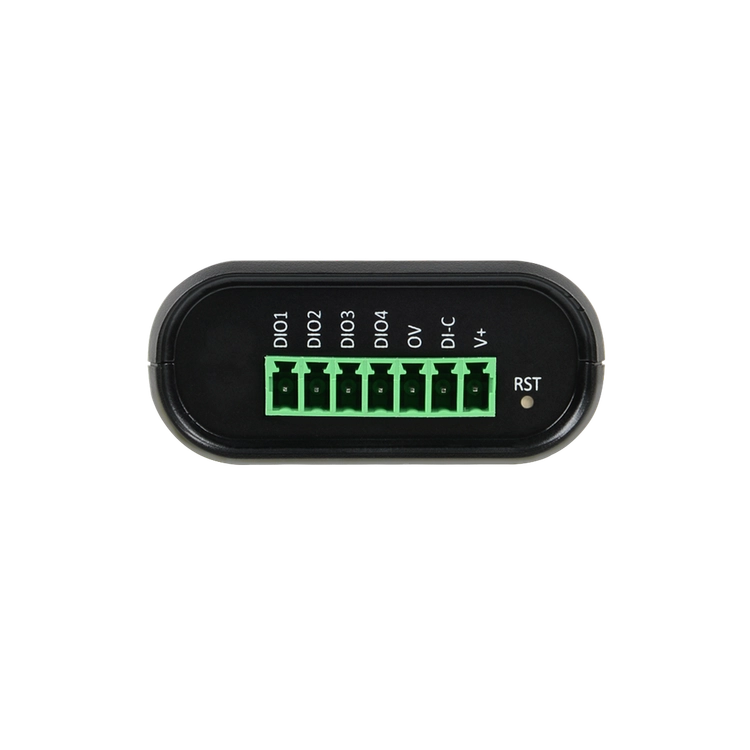

| Operating Power | 12 ~ 24V (Terminal Block) |
| LED | RDY(Green), SRL(Red), DIO1&3(Green), DIO2&4(Yellow) |
| Power | USB Bus Power |

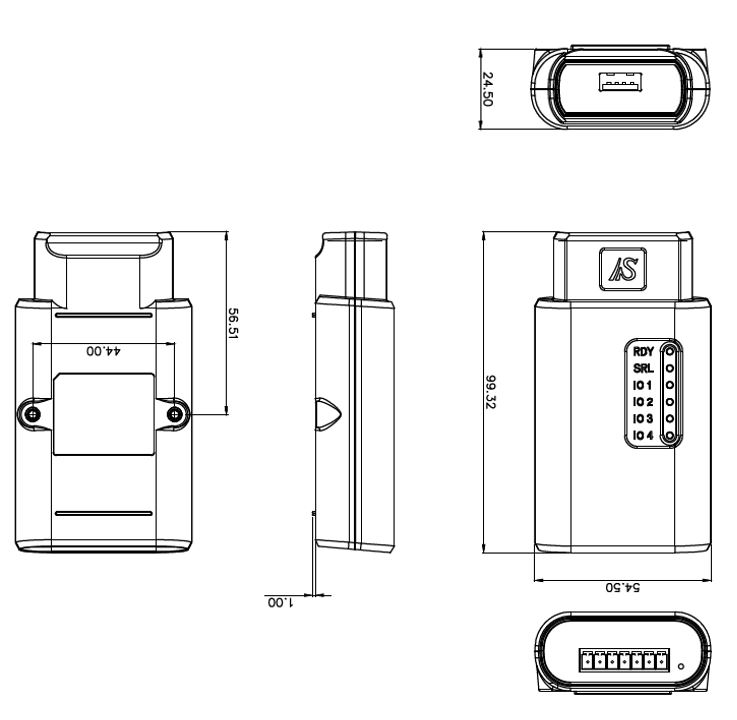

| Dimensions | 102.5(W) x 54.5(L) x 24.5(H) mm |
| Weight | 68g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 95% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
