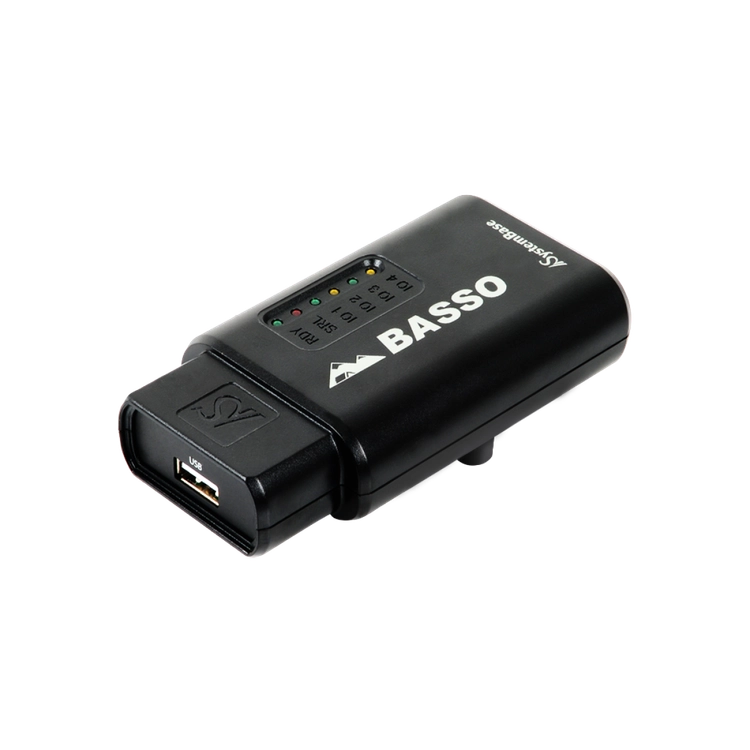

BASSO-1040UT/AI is an Analog Input to USB Converter that receives voltage and current values from analog sensor data such as temperature and pressure used in industrial sites and converts them to a USB interface.
In industrial sites such as factories, various analog data is generated for monitoring, measurement, and control, and various types of communication equipment are required to collect and transmit this data. BASSO-1040UT/AI is equipped with a USB interface and Modbus Serial protocol, providing a stable and reliable data acquisition environment tailored to user environments.
Connected to a USB port, it enables users to easily collect data from various remote analog sensors and measuring devices, and can be used in various industrial automation environments such as monitoring, control, and data logging.
Designed with the characteristics of unstable industrial environments in mind, BASSO-1040UT/AI is designed to protect the device from overvoltage and electrical noise entering through the analog input and USB ports. It also uses highly reliable components to ensure stable long-term operation.
A free utility program is provided for use with BASSO-1040UT/AI.
BASSO-IO Config : A simple Windows configuration utility that allows users to easily and conveniently configure analog input settings and communication environments.
| Interface | USB 2.0 |
| Protocol | Modbus Serial |

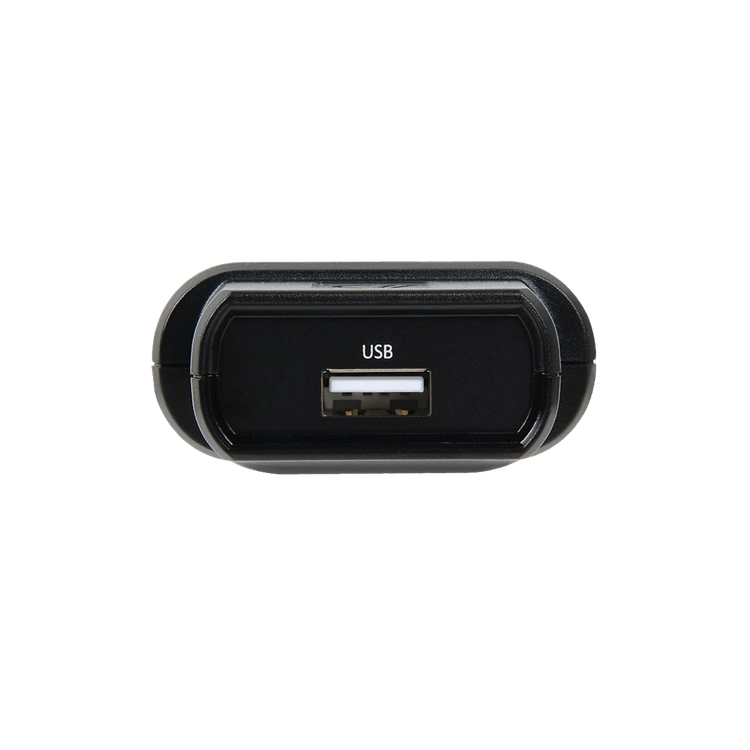

| Connector | Type A |
| Cable Length / Diameter | 1200mm / Φ4.8mm |

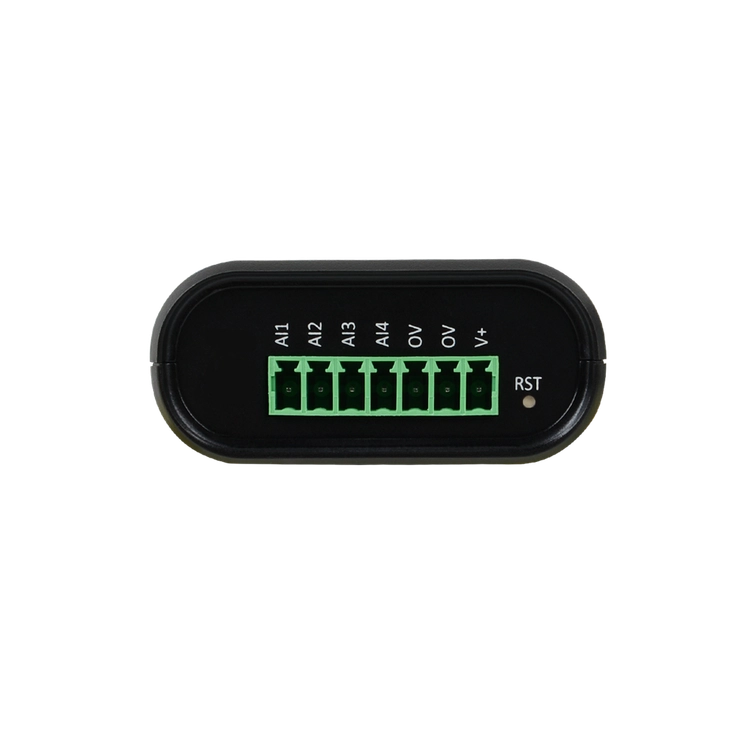

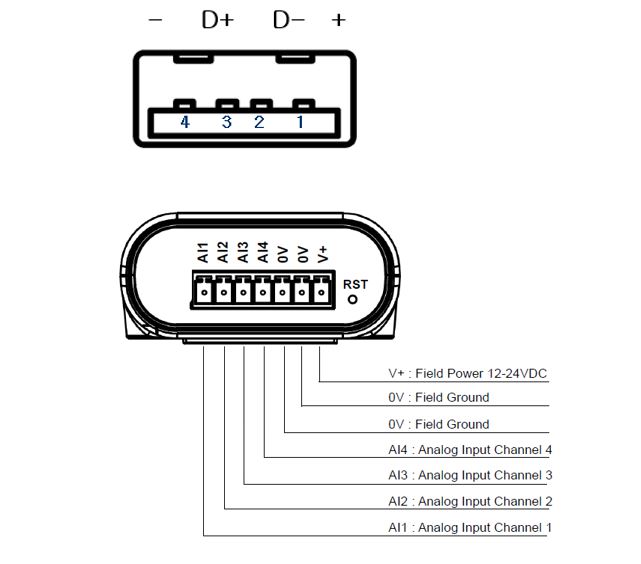

| Analog Input | 4 Channels (Single Ended) |
| Resolution | 16 bits |
| Sampling Rate | 100Hz |
| Input Mode | Selectable 4~20mA or 0~10VDC (software configuration) |
| Input Voltage Range | 0(2) ~ 10V |
| Input Current Range | 0(4) ~ 20mA |
| Operating Power | 12 ~ 24V (Terminal Block) |
| LED | RDY(Green), SRL(Red), AI1/3(Green), AI2/4(Yellow) |
| Power | USB Bus Power |

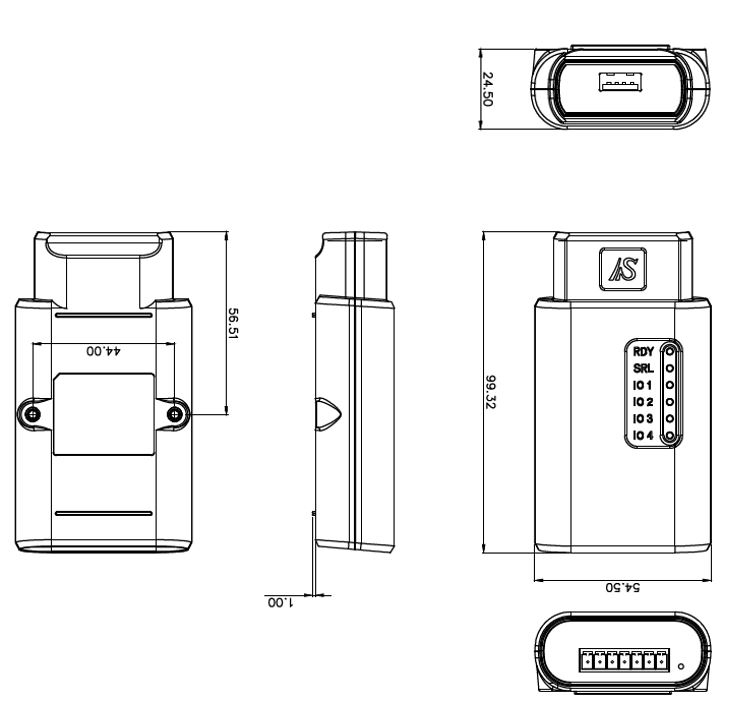

| Dimensions | 102.5(W) x 54.5(L) x 24.5(H) mm |
| Weight | 68g |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5 to 90% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
