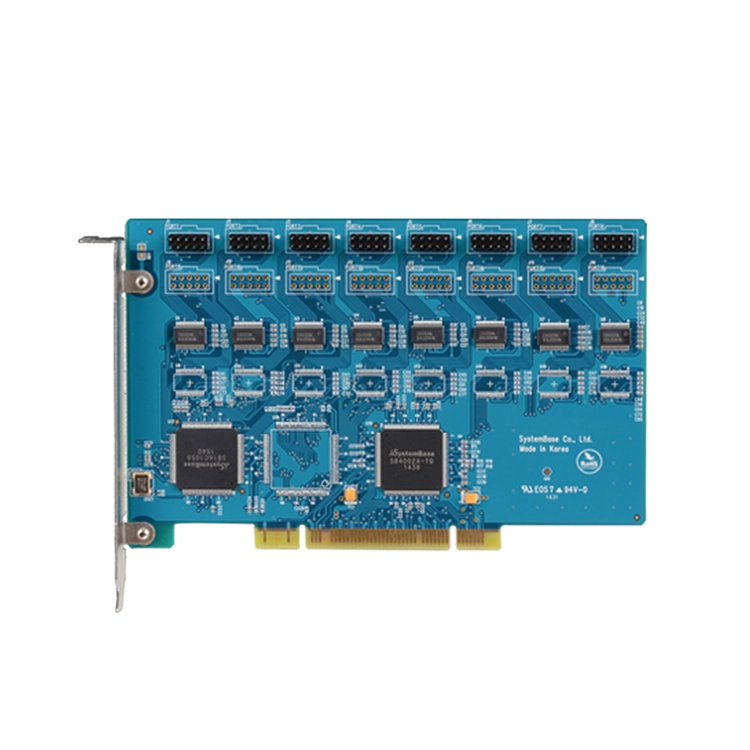

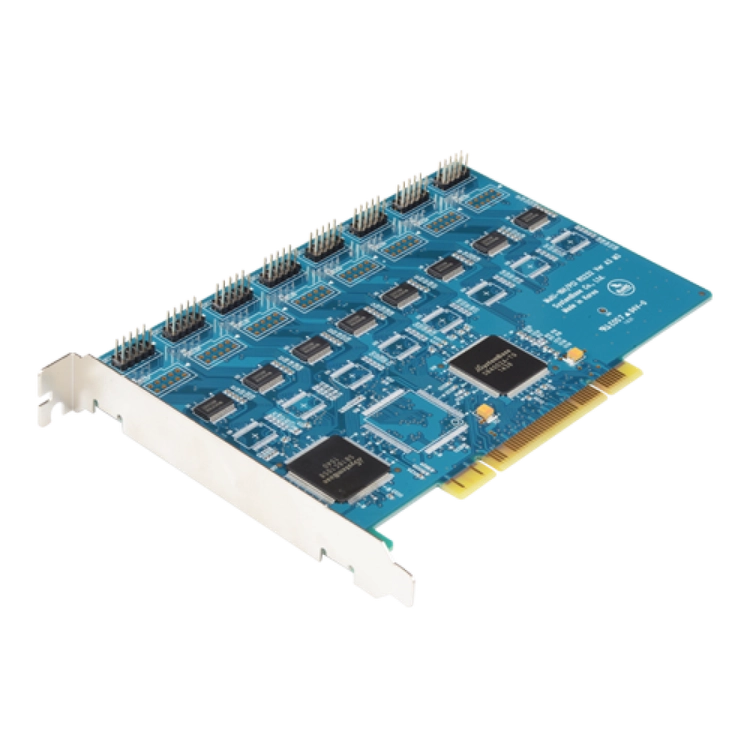

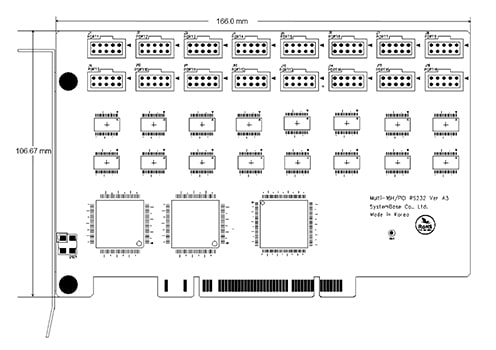

This serial card uses the PCI bus interface to expand the system with eight serial ports. The 8-port board converts the PCI bus signal into eight RS232 serial port signals, with each port providing eight RS232 signal lines (TXD, RXD, DSR, DTR, DCD, CTS, RTS, RI, GND). The board's core communication controllers are SystemBase's own SB16C1058 and SB4002A. These controllers feature a built-in 256-byte Tx/Rx FIFO, further enhancing the efficiency of the system in which the card is installed.
| Specifications | PCI Local Bus Specification Rev 2.3 |
| Interface | RS232 |
| Number of Ports | 8 |
| Maximum Communication Speed | Up to 921.6Kbps |
| Signal Lines | TXD, RXD, RTS, CTS, DTR, DSR, DCD |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Protection | Self-protected against ±15kV electrical surges |
| Flow Control | Hardware- or software-controlled RTS/CTS, XON/XOFF |
| PCI Bus Controller | SB4002A |
| UART Controller | SB16C1058 |

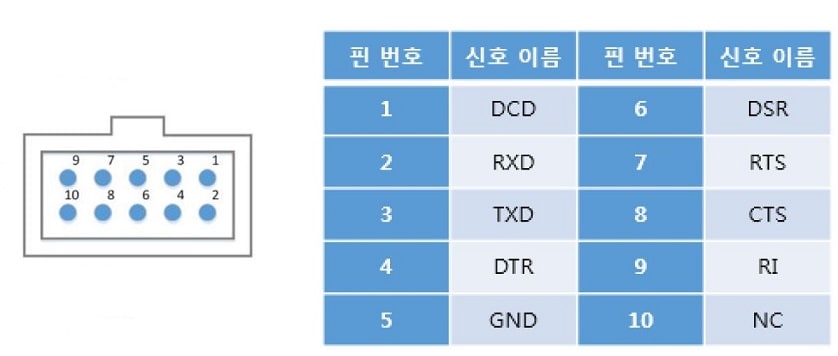

| Serial Connector | 10-pin header (2.54mm pitch, 2×5) |
| Operating System | Windows 7 or later Windows Server 2008 or later Linux (refer to the resource center manual for supported kernels) |
| Utility | TestView |
| Operating Temperature | -5 to 50℃ |
| Storage Temperature | -20 to 60℃ |
| Humidity | 20–80% non-condensing |
| Certifications | KC |
Clicking the Download button will take you to the resource center, where you can download related materials such as manuals, drivers, and utilities.
