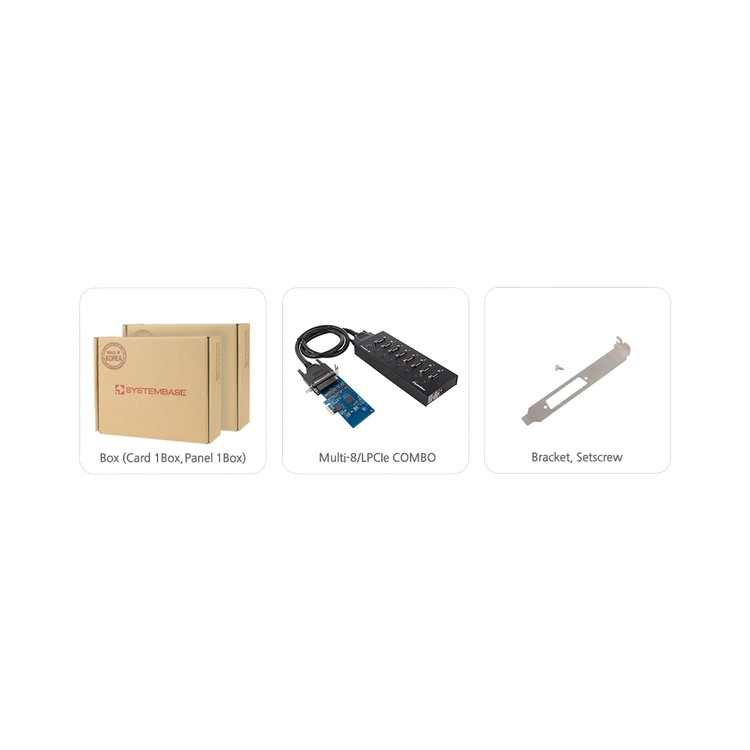

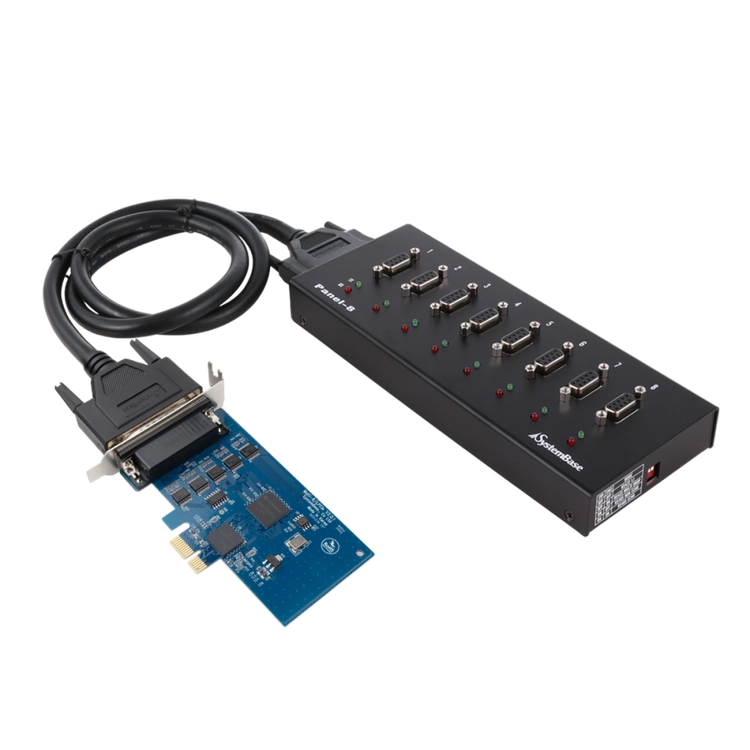

Multi-8/LPCIe is a serial communication card built around SB16C1058PCI, SystemBase's own high-performance semiconductor. The SB16C1058PCI is a PCI bus UART that integrates one of the largest transmit/receive FIFOs available, at 256 bytes, delivering overrun-free performance even at a communication speed of 921.6Kbps. It also has a range of built-in functions essential for serial communication, so no additional components are needed and the circuit can be built with a minimal parts count, resulting in high reliability. Multi-8/LPCIe is available in two models supporting RS232 and RS422/RS485 (Combo) interfaces, and is used across a wide range of applications, including office automation and factory automation.
Multi-8/LPCIe provides an Auto Toggling function for RS422/RS485 communication. This feature helps prevent electrical conflicts between output signals when configuring an RS422 multi-drop network or operating on an RS485 network. Since this feature is supported in both hardware and software, it can be enabled with a simple setting in the setup screen.

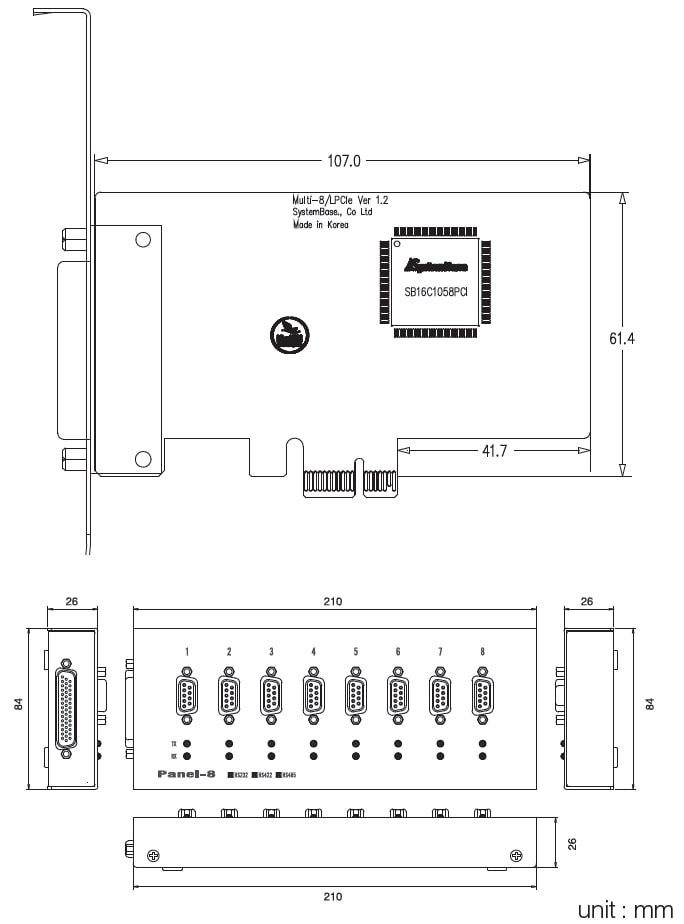

| Specifications | PCI Express Base Specification Rev 2.0 |
| Interface | RS422/RS485 (Combo) |
| Number of Ports | 8 |
| Maximum Communication Speed | Up to 921.6Kbps |
| Signal Lines | RS422: TXD+, TXD−, RXD+, RXD− RS485: TRXD+, TRXD− |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Protection | Self-protected against ±15kV electrical surges |
| Signal Conflict Prevention | Hardware- or software-controlled Auto Toggling |
| PCI Bus Controller | SB16C1058PCI |
| Board Connector | DB44 Male |
| Panel Connector | DB9 Female |
| Cable Length | 1000mm |
| Operating System | Windows 8 or later Windows Server 2012 or later Linux (see the resource center manual for supported kernels) |
| Utility | TestView |
| Operating Temperature | 0 to 50℃ |
| Storage Temperature | -20 to 80℃ |
| Humidity | 5–95% non-condensing |
| Certifications | KC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
