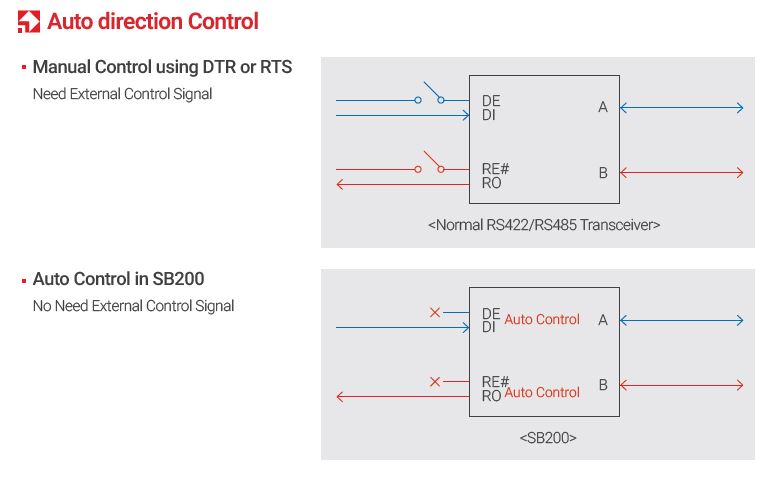

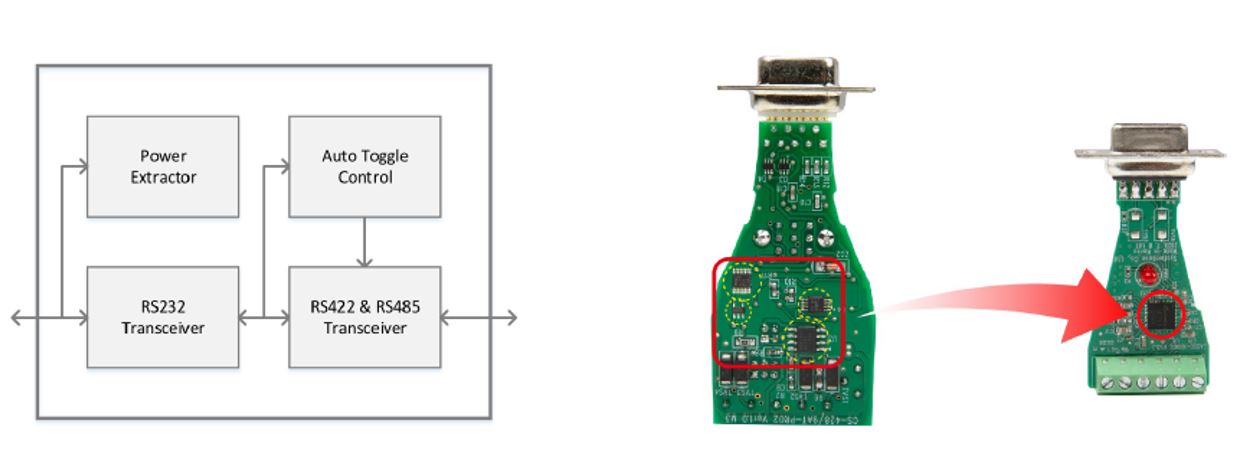

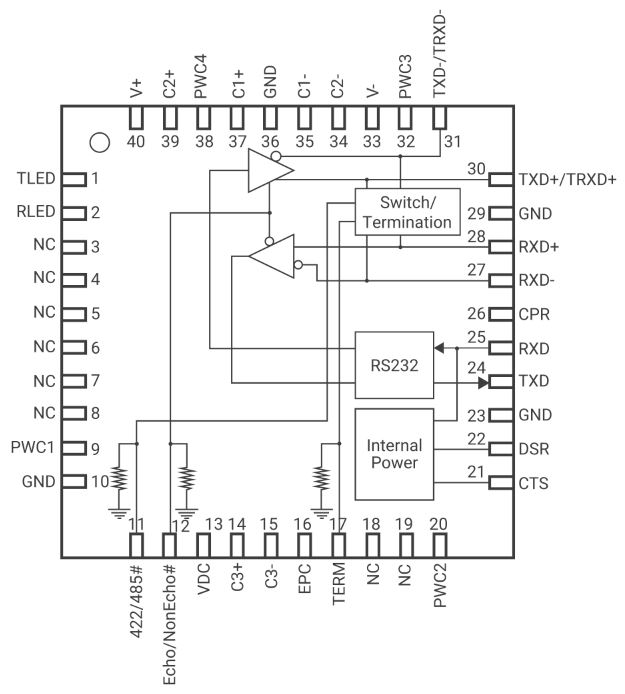

The serial converter chip SB200 consists of an RS232 transceiver, two RS422/RS485 transceivers, and a port power extractor. The SB200 converter chip features a Port Powered function that allows it to extract power from the RS232 signal, enabling the conversion of RS232 signals to RS422/RS485 without the need for an external power source. This allows for an easy application of the RS232 to RS422/485 conversion solution without additional software changes or modifications to the existing system configuration. By converting RS232, which has distance limitations, to RS422/485, it overcomes these distance constraints and can be conveniently utilized in other system integrations. In addition to its powerful performance, various functions can be easily controlled through external switches, allowing for the straightforward application of several features that can be used in real-world environments, such as RS422, RS485 Non-Echo, RS485 Echo, and Termination On/Off.
SB200 is the ultimate one-chip serial converter solution that converts RS232 signals to RS422/RS485 signals, supporting communication speeds of up to 1Mbps. RS422/RS485 consists of one driver and one receiver, supporting both full-duplex (4-wire) and half-duplex (2-wire) communication.

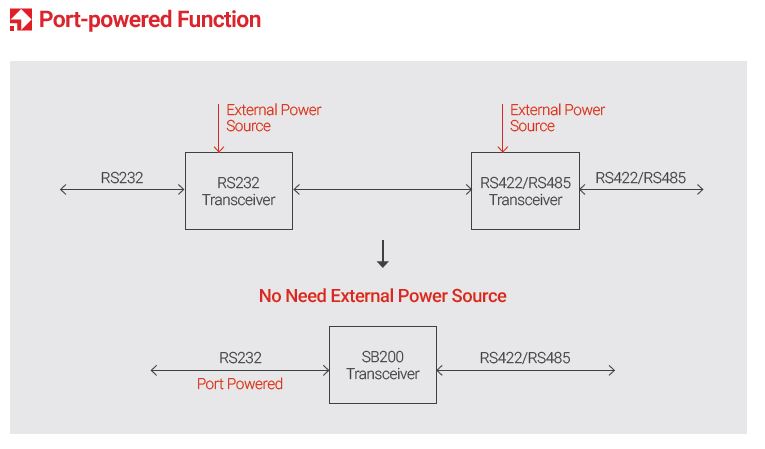

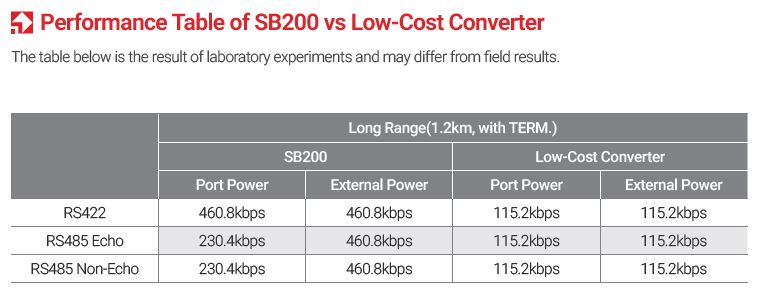

The SB200 converter chip is equipped with a Port Powered feature that allows it to extract power from RS232 signals, enabling the conversion of RS232 signals to RS422/RS485 without the need for external power. Additionally, in cases where it is difficult to extract power due to environmental characteristics, it can also be used by connecting an external power supply (9–12VDC).
| Features | RS232/RS422/RS485 Converting Transceiver Communication speed up to 1Mbps Built-in switchable 120Ω termination resistor Port Powered via TXD/RTS/DTR (no external power required) Supports external 9–12VDC power ESD-protected signal lines Built-in TXD/RXD LED driver 6mm x 6mm QFN-40pin package Operating temperature: -40 to 85℃ |
| RS232 Interface | Max data rate 1Mbps 1 driver, 1 receiver |
| RS422/RS485 Interface | Max data rate 1Mbps 1 driver, 1 receiver (half-duplex/full-duplex) Switchable internal termination resistor |
| Power Supply | Port Powered via TXD/RTS/DTR (no external power required) Supports external 9–12V power |
| ESD Protection | ±15kV HBM (serial interface pins) ±2kV HBM (other pins) ±4kV IEC 61000-4-2 Air Gap (serial interface pins) ±10kV IEC 61000-4-2 Contact (serial interface pins) |
| LED Function | Built-in TXD/RXD indicator LEDs |

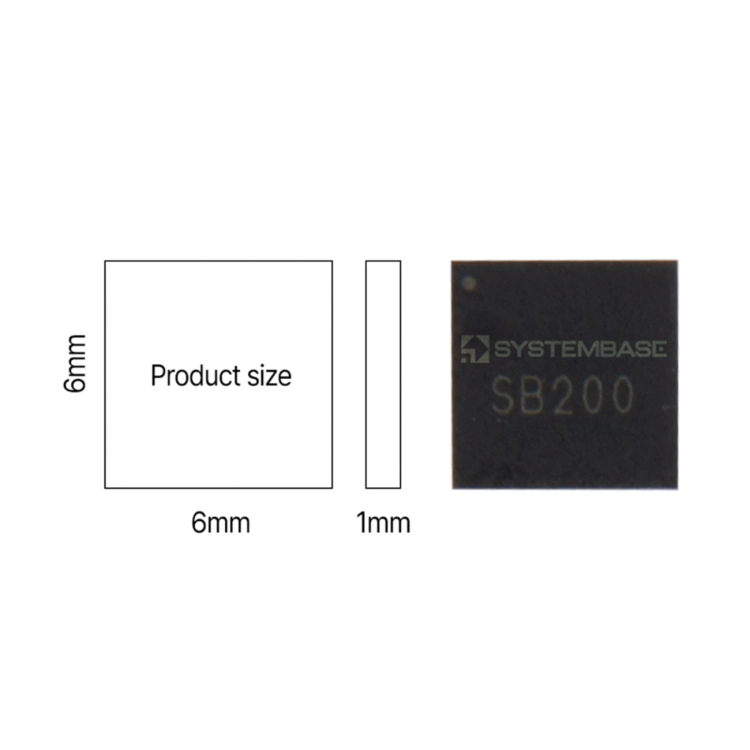

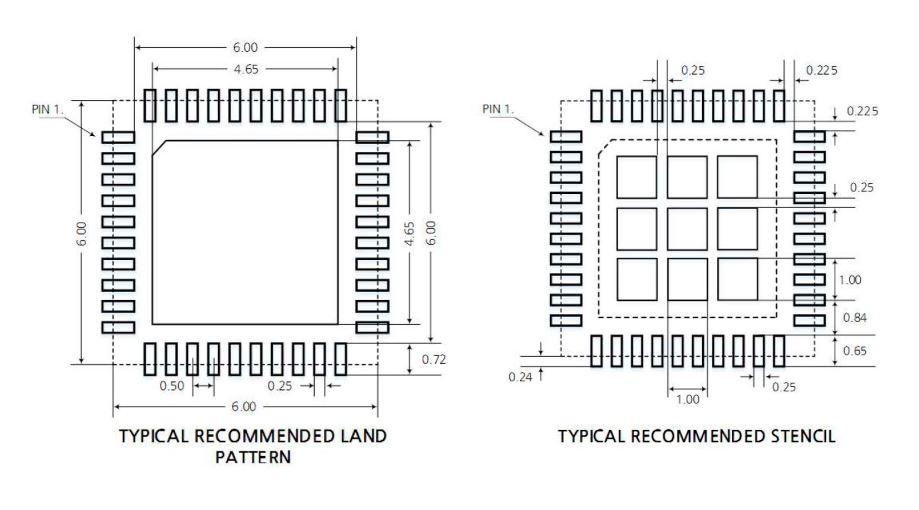

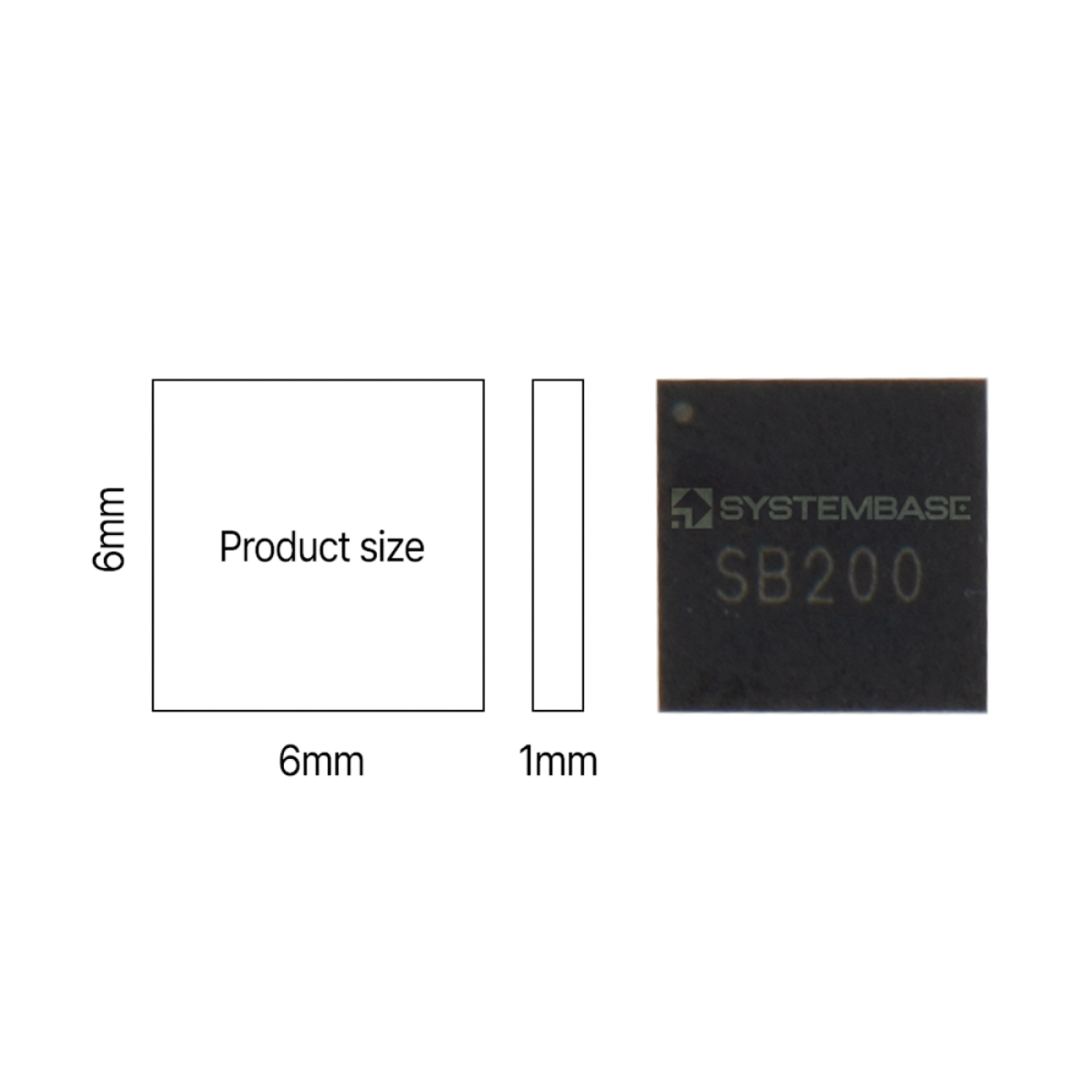

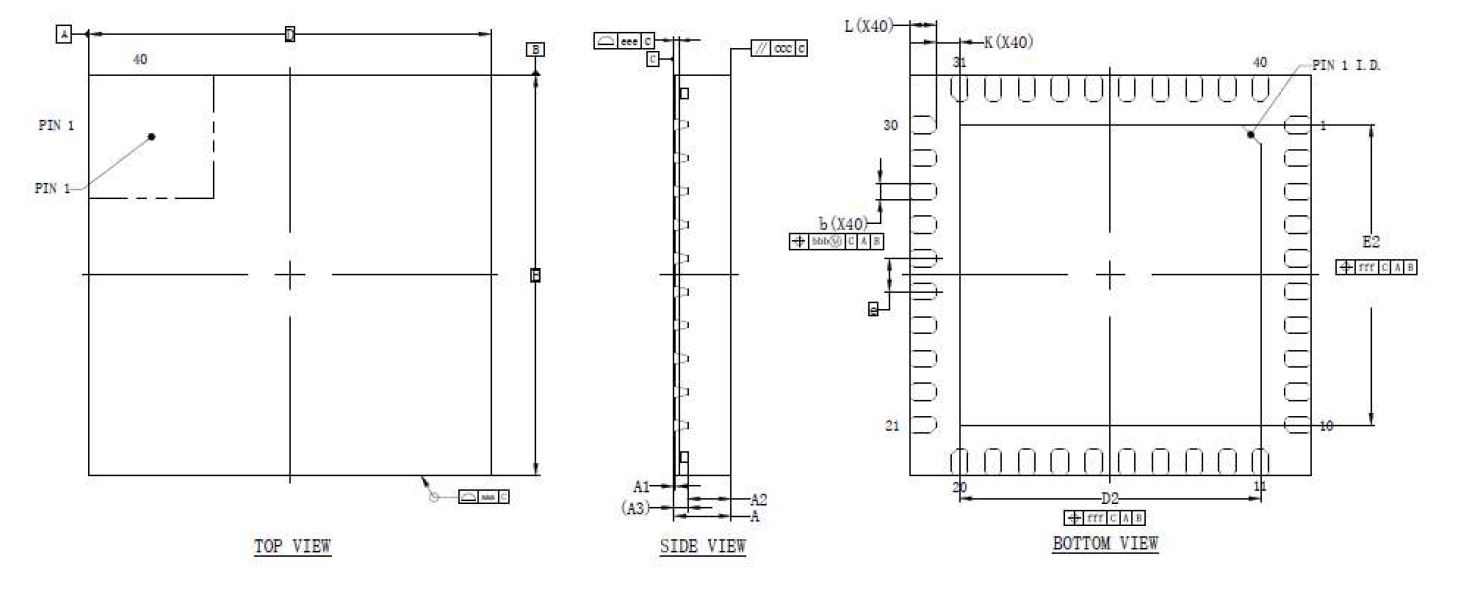

| Package | 6mm x 6mm QFN-40 (Quad Flat No-lead) |
| Application Areas | RS232 to RS422/RS485 conversion products RS232 distance extension Serial communication equipment and systems RS422/RS485 multi-drop (1:n) communication Isolated communication port products |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
