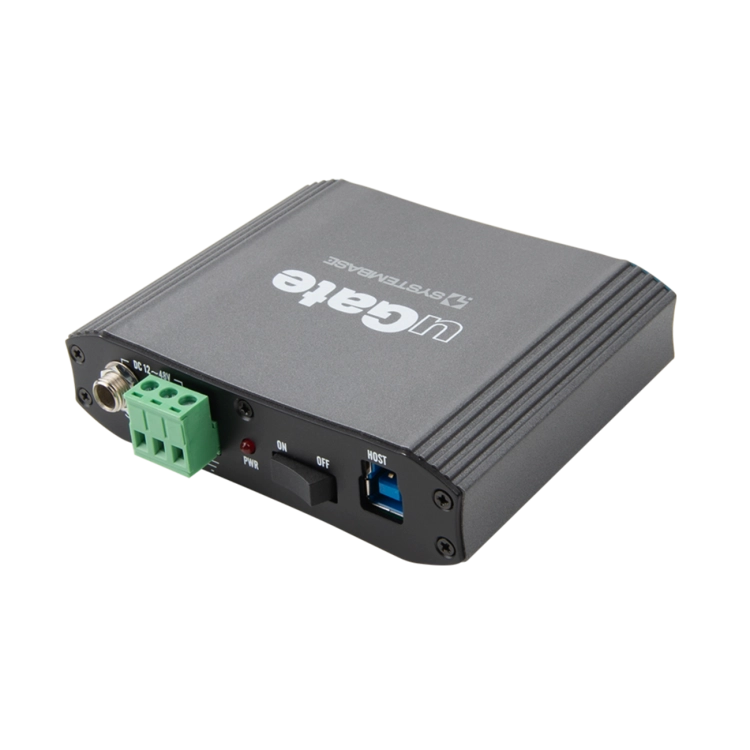

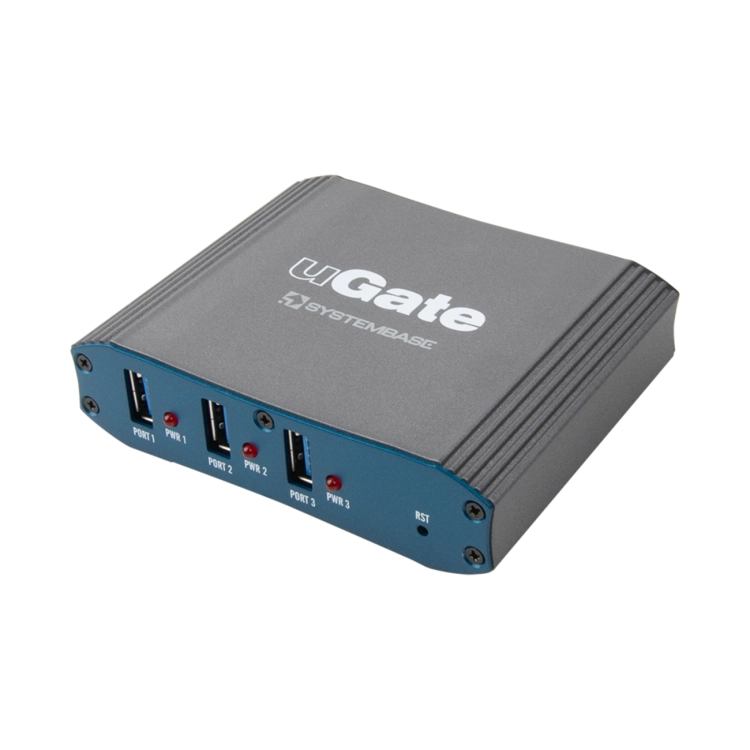

uGate-300S/Mo is an industrial 3-port USB hub that supports SuperSpeed of up to 5Gbps. It supports the USB 3.2 Gen 1×1 standard and provides per-port current monitoring and remote power control functions, allowing users to check and manage the status of connected USB devices in real time at industrial sites. It also provides industrial temperature specifications and powerful protection functions, enabling stable use in various industrial environments such as factory automation, inspection equipment, industrial PCs, kiosks, and data acquisition systems.
uGate-300S/Mo provides up to ±15kV ESD protection to protect equipment from static electricity and surges that occur in industrial sites. It also complies with KS C 9610-4-2, KS C 9610-4-4, and KS C 9610-4-5 standards, providing stable communication and high reliability even in industrial environments.
uGate-300S/Mo supports industrial operating temperatures from -40℃ to 85℃ and 5 to 90% non-condensing humidity environments. It also supports a wide-range DC 12V to 48V power input, allowing flexible application in various industrial equipment and control panel environments.
Through a dedicated monitoring utility, users can check per-port current consumption in real time and remotely control power ON/OFF for individual ports or all ports. This makes it easy to identify overloaded devices and build a stable USB device operating environment.
uGate-300S/Mo supports MTT (Multi Transaction Translator), rather than the STT method used in general USB hubs, providing excellent data processing performance even when multiple USB devices are connected simultaneously. It also offers high compatibility with USB 1.1 and USB 2.0 devices, making it suitable for various system environments.
| Standard | USB 3.2 Gen 1×1 (formerly USB 3.1 Gen 1 / USB 3.0), Super-Speed |
| Standards | USB 1.1 / 2.0 FS / 2.0 HS |

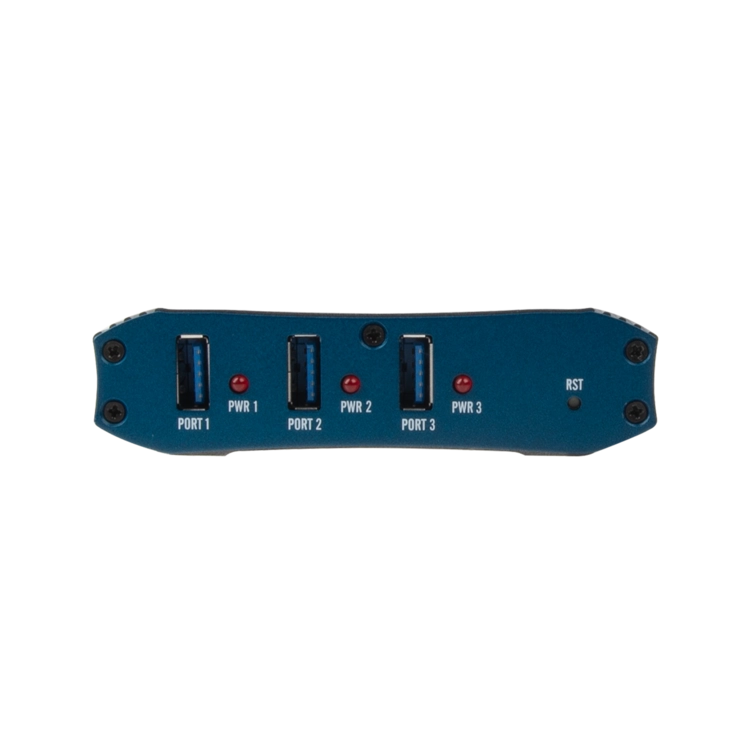

| Ports | 3 downstream ports / 1 upstream port |
| Interface (Upstream) | USB Type B |
| Interface (Downstream) | USB Type A |
| Data Rate | Max. 5Gbps |
| Protection | Max. ±15kV ESD |
| Protection Standard | KS C 9610-4-2 / KS C 9610-4-4 / KS C 9610-4-5 |
| Input Power Range | DC 12V to 48V |

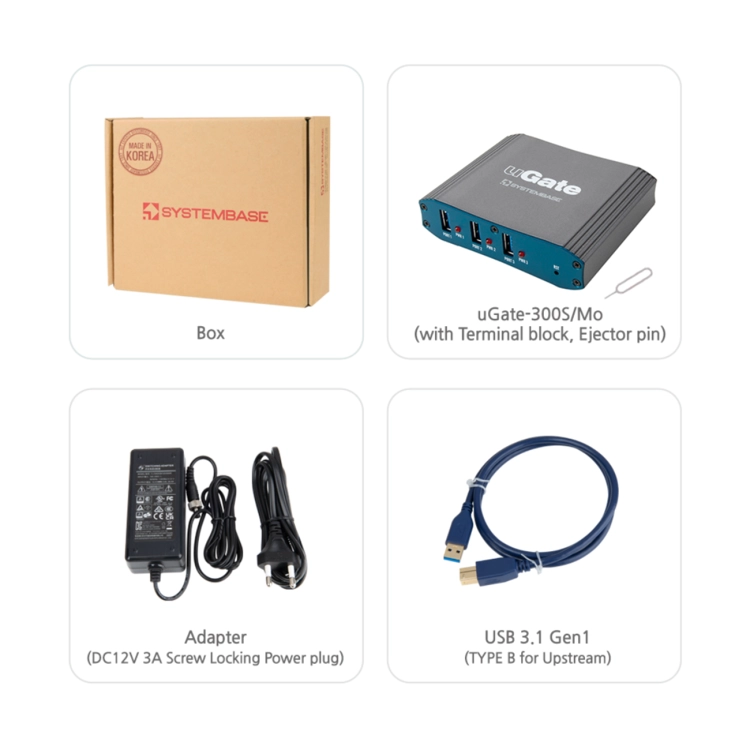

| Input Power Supplier | 12V / 3A AC-DC Adapter |
| MTBF | 181,019 hrs |

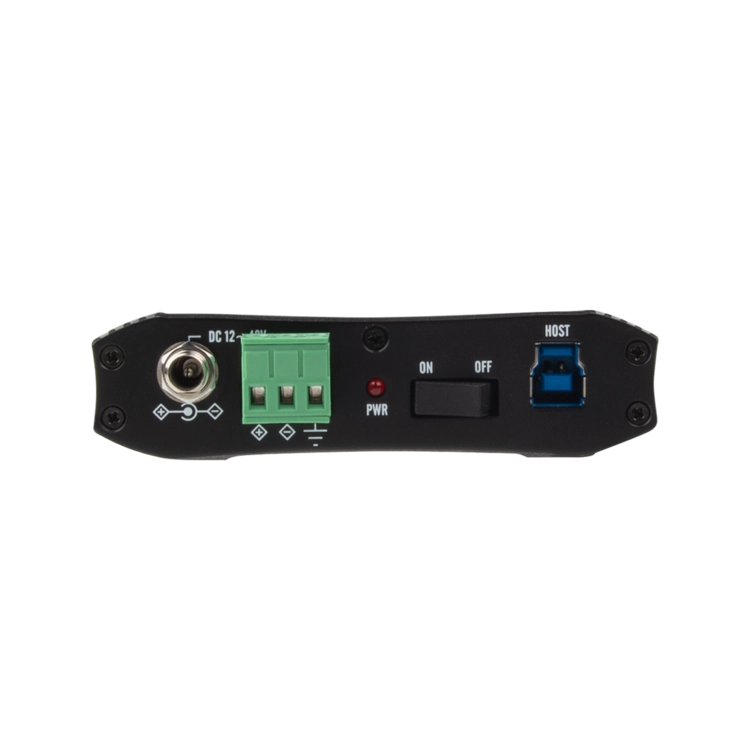

| Power Connector #1 | External Φ5.5mm / Internal Φ2.1mm |
| Power Connector #2 | Pitch 5.08mm, 3 Position Terminal Block |
| Power Supply | 5V/0.9A / Max. 5V/2A (Per Port) |
| BC v1.2 | Available on 1 port (no port distinction) |
| Dimensions | 101.8(W) x 90.6(L) x 26.7(H) mm |
| Weight | Gross Weight 619g / Product Weight 196g |
| Switch | Power On/Off |
| Reset Button | System Restart |
| LED | PWR(Red), PWR1/2/3(Red) |
| O/S Support | Windows 7 or later |
| Protocol | MODBUS ASCII / RTU |
| Operating Temperature | -40℃ to 85℃ |
| Humidity | 5 to 90% non-condensing |
| Certifications | KC |
Click the button below to visit the Resource Center, where you can download related materials such as manuals, drivers, and utilities.
