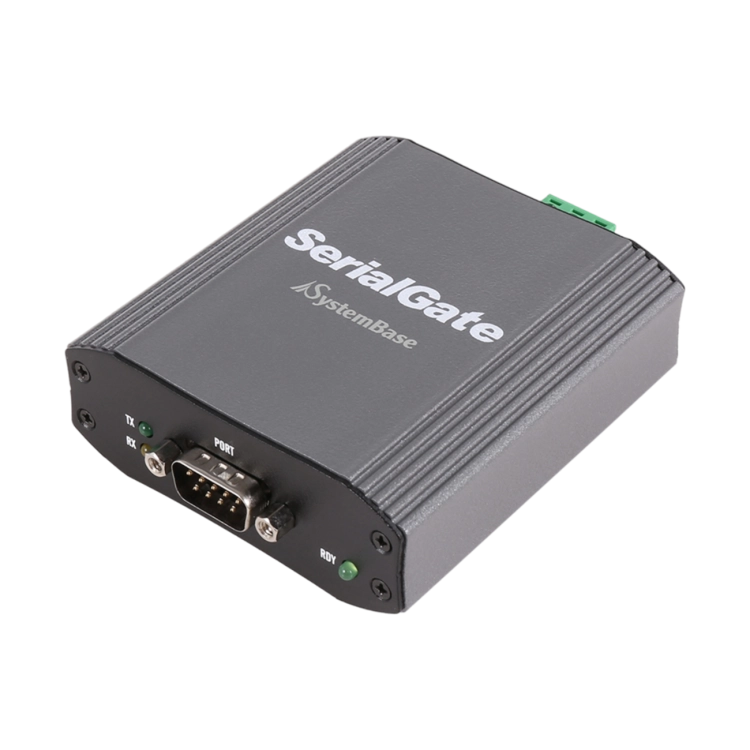

SG-2011DIL/ALL is an industrial 1-port device server that lets RS232, RS422, or RS485 serial equipment be used anytime, anywhere over an Ethernet network. It supports serial communication speeds of up to 921.6Kbps and includes built-in support for the Modbus RTU/ASCII protocol. Its COM Port Redirector also lets existing serial programs run over the network as-is, with no software modification required, making it well suited for remote control and data collection across applications such as POS systems, hospitals, factories, and building automation.
SG-2011DIL/ALL provides a dual power system suited to industrial conditions. It supports both terminal block and DC adapter power input, giving flexibility in how power is configured depending on the deployment, and its power connector features a lock-ring design that prevents accidental disconnection from vibration or impact. It also passes IEC-based temperature and humidity testing across an industrial -40℃ to 85℃ operating range, ensuring stable operation even in harsh industrial environments.
SG-2011DIL/ALL provides ESD protection that meets IEC 61000-4-2 Level 4, maintaining stable communication even under ±8kV contact discharge and ±15kV air discharge. It also incorporates protection circuitry that satisfies IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge), safeguarding equipment from electrical disturbances commonly encountered in industrial settings.
SystemBase provides a range of free utility programs for use with SG-2011DIL/ALL.
COM Port Redirector: Creates a virtual COM port over the network, allowing existing serial programs to run as-is.
PortView™: Monitors and diagnoses the communication status of serial ports in real time.
TestView™: Tests the communication performance and stability of serial and Ethernet ports.
SGConfig™: A management utility that makes it easy to configure the network and serial environment.
| Protocols | TCP, UDP, Telnet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL, Modbus TCP |
| LAN | 1x 10/100 Mbps RJ45 port (Auto-MDIX) |
| IP Settings | Static IP, DHCP |
| Number of Ports | 1 serial port (DB9) |
| Interface | RS232 / RS422 / RS485 |
| Maximum Communication Speed | Max. 921.6Kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Flow Control | RTS/CTS, XON/XOFF |
| OS | Embedded Linux |
| Management Tools | COM Port Redirector, PortView™, TestView™, SGConfig™, Web, SNMP |
| Configuration | Web, SSH, Telnet, SGConfig™ |
| Security | SSH |
| Supported OS | Windows 7 or later, Windows Server 2008 or later |

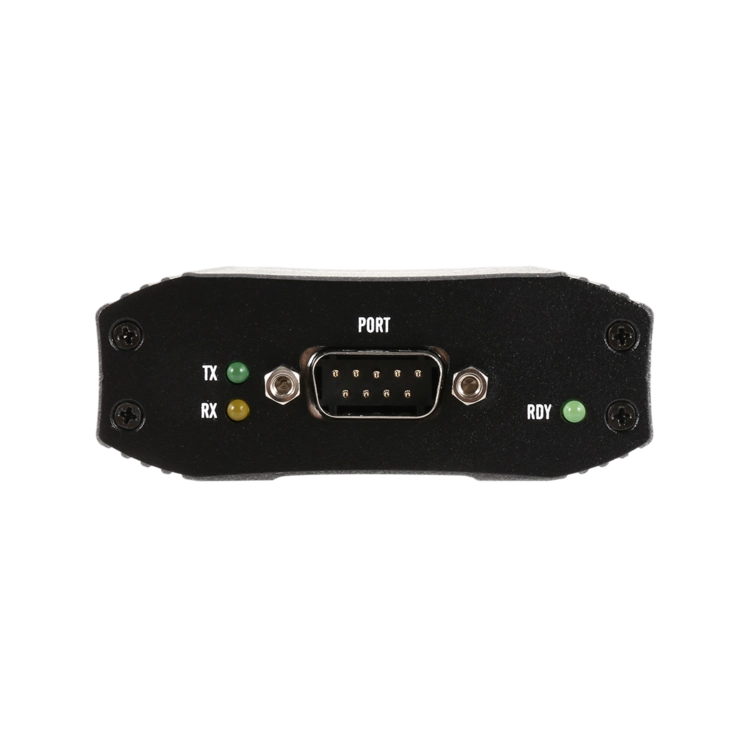

| LED | RDY (Ready), Serial (TX, RX) |

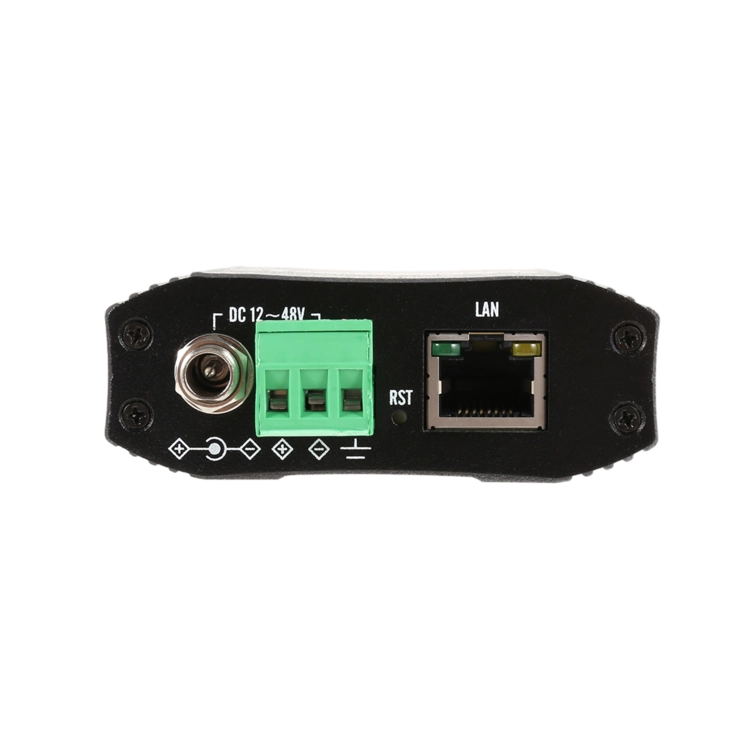

| Power Input | DC 12V–48V, terminal block (VCC/GND/FGND), 2W power consumption |
| MTBF | 181,019 hours |
| Dimensions | 75.8(W) × 83.6(L) × 28.4(H) mm |
| Weight | 163.8g (ALL), 159.4g (232) |
| Operating Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Humidity | 5–95% non-condensing |
| Certifications | KC |
Click the button below to go to the resource center, where you can download related materials such as manuals, drivers, and utilities.
